Description

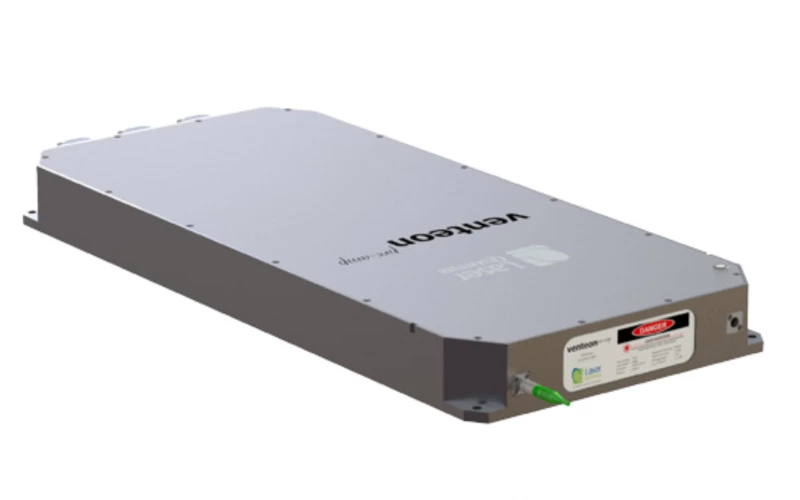

The Venteon Pre-Amp Modules are advanced femtosecond preamplifiers designed to efficiently amplify low-energy pulses (~10 pJ) to significantly higher power levels. Operating at a center wavelength of 1030 nm, these modules are ideal for use in conjunction with the Venteon dual laser system but are also suitable as standalone amplification solutions for other laser systems.

These pre-amp modules offer flexible configurations for energy scaling and pulse picking. The Pre-Amp 1 model allows for simple pulse energy scaling, while the Pre-Amp 2 incorporates a fiber-coupled pulse picker for reducing the fundamental repetition rate of the seed oscillator. The modules feature stabilized output power, ensuring reliable performance over long-term operation, and are equipped with interlock functions for enhanced safety.

With femtosecond pulse durations, high output power, and excellent beam quality, the Venteon Pre-Amp Modules are optimal for seeding high-power stages such as ROD-type fiber amplifiers, regenerative amplifiers, and slab amplifiers, where precision and stability are critical.

Venteon Pre-Amp Module: 1030 nm Amplification with >1 nJ Output and Sub-230 fs Pulse Duration

Visit the Novanta Photonics Store

Specifications

Center Wavelength: 1030 nm
Repetition Rate: Not Specified
Pulse Energy: 1.0E-6 mJ
Energy Stability (RMS): Not Specified
Pulse Duration: 10000 fs
Pointing Stability (RMS): Not Specified
Polarization: Vertical, Horizontal
Spatial Mode (M^2): <1.3
Amplification Scheme: Multi-Pass
Input Power: > 2 mW (@ 80 MHz)
Spectral Bandwidth (FWHM): > 8 nm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Center Wavelength: Optimized for 1030 nm, accommodating other wavelengths up to 1064 nm upon request.
  • Spectral Bandwidth: Greater than 8 nm for broad application coverage.
  • Pulse Energy: Pre-Amp 1 delivers 1 nJ, while Pre-Amp 2 provides more than 0.5 nJ.

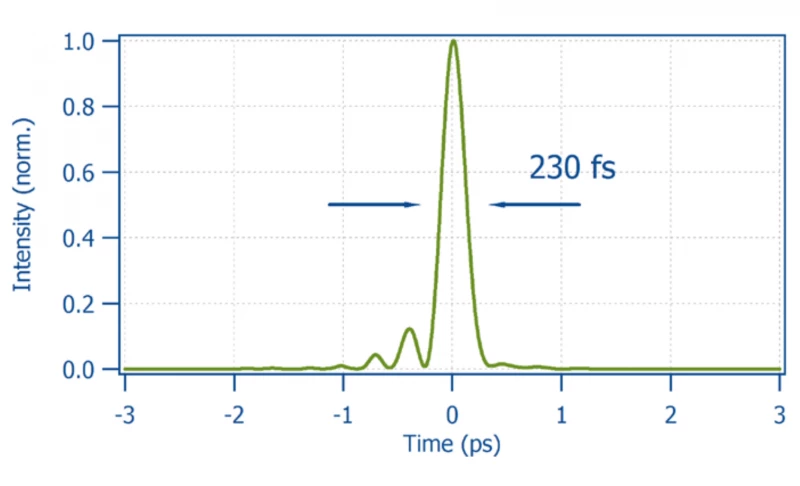

  • Pulse Duration: Outputs are stretched to greater than 10 ps; external compression can achieve durations as short as 230 fs.
  • Repetition Rate: Adjustable from 0.3 to 80 MHz, determined by the seed oscillator, allowing for flexible integration into various setups.
  • Average Output Power: Varies with the repetition rate, ensuring adaptable performance for different applications.

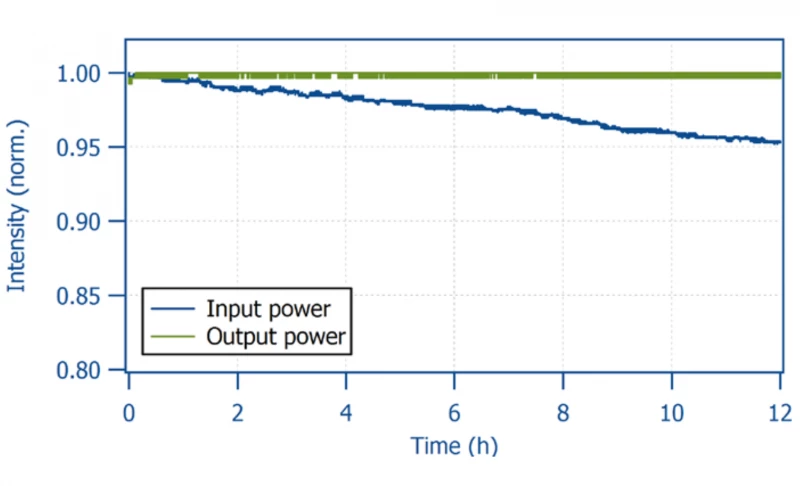

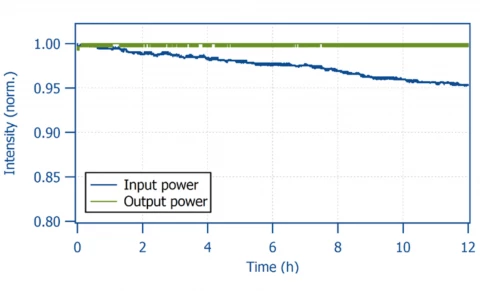

  • Output Power Stabilization: Features include interlock functions and output power stabilization technology for reliable, long-term operation.

Applications

  • Seeding High-Power Laser Stages: Suitable for ROD-type fiber amplifiers, regenerative amplifiers, and slab amplifiers which require high-quality seed pulses.
  • Spectroscopy: Enhanced pulse energy and control make these modules ideal for different spectroscopy techniques requiring narrowband light sources.
  • Materials Science: Used in experiments involving material characterization and modification where precise laser control and high power are necessary.
  • Biomedical Imaging: The modules' ability to provide stable and controlled amplification makes them suitable for advanced imaging techniques such as multiphoton microscopy.
  • Optical Metrology: Utilized in precision measurement setups where stable and consistent laser output is critical for accurate data collection.
  • Microfabrication: Their precision and power stability are beneficial for applications in micromachining and microfabrication, where fine control over laser parameters can significantly affect the quality and precision of the end products.
  • Research and Development: The modules are used in various R&D applications where experimentation requires flexibility in pulse energy and duration.

Frequently Asked Questions

What is the venteon pre-amp module used for?
The venteon pre-amp module is used for the amplification of low energy pulses to higher power levels, specifically the narrowband 1030 nm output of the venteon dual laser system.
Can the pre-amp module be used with other laser systems?
Yes, the alignment-free preamplifier modules can also be used as an independent amplification module for other laser systems.
What is the difference between pre-amp 1 and pre-amp 2?
The different versions of the venteon pre-amp modules allow for a simple scaling of the pulse energy (pre-amp 1) and a reduction of the fundamental repetition rate of the seed oscillator using a fibre coupled pulse picker directly implemented within the amplifier module (pre-amp 2).
What kind of amplifiers is the venteon pre-amp module best suited for?
The venteon pre-amp modules are best suited for seeding high power stages such as ROD-Type fibre amplifiers, regenerative amplifiers or slab amplifiers.
Does the control electronics contain output power stabilisation technology?
Yes, the control electronics contain several interlock functions as well as output power stabilisation technology to ensure reliable long term operation.

Got more questions? Use the inquiry form to ask the supplier directly.
