INDYLIT 10 SH Industrial Femtosecond Laser
Description
Indylit 10 SH is high energy air-cooled laser suitable for a variety of ultrafast applications.

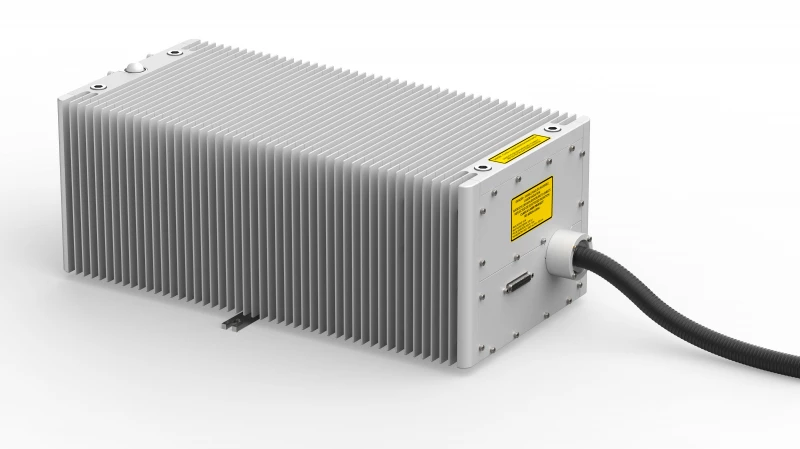

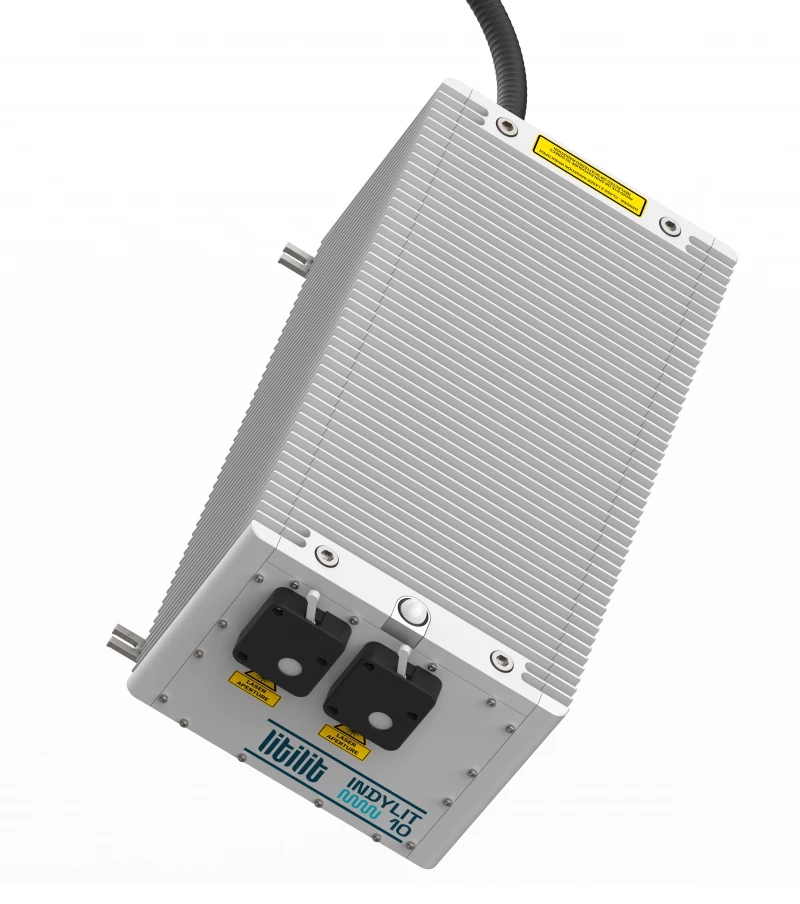

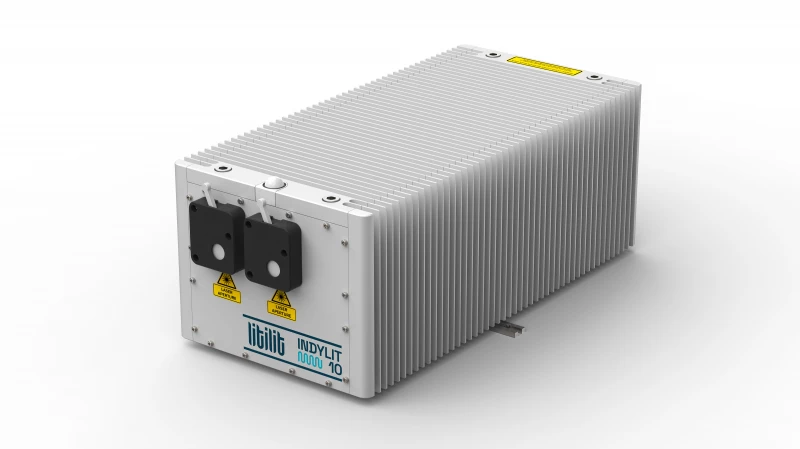

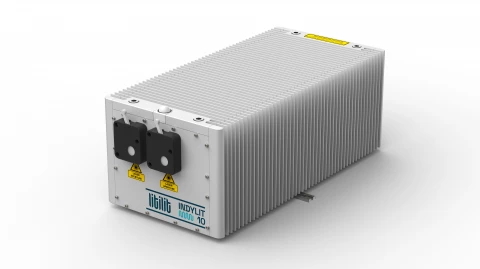

The laser head features an entirely passively-cooled design (patent pending), ensuring high stability of the optical parameters such as pulse duration, beam pointing and power.
Its mechanical construction can withstand almost everything you can throw at it, making Indylit a new kind of industrial femtosecond technology.
Build-in second harmonics (SH) module provides wavelength extension enabling even more different material processing applications.
INDYLIT 10 SH Industrial Femtosecond Laser
Specifications |
|
|---|---|
| Center Wavelength: | 515 nm |
| Repetition Rate: | 80-1000kHz |
| Pulse Energy: | 0.06 mJ |
| Energy Stability (RMS): | 2 % |
| Pulse Duration: | < 450 fs |
| Pointing Stability (RMS): | 50 urad |
| Polarization: | Horizontal |
| Spatial Mode (M^2): | <1.2 |
| Amplification Scheme: | Not Specified |
| Average Power: | > 5 W @ 200 kHz |
| Max. Pulse Energy: | > 60 µJ @ 80 kHz |
| Internal Pulse Repetition Rate: | 80 kHz - 1 MHz |
| Triggering Mode: | Pulse picker control via TTL gate |
| Pulse Picker: | integrated |
| Pulse Duration With External Compression Module: | < 60 fs |
| Burst Length: | 1...16 pulses |
| Max. Energy In Burst: | > 200 µJ |
| Power Attenuation: | 100 - 0.1 % |
| Beam Circularity: | > 0.85 |
| Beam Diameter (1/e² Level): | 1.7 mm |
| Beam Divergence: | < 1 mrad |
| Operating Voltage: | 100 ... 240 v AC, 47 ... 63 Hz |
| Average Power Consumption (after Warm-up): | < 300 W |
| Operating Temperature: | 15 – 35 °C |
| Humidity: | non condensing |
| Transportation/storage Temperature: | -20 – +70 °C |
| Dimensions Laser Head (L X W X H): | 522 × 233 × 179 mm |

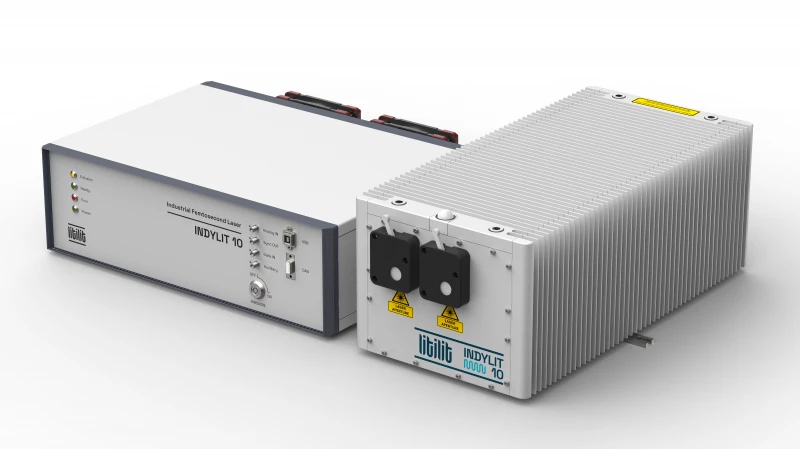

| Dimensions Control Unit (L X W X H): | 449 × 370 × 140 mm |
| Cooling Laser Head: | air (passive) |
Features
- High pulse energy and clean pulse shape
- Adjustable repetition rate, pulse duration, power
- Passively air cooled
- Maintenance-free & turn-key
- Extremely robust and stable
Applications
- Ophthalmology
- Semiconductor and electronics
- Materials microprocessing
- Display manufacturing
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Lithuania
-
Sold by:
-
On FindLight:
since 2022
Frequently Asked Questions
The central wavelength of the Indylit 10 laser is 1030 ± 2 nm.
The average power of the Indylit 10 SH laser is greater than 5W @ 200kHz.
Yes, the pulse duration of the Indylit 10 laser can be adjusted from 450 fs to 2 ps.
The Indylit 10 laser is passively air cooled, making it maintenance-free and turn-key.
The Indylit 10 laser is suitable for material microprocessing, ophthalmology, semiconductor and electronics, display manufacturing, and battery manufacturing.
