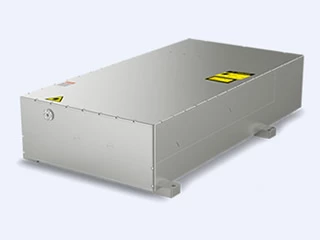

Olive High-Power Picosecond Ultrafast Laser Olive-1064-50
OVERVIEW
The Huaray-Olive series, High-Power Picosecond Ultra-fast Lasers (50W@1064nm) is a compact and powerful, hybrid fiber/free space amplified Ultra-fast laser. With pulses shorter than 10ps, this laser is ideal for fast, high precision micro-machining and material processing of any material. The robust laser combines the advantages of fiber laser technology with solid state diode pumped free space amplification. Compact and water-cooled, this laser is low maintenance and easy to integrate with other equipment.
SPECIFICATION
- Center Wavelength: 1064 nm
- Repetition Rate: 200 - 1000 kHz
- Pulse Energy: 0.1 mJ
- Energy Stability (RMS): 3 %
- Pulse Duration: 10000 fs
- Pointing Stability (RMS): 50 urad
- Polarization: Horizontal
- Spatial Mode (M^2): <1.3
- Amplification Scheme: MOPA
Applications
They are widely used in Micro-machining, Ceramic Processing, Glass Cutting, Medical Plastic Processing, Sapphire Processing, Steel Processing, Laser Deposition, Thin Film Patterning, Hard Materials Machining and so on.
KEY FEATURES
- <10 picosecond pulses
- Long term power stability <3%rms
- High beam quality with M2≤1.3
- Serial Interface
