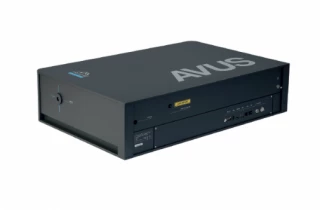

AVUS Optical Parametric Amplifier
A·P·E-Applied Physics & Electronics, Inc.
AVUS is the very latest Optical Parametric Amplifier (OPA) providing widely tunable high-energy pulses. It is ideal for use with 1 μm femtosecond lasers and opens doors for up to 50 W pump power. The user-friendly and maintenance-free unit is air-cooled and constructed with a monolithic case design for long-term thermal stability, ...
  • Widest Tuning Range: 200 - 10000 nm
  • Signal Polarization: Horizontal, Vertical
  • Core Tuning Range: 630 - 2600 nm
  • Peak Efficiency (S+I): 12 %
  • Idler Polarization: Vertical, Horizontal
Data Sheet
PGx11 Series optical parametric devices by EKSPLA.PGx11 series optical parametric devices employ advanced design concepts in order to produce broadly tunable picosecond pulses with nearly fourier-transform limited linewidth and low divergence. high brightness output beam makes the PGx11 seriesunits an excellent choice for ...
  • Widest Tuning Range: 193 - 16000 nm
  • Signal Polarization: Horizontal, Vertical
  • Core Tuning Range: 420 - 3350 nm
  • Peak Efficiency (S+I): - %
  • Idler Polarization: Vertical, Horizontal
Data Sheet
PGx03 Series optical parametric generators by EKSPLA.PGx03 series Optical Parametric Generators (OPG) are designed to be pumped by 1 KHz mode-locked lasers with 1 w average power. An excellent choice is the PL2210a series mode-locked picosecond laser from EKSPLA.
  • Widest Tuning Range: 210 - 16000 nm
  • Signal Polarization: Horizontal, Vertical
  • Core Tuning Range: 410 - 4450 nm
  • Peak Efficiency (S+I): - %
  • Idler Polarization: Vertical, Horizontal
  • ...
Data Sheet
(NOPA) by Light Conversion. ORPHEUS-N is a non-collinear optical parametric amplifier (NOPA) pumped by the PHAROS laser system. Depending on the ORPHEUS-N model, it has a built in second or third harmonic generator producing 515  nm or 343 nm pump.
  • Widest Tuning Range: 500 - 900 nm
  • Signal Polarization: Not Applicable
  • Core Tuning Range: 500 - 900 nm
  • Peak Efficiency (S+I): - %
  • Idler Polarization: Not Applicable
Data Sheet
ORPHEUS TWINS provides two outputs, independently tunable in the 630 nm –2600 nm range and pulse durations below 200 femtoseconds. the design of this OPA offers completely hands-free wavelength tuning and automatic signal/idler separation, also ensuring the same position and direction for all wavelengths. ORPHEUS TWINS integrates ...
  • Widest Tuning Range: 650 - 2600 nm
  • Signal Polarization: Horizontal, Vertical
  • Core Tuning Range: 650 - 2600 nm
  • Peak Efficiency (S+I): 12 %
  • Idler Polarization: Horizontal, Vertical
Data Sheet
ORPHEUS-Ps is a narrow bandwidth optical parametric amplifier of white light continuum, designed for PHAROS pump laser. This device is pumped by the picosecond pulses produced in SHBC-515 narrow bandwidth second harmonic generator, and seeded by white light continuum generated by femtosecond pulses. this enables to achieve very high ...
  • Widest Tuning Range: 315 - 2600 nm
  • Signal Polarization: Horizontal, Vertical
  • Core Tuning Range: 630 - 2600 nm
  • Peak Efficiency (S+I): 20 %
  • Idler Polarization: Vertical, Horizontal
Data Sheet
ORPHEUS-HP collinear OPA by Light Conversion.ORPHEUS-HP is a collinear optical parametric amplifier of white-light continuum pumped by PHAROS laser. The device is a modified version of the ORPHEUS OPa, with UV-VIS tuning range frequency mixers integrated into a thermally stabilized monolithic housing. ORPHEUS-HP also provides the ...
  • Widest Tuning Range: 190 - 20000 nm
  • Signal Polarization: Horizontal, Vertical
  • Core Tuning Range: 600 - 2600 nm
  • Peak Efficiency (S+I): 20 %
  • Idler Polarization: Vertical, Horizontal
Data Sheet
ORPHEUS collinear OPA by Light Conversion. ORPEHUS is a collinear optical parametric amplifier of white light continuum pumped by femtosecond Ytterbium based laser amplifiers. With the additional feature of being able to work at high repetition rates, OrPHeus maintains the best properties of TOPAS series amplifiers: high output pulse ...
  • Widest Tuning Range: 200 - 20000 nm
  • Signal Polarization: Horizontal, Vertical
  • Core Tuning Range: 600 - 2600 nm
  • Peak Efficiency (S+I): 12 %
  • Idler Polarization: Vertical, Horizontal
Data Sheet

Did You know?

Optical parametric amplifier (OPA), is a coherent light source that emits light of variable wavelengths generated by an optical parametric amplification process without optical cavity. The signal beam and the pump beam propagate through the crystal. Photons of the pump wave are then converted into lower-energy signal photons and idler photons; the photon energy of the idler wave is the difference between the photon energies of pump and signal waves, determined by phase matching condition. In an OPA, the input is two light beams, of frequency ωp and ω1. The OPA will make the ωp beam weaker, and amplify the ω1 beam, and also create a new beam at the frequency ω2: ωp=ω1+ω2. As an example of OPA, the incident pump pulse is at 800 nm (12500 cm−1), and the two outputs, signal and idler, are in the near-infrared region, the sum of the wavenumber of which is equal to 12500 cm−1.
