Blueback Spider - Based Laser Pulse Characterization Device

Blueback Spider - Based Laser Pulse Characterization Device

The Blueback Spider ultrafast laser pulse measurement system sets a new standard in real-time ultrashort laser pulse characterization, offering precise measurements crucial for ultrafast oscillators and amplifiers. ...

Sold by: RPMC Lasers, Inc. Ships from: United States
Specifications
Device Type: SPIDER
Measurable Pulse Width: 80 – 4000 fs
Wavelength Range: 1010 – 1060 nm
Input Polarization: Vertical
Repetition Rate: 1-200000 kHz

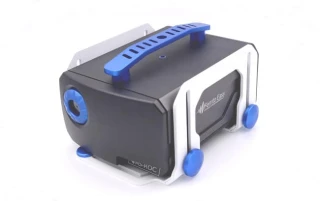

ROC | Compact Autocorrelator for Ultrafast Laser Pulse Measurement

ROC | Compact Autocorrelator for Ultrafast Laser Pulse Measurement

ROC stands for Row Optical Correlator. Based on a compact and robust inline setup, the ROC allows the measurement of single-shot autocorrelation traces. Specifically designed to offer the easiest user experience, ...

Sold by: Axiom Optics Ships from: United States
Specifications
Device Type: Autocorrelator
Measurable Pulse Width: 5 – 10 fs
Wavelength Range: 480 – 2100 nm
Input Polarization: Vertical
APE  peakDetect

APE peakDetect

peakDetect is ideal for verifying the performance of ultrashort pulse lasers - especially when focusing on peak power sensitive applications and integrated systems for microscopy, micro-machining, ...

Sold by: Applied Physics & Electronics, Inc. Ships from: United States
Specifications
Device Type: Peak Power Indicator
Measurable Pulse Width: 100 – 5000 fs
Wavelength Range: 700 – 1100 nm
Input Polarization: Any
Repetition Rate: 1 – 1000 kHz

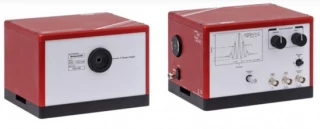

APE Carpe Microscopy Autocorrelator

APE Carpe Microscopy Autocorrelator

APE\'s Carpe is a handy option for reviewing the management of short laser pulses in an optical microscope system. The Carpe autocorrelator measures the pulse duration at both the sample location and the input ...

Sold by: Applied Physics & Electronics, Inc. Ships from: United States
Specifications
Device Type: Autocorrelator
Measurable Pulse Width: 50 – 30 fs
Wavelength Range: 700 – 2000 nm
Input Polarization: Horizontal
APE FC Spider VIS

APE FC Spider VIS

The FC Spider (Few Cycle Spider) by APE provides spectral and temporal characterization of ultrashort laser pulses down to below 5 fs. It covers both the red and near infrared range, and visible wavelength region ...

Sold by: Applied Physics & Electronics, Inc. Ships from: United States
Specifications
Device Type: SPIDER
Measurable Pulse Width: 10 – 150 fs
Wavelength Range: 450 – 900 nm
Input Polarization: Horizontal

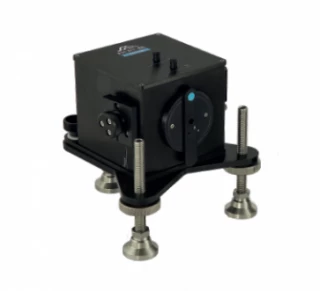

APE Mini TPA Compact And Tuning-free Autocorrelator

APE Mini TPA Compact And Tuning-free Autocorrelator

The Mini TPA by APE is the perfect combination of tuning-free autocorrelation measurement, compact size and high sensitivity.  Conventionally, autocorrelators used to split an optical pulse into two replicas ...

Sold by: Applied Physics & Electronics, Inc. Ships from: United States
Specifications
Device Type: Autocorrelator
Measurable Pulse Width: 50 – 30 fs
Wavelength Range: 340 – 3200 nm
Input Polarization: Horizontal, Vertical
APE pulseCheck The Modular Autocorrelator

APE pulseCheck The Modular Autocorrelator

It is good to have plenty of options at hand. Suitable for the characterization of virtually any ultrafast pulsed laser, the pulseCheck autocorrelator from APE covers the broadest possible range of wavelengths and ...

Sold by: Applied Physics & Electronics, Inc. Ships from: United States
Specifications
Device Type: Autocorrelator
Measurable Pulse Width: 10 – 500 fs
Wavelength Range: 200 – 12000 nm
Input Polarization: Horizontal, Vertical
APE Second Harmonic Generation FROG

APE Second Harmonic Generation FROG

The Second Harmonic Generation FROG (Frequency Resolved Optical Gating) is a cutting-edge solution for complete pulse characterization, seamlessly integrated with the pulseCheck autocorrelator series by APE. This ...

Sold by: Applied Physics & Electronics, Inc. Ships from: United States
Specifications
Device Type: FROG
Measurable Pulse Width: 200 – 6000 fs
Wavelength Range: 420 – 2200 nm
Input Polarization: Any
APE Spider IR 1 μm Central Wavelength

APE Spider IR 1 μm Central Wavelength

The Spider IR is a precision tool optimized for the complete spectral and temporal characterization of laser pulses in the infrared. Based on the patented Spider* technology, it extends the existing range of APE ...

Sold by: Applied Physics & Electronics, Inc. Ships from: United States
Specifications
Device Type: SPIDER
Measurable Pulse Width: 30 – 500 fs
Wavelength Range: 970 – 1070 nm
Input Polarization: Horizontal
Central Wavelength: 1 µm

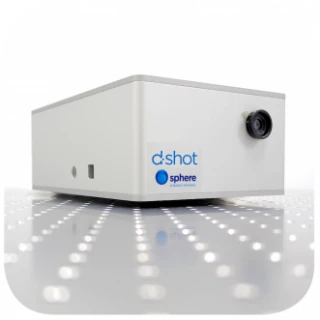

d-shot

d-shot

The d-shot is a compact system for ultrafast laser pulses single shot measurement with spectrum supporting 10-50 fs and at repetition rates ranging from sub-Hz to hundreds of kHz or MHz. Coupling the laser beam into ...

Sold by: Sphere Ultrafast Photonics, S. A. Ships from: Portugal
Specifications
Device Type: d-scan
Measurable Pulse Width: 10 – 70 fs
Wavelength Range: 700 – 1050 nm
Input Polarization: Horizontal
Chirp Range: ±1500 fs2
d-cycle

d-cycle

The d-cycle is the system of choice for fast and accurate measurement of even the most demanding ultrafast pulses, down to ultra-broadband spectra and single-cycle durations – the shortest for any commercially ...

Sold by: Sphere Ultrafast Photonics, S. A. Ships from: Portugal
Specifications
Device Type: d-scan
Measurable Pulse Width: 2.5 – 60 fs
Wavelength Range: 450 – 1200 nm
Input Polarization: Horizontal
Chirp Range: +/- 700 fs2
d-scan

d-scan

THE ULTIMATE MEASUREMENT AND CONTROL TOOL FOR ULTRAFAST LASER SYSTEMSAND HOLLOW-FIBER COMPRESSORS d-scan is an inline, compact and high-performance device for the simultaneous measurement and compression of even the ...

Sold by: Sphere Ultrafast Photonics, S. A. Ships from: Portugal
Specifications
Device Type: d-scan
Measurable Pulse Width: 2.5 – 60 fs
Wavelength Range: 450 – 1200 nm
Input Polarization: Horizontal
Chirp Range: ±720 fs2
APE FC Spider NIR

APE FC Spider NIR

The FC Spider Few-Cycle Pulse Characterizer from APE is a cutting-edge instrument designed for precise spectral and temporal analysis of ultrashort laser pulses down to <5 femtoseconds. Utilizing patented SPIDER ...

Sold by: Applied Physics & Electronics, Inc. Ships from: United States
Specifications
Device Type: SPIDER
Measurable Pulse Width: 5 – 200 fs
Wavelength Range: 550 – 1050 nm
Input Polarization: Horizontal
Dimensions: 561 x 244 x 316 mm

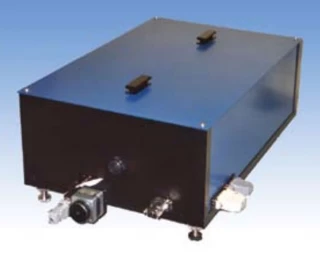

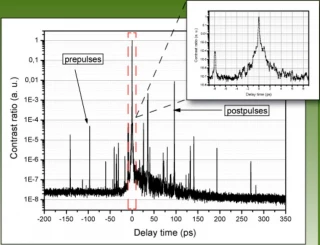

Rincon SS Single Shot Third-Order Cross-Correlator

Rincon SS Single Shot Third-Order Cross-Correlator

The third-order cross-correlator is an innovative tool specifically designed to measure a diverse range of output parameters from ultrafast laser systems. This advanced device is essential for evaluating the ...

Sold by: Del Mar Photonics Ships from: United States
Specifications
Device Type: Autocorrelator
Measurable Pulse Width: 20 – 1000 fs
Wavelength Range: 700 – 1500 nm
Input Polarization: Horizontal
Temporal Range: 950 ps
Rincon Cross-Correlator Pulse Profiling System

Rincon Cross-Correlator Pulse Profiling System

Discover the exceptional capabilities of our cutting-edge third-order cross-correlator, meticulously engineered to deliver precise measurements of output parameters from ultrafast laser systems. This advanced ...

Sold by: Del Mar Photonics Ships from: United States
Specifications
Device Type: Autocorrelator
Measurable Pulse Width: 20 – 20000 fs
Wavelength Range: 800 – 1250 nm
Input Polarization: Horizontal
Input Pulse Repetition Rate: < 3 kHz

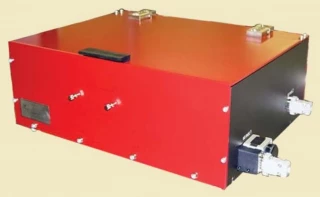

IRA-3-10 Autocorrelator

IRA-3-10 Autocorrelator

The IRA-3-10 autocorrelator is an advanced instrument meticulously engineered to measure the pulse duration and near contrast ratio of infrared (IR) ultrafast radiation, specifically within the 3–10 μm wavelength ...

Sold by: Del Mar Photonics Ships from: United States
Specifications
Device Type: Autocorrelator
Measurable Pulse Width: 30 – 50000 fs
Wavelength Range: 3000 – 10000 nm
Input Polarization: Horizontal, Vertical
Input Pulse Energy, μJ: < 10 uJ
Reef RDTR Scanning Autocorrelator

Reef RDTR Scanning Autocorrelator

The Reef-RTD real-time autocorrelator is an advanced tool designed for the precise measurement of femtosecond and picosecond pulse durations. With a variety of models available, this autocorrelator caters to ...

Sold by: Del Mar Photonics Ships from: United States
Specifications
Device Type: Autocorrelator
Measurable Pulse Width: 10 – 6000 fs
Wavelength Range: 1300 – 2000 nm
Input Polarization: Horizontal, Vertical
PC Connection: USB

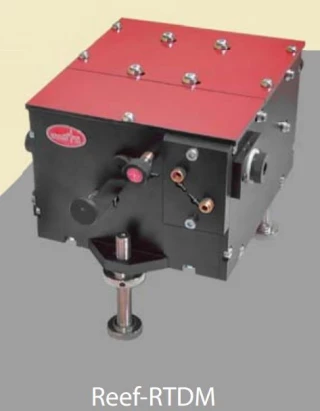

Reef RDTM Scanning Autocorrelator

Reef RDTM Scanning Autocorrelator

The Reef-RTD Real-Time Autocorrelator is an advanced tool designed for the precise measurement of femtosecond and picosecond pulse durations. This device is ideal for researchers and professionals working with ...

Sold by: Del Mar Photonics Ships from: United States
Specifications
Device Type: Autocorrelator
Measurable Pulse Width: 10 – 6000 fs
Wavelength Range: 450 – 2000 nm
Input Polarization: Horizontal
PC Connection: USB
Reef-RTD Scanning Autocorrelator

Reef-RTD Scanning Autocorrelator

The Reef-RTD Real-Time Autocorrelator is an advanced instrument designed for the precise measurement of femtosecond and picosecond pulse durations. This state-of-the-art device is ideal for those working with ...

Sold by: Del Mar Photonics Ships from: United States
Specifications
Device Type: Autocorrelator
Measurable Pulse Width: 10 – 6000 fs
Wavelength Range: 450 – 2000 nm
Input Polarization: Horizontal, Vertical
Input Repetition Rate: 8 kHz

Did You Know?

Laser pulses are some of the shortest events ever created. For some time, it was possible to create ultrafast laser pulses, but not to measure them. Today, powerful tools exist to collect much more accurate information on characteristics such as pulse duration, shape and form, as well as noise level of pulse waves. Laser pulse diagnostic systems, including Spider, FROG and Autocorrelator, are commonly used to characterize the output of ultrafast lasers. These systems help to determine the quality of the output, leading to highly sophisticated semiconductors, electrical circuitry, and even biomedical products.

Ultrafast Laser Pulse Diagnostics: Precision Tools for Measuring the Fastest Light

Ultrafast laser pulse diagnostics are essential for characterizing light pulses with durations ranging from femtoseconds (10⁻¹⁵ seconds) to picoseconds (10⁻¹² seconds). These diagnostics provide critical information about pulse parameters such as duration, shape, phase, and spectral content, which are vital for applications in ultrafast spectroscopy, nonlinear optics, and high-precision material processing.

Key Diagnostic Techniques

  1. Autocorrelation: This technique measures pulse duration by splitting a pulse into two replicas, delaying one relative to the other, and recombining them in a nonlinear medium. The resulting signal provides an estimate of the pulse width. Autocorrelators are widely used due to their simplicity and effectiveness in measuring pulses from a few femtoseconds to several picoseconds.

  2. Frequency-Resolved Optical Gating (FROG): FROG captures both the intensity and phase information of a pulse by measuring a spectrally resolved autocorrelation signal. This allows for complete reconstruction of the pulse's electric field, providing detailed insights into its temporal and spectral characteristics.

  3. Spectral Phase Interferometry for Direct Electric-field Reconstruction (SPIDER): SPIDER uses spectral shearing interferometry to retrieve the spectral phase of ultrashort pulses. By analyzing the interference between spectrally shifted replicas of the pulse, SPIDER enables precise reconstruction of the pulse's electric field.

  4. Multiphoton Intrapulse Interference Phase Scan (MIIPS): MIIPS not only characterizes but also compensates for phase distortions in ultrashort pulses. By applying a known phase modulation and measuring the resulting second-harmonic generation signal, MIIPS can correct for dispersion and optimize pulse compression.

Emerging Techniques

Recent advancements have introduced innovative methods for pulse diagnostics. For instance, single-shot amplitude swing techniques enable the characterization of individual pulses without the need for scanning, which is particularly useful for systems with low repetition rates or fluctuating pulse shapes . Additionally, air-based knife-edge techniques utilize plasma-induced defocusing to characterize pulses in ambient conditions, offering a straightforward and reliable approach.

Applications

Accurate pulse diagnostics are crucial across various fields:

  • Ultrafast Spectroscopy: Understanding molecular dynamics and chemical reactions on ultrafast timescales requires precise knowledge of pulse characteristics.

  • Nonlinear Optics: Processes like harmonic generation and supercontinuum generation depend on well-characterized pulses to achieve desired outcomes.

  • Material Processing: Ultrashort pulses are used for precise micromachining and surface structuring, where pulse duration and shape directly influence the quality of the process.

  • Biomedical Imaging: Techniques such as multiphoton microscopy rely on ultrafast pulses for high-resolution, deep-tissue imaging.

Conclusion

Ultrafast laser pulse diagnostics are indispensable tools for the advancement of science and technology involving ultrashort light pulses. By providing detailed insights into pulse characteristics, these diagnostics enable precise control and optimization of laser systems, facilitating breakthroughs in research and industrial applications.
