Description

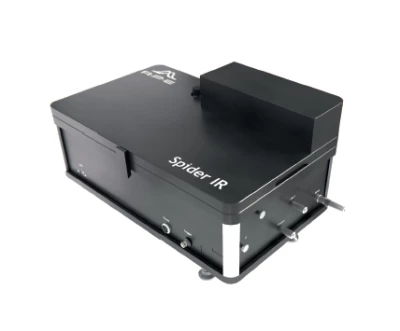

The Spider IR is a precision tool optimized for the complete spectral and temporal characterization of laser pulses in the infrared. Based on the patented Spider* technology, it extends the existing range of APE Spider models to cover longer pulses, between 30 and 500 fs, at a central wavelength of around 1 μm. It also supports detection of the chirp sign for stretched pulses greater than 2 ps width, making it a smart choice for the alignment of pulse compressors.
With its two internal spectrometers (for fundamental spectrum and upconverted interferogram) the Spider IR is able to simultaneously measure and analyze both spectra needed for pulse reconstruction, by using the same pulse. This gives it true single-shot capability. Furthermore, the Spider IR control software supports real-time calculation of the temporal amplitude and phase.
The user-friendly design features highly automated software to guide the operator through calibration and alignment procedures and enable measurements to be executed with a minimum of data input.
APE Spider IR 1 μm Central Wavelength
Specifications |
|
|---|---|
| Device Type: | SPIDER |
| Measurable Pulse Width: | 30 – 500 fs |
| Wavelength Range: | 970 – 1070 nm |
| Input Polarization: | Horizontal |
| Central Wavelength: | 1 µm |
| Chirp Direction Measurement Pulse Width: | 5 ps |
| Spectral Bandwidth: | > 6 ... 50 nm |
| Laser Repetition Rate: | Any; Single Shot |
| Input Polarization: | Linear horizontal |
| Input Power: | ~ 100 mW at 80 MHz; ~ 20 mW at 1 kHz |
| Input Trigger: | TTL for f < 10 Hz |
| Connection: | USB |
| Dimensions: | 561 x 289 x 320 mm |
Features
- Spider IR 1 μm Central Wavelength: Ideal for pulses between 30 and 500 fs at a central wavelength of 1 µm.
- Comprehensive Measurement: Provides spectral intensity and phase, plus temporal intensity and phase measurement.
- Real-time, Single-shot Capability: Offers true single-shot measurement of intensity and phase.
- Automated Software Support: High level of automated software support with internal camera-assisted alignment.
- Full Software Suite Included: Comes with a complete software package for enhanced usability.
- Advanced Pulse Characterization: Optimized for laser pulses in the infrared, extending the range of APE Spider models.
- Chirp Sign Detection: Supports chirp sign detection for stretched pulses over 2 ps, aiding pulse compressor alignment.
- Dual Internal Spectrometers: Simultaneous measurement and analysis with two internal spectrometers for fundamental spectrum and upconverted interferogram.
- Real-time Temporal Calculations: Control software supports real-time calculation of temporal amplitude and phase.
- User-friendly Design: Highly automated software guides the operator through calibration and alignment with minimal data input.
- External Beam Splitter and Beam Routing Kit: Included for enhanced measurement capabilities.
- Pre-installed Notebook: Ready-to-use system with pre-installed software.
- Customizable Wavelength Ranges: Available upon request for lasers with low repetition rates.
- Flexible Wavelength Range: Covers 970 ... 1070 nm, suitable for lasers with small bandwidths and larger pulse widths.
Applications
- Real-time and True Single-shot Measurement: The Spider IR enables real-time and true single-shot measurement of intensity and phase, making it ideal for precision applications.
- Automated Software Support: Features a high level of automated software support with internal camera-assisted alignment, making the setup process user-friendly.
- Full Software Suite: Includes a comprehensive software suite for enhanced measurement capabilities.
- Chirp Sign Detection: Capable of detecting the chirp sign for stretched pulses greater than 2 ps width, aiding in the alignment of pulse compressors.
- Internal Spectrometers: Equipped with two internal spectrometers for simultaneous measurement and analysis of spectra needed for pulse reconstruction.
- External Beam Splitter and Beam Routing Kit: Comes with an external beam splitter and beam routing kit for flexible setup configurations.
- Pre-installed Notebook: A pre-installed notebook is included for immediate operation and convenience.
- Customizable Wavelength Ranges: Available for lasers with low repetition rates and customizable wavelength ranges upon request.
Frequently Asked Questions
The Spider IR is a precision tool optimized for the complete spectral and temporal characterization of laser pulses in the infrared.
The wavelength range of the Spider IR is 970 ... 1070 nm.
The Spider IR covers longer pulses, between 30 and 500 fs.
Yes, the Spider IR supports detection of the chirp sign for stretched pulses greater than 2 ps width.
The Spider IR comes with a full software suite included, which features highly automated software to guide the operator through calibration and alignment procedures and enable measurements to be executed with a minimum of data input.
