Description

The Blueback Spider ultrafast laser pulse measurement system sets a new standard in real-time ultrashort laser pulse characterization, offering precise measurements crucial for ultrafast oscillators and amplifiers. Engineered with meticulous attention to detail, it provides high-resolution data, empowering users across industries, scientific research, and medical fields with accurate insights into their ultra-short pulses.

Unlike conventional devices, the Blueback Spider ultrafast laser pulse characterization device offers dynamic monitoring capabilities, allowing users to observe pulse evolution in real-time. Its versatile design accommodates a central wavelength range of 1010 – 1060 nm, with options for customization upon request.

With a pulse duration measurement range of 80 fs to 4 ps and a repetition rate spanning from 1 kHz to 200 MHz, it caters to a wide range of laser applications. Compact and user-friendly, the Blueback Spider is an indispensable tool for ensuring optimal laser performance and precision in diverse settings.

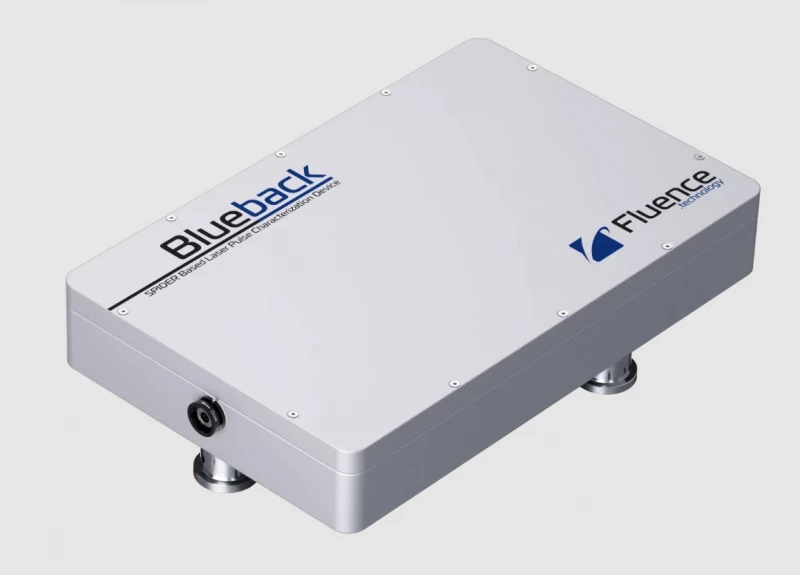

Blueback Spider - Based Laser Pulse Characterization Device

Specifications

Device Type: SPIDER
Measurable Pulse Width: 80 – 4000 fs
Wavelength Range: 1010 – 1060 nm
Input Polarization: Vertical
Repetition Rate: 1-200000 kHz
Sensitivity: > 0.5 nJ @ 80 MHz | >100 nJ @ 1 kH
Integrated High-resolution Spectrometer (USB 2.0): Included
User-friendly Software And Manual: Included
Size (including Spectrometer): 430 x 200 x 55 mm3
Electrical (Manual Version): USB powered (5 V, 500 mA)
Electrical (Automated Version): 100 – 240 V AC, 50 – 60 Hz, < 70 W
Operating Temperature: 15-25 °C
Operating Humidity: Non-condensing

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Real-Time Ultrashort Pulse Characterization: Blueback is designed for real-time measurement of ultrafast laser pulses, allowing users to monitor pulse evolution continuously rather than relying on a single static result.
  • Optimized for Ultrafast Oscillators and Amplifiers: Engineered for accurate characterization of femtosecond and picosecond pulses from ultrafast laser oscillators and amplifier systems.
  • Wide Pulse Duration Measurement Range: Measures ultrashort laser pulses from 80 fs to 4 ps, making it suitable for a broad range of femtosecond laser applications.
  • Near-Infrared Wavelength Compatibility: Standard operating wavelength range of 1010–1060 nm, ideal for many Yb-based ultrafast laser systems; other wavelength ranges are available on request.
  • Broad Repetition Rate Support: Compatible with laser repetition rates from 1 kHz to 200 MHz, supporting both high-repetition-rate oscillators and lower-repetition-rate amplifier systems.
  • High Sensitivity for Low-Pulse-Energy Lasers: Provides reliable measurements with sensitivity better than 0.5 nJ at 80 MHz and better than 100 nJ at 1 kHz.
  • Integrated High-Resolution Spectrometer: Includes a built-in high-resolution spectrometer with USB 2.0 connectivity for convenient data acquisition and analysis.
  • User-Friendly Software Included: Supplied with intuitive software and a user manual, helping researchers and engineers quickly set up measurements and analyze pulse parameters.
  • Designed for Accurate Ultrafast Laser Diagnostics: Provides essential information about ultrashort pulse properties, supporting laser optimization, process development, laboratory research, and quality control.
  • Ideal for Industry, Science, and Medicine: Suitable for ultrafast laser applications in industrial micromachining, scientific research, medical laser development, spectroscopy, nonlinear optics, and photonics laboratories.
  • Compact Benchtop Design: Space-saving footprint with physical dimensions of 430 mm x 200 mm x 55 mm, including the spectrometer.
  • Linear Vertical Input Polarization: Designed for systems with linear, vertical input polarization, ensuring consistent and repeatable pulse characterization.
  • Manual and Automated Versions Available: Offered in both manual and automated configurations to match different laboratory workflows and integration needs.
  • Convenient Power Options: Manual version is USB powered, 5 V / 500 mA; automated version operates from 100–240 V AC, 50–60 Hz with power consumption below 70 W.
  • Stable Operating Conditions: Designed for operation in controlled environments with an operating temperature range of 15–25 °C and non-condensing humidity.
  • Reliable Tool for Laser Setup and Optimization: Enables real-time feedback during ultrafast laser alignment, compressor tuning, pulse optimization, and long-term system monitoring.
  • Purpose-Built for Ultrafast Laser Users: A practical diagnostic instrument for anyone requiring precise information about femtosecond and picosecond pulse duration and pulse behavior.
  • Manufactured by Fluence: Developed by Fluence, a supplier of ultrafast laser technology for industrial, scientific, and medical applications.

Applications

  • Real-time ultrafast laser pulse characterization: Monitor and measure ultrashort laser pulses in real time for precise control of pulse duration, pulse evolution, and laser performance.
  • Femtosecond laser oscillator diagnostics: Characterize femtosecond oscillators operating in the 1010–1060 nm wavelength range, including high-repetition-rate ultrafast laser systems up to 200 MHz.
  • Ultrafast amplifier pulse measurement: Measure pulse duration and stability in ultrafast laser amplifiers used in industrial, scientific, and medical applications.
  • Pulse duration measurement from 80 fs to 4 ps: Analyze femtosecond and picosecond pulses across a broad measurement range for accurate ultrafast laser optimization.
  • Laser system alignment and optimization: Use real-time pulse feedback to optimize compressor settings, dispersion compensation, amplifier alignment, and overall ultrafast laser performance.
  • Quality control for ultrafast laser manufacturing: Integrate pulse characterization into production and testing workflows to verify ultrashort pulse parameters before shipment or system integration.
  • Industrial femtosecond laser process development: Support micromachining, precision drilling, surface texturing, thin-film processing, and material modification by ensuring consistent ultrafast laser pulse quality.
  • Scientific ultrafast optics research: Characterize pulses used in nonlinear optics, pump-probe spectroscopy, ultrafast spectroscopy, frequency conversion, and time-resolved experiments.
  • Medical laser research and development: Evaluate ultrafast laser pulses for ophthalmology, biomedical imaging, microsurgery research, and other medical laser development applications.
  • Multiphoton microscopy and bioimaging laser diagnostics: Verify pulse duration and pulse stability for femtosecond sources used in multiphoton excitation microscopy and advanced biomedical imaging.
  • Nonlinear microscopy and spectroscopy: Optimize ultrashort pulse characteristics for nonlinear optical techniques such as SHG, THG, CARS, SRS, and fluorescence excitation.
  • Laser pulse compressor tuning: Provide immediate feedback when adjusting grating compressors, prism compressors, chirped mirrors, and dispersion-management optics.
  • Ultrafast laser maintenance and troubleshooting: Quickly identify pulse broadening, instability, misalignment, dispersion mismatch, and other performance issues in femtosecond laser systems.
  • High-repetition-rate laser monitoring: Characterize ultrafast laser sources operating from 1 kHz to 200 MHz for applications requiring stable pulse trains and consistent temporal performance.
  • Low-energy pulse diagnostics: Measure sensitive ultrashort pulses with energy levels suitable for oscillator diagnostics, including high-repetition-rate femtosecond laser systems.
  • OEM ultrafast laser integration: Use as a diagnostic module for ultrafast laser manufacturers and system integrators who require reliable pulse characterization in development or production environments.
  • Academic and laboratory laser facilities: Provide researchers, students, and laser facility managers with a user-friendly tool for routine ultrafast pulse measurement and laser system verification.
  • Time-resolved measurement setup validation: Confirm pulse duration and temporal quality before performing pump-probe, transient absorption, fluorescence lifetime, and ultrafast dynamics experiments.
  • Femtosecond laser application labs: Support application development for precision materials processing, photonics, semiconductor research, and advanced manufacturing using ultrashort pulse lasers.
  • Ultrafast laser stability studies: Observe pulse behavior over time to evaluate laser warm-up, environmental sensitivity, long-term drift, and real-time pulse evolution.
  • Dispersion management in ultrafast systems: Measure the effect of optical components, fibers, windows, objectives, and other dispersive elements on ultrashort laser pulse duration.
  • Near-infrared femtosecond pulse diagnostics: Characterize NIR ultrafast pulses around 1030 nm, commonly used with ytterbium-based femtosecond oscillators and amplifiers.
  • Laser lab education and training: Demonstrate ultrafast pulse behavior, pulse compression, dispersion effects, and real-time laser diagnostics in photonics and optics teaching laboratories.
  • Research and development of ultrafast photonics systems: Assist in the development o

Frequently Asked Questions

What is the Blueback Spider used for?
The Blueback Spider is a real-time ultrashort laser pulse characterization device designed to provide high-resolution measurements for ultrafast oscillators and amplifiers. It is essential for anyone who requires accurate information about the properties of their ultra-short laser pulses.
What is the measurement range of the Blueback Spider?
The Blueback Spider offers a pulse duration measurement range of 80 femtoseconds (fs) to 4 picoseconds (ps), catering to a wide range of ultrafast laser applications.
What is the sensitivity of the Blueback Spider?
The Blueback Spider has a sensitivity of over 0.5 nanojoules (nJ) at 80 megahertz (MHz) repetition rate and over 100 nJ at 1 kilohertz (kHz) repetition rate.
Can the Blueback Spider accommodate different central wavelengths?
Yes, the Blueback Spider can operate within a central wavelength range of 1010 to 1060 nanometers (nm), with options available for other wavelengths upon request.
Is the Blueback Spider easy to use?
Yes, the Blueback Spider comes with user-friendly software and manuals, making it easy to operate and interpret the measurements obtained.
What are the power requirements for the Blueback Spider?
The Blueback Spider can be powered via USB (5 volts, 500 milliamps) for manual operation or connected to a power source ranging from 100 to 240 volts alternating current (VAC) at 50 to 60 Hertz (Hz) for automated operation.
What are the operating temperature and humidity ranges for the Blueback Spider?
The Blueback Spider operates optimally within a temperature range of 15 to 25 degrees Celsius and non-condensing humidity conditions.
Is technical support available for the Blueback Spider?
Yes, technical support is available. For any inquiries or assistance, please contact us at the provided email address or phone number.

Got more questions? Use the inquiry form to ask the supplier directly.
