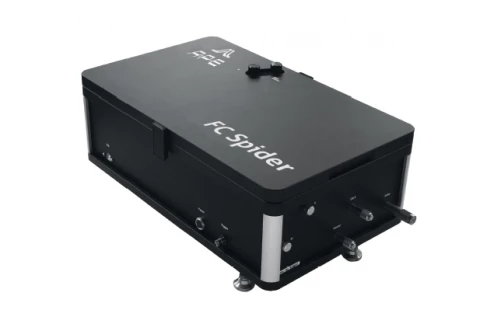

APE FC Spider NIR
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The FC Spider Few-Cycle Pulse Characterizer from APE is a cutting-edge instrument designed for precise spectral and temporal analysis of ultrashort laser pulses down to <5 femtoseconds. Utilizing patented SPIDER technology (Spectral Phase Interferometry for Direct Electric-field Reconstruction), it enables direct, reliable measurement of spectral phase and amplitude by analyzing spectral interferograms in real-time.
Ideal for broadband Ti:Sa oscillators, hollow-core fiber compressors, and nonlinear optical parametric amplifiers (NOPA), the FC Spider provides full spectral and temporal characterization in both the near-infrared (NIR: 550–1050 nm) and visible (VIS: 450–900 nm) ranges. The system includes advanced software features such as Fourier and wavelet interferogram analysis, dispersion simulation (GDD, TOD, FOD), and multiple pulse representations (spectrograms, Wigner traces, E-field plots).
With a compact design, internal camera-assisted alignment, and robust automated software support, the FC Spider is the ultimate tool for researchers needing accurate characterization of few-cycle pulses. Configurable options and accessories, including fiber coupling, beam routing kits, and pre-installed notebooks, ensure flexible integration into your ultrafast laser setup.
APE FC Spider NIR
Specifications |
|
|---|---|
| Device Type: | SPIDER |
| Measurable Pulse Width: | 5 – 200 fs |
| Wavelength Range: | 550 – 1050 nm |
| Input Polarization: | Horizontal |
| Dimensions: | 561 x 244 x 316 mm |
| Wavelength Range: | 500 ... 1000 nm |
| Laser Repetition Rate: | Any; Single Shot |
| Input Polarization: | Linear horizontal |
| Input Power: | > 50 mW at e.g. 80 MHz, 10 fs |
| Input Power: | 20 mW at e.g. 1 kHz, 20 fs |
| Input Trigger: | TTL for f < 10 Hz |
| Connection: | USB |
Features
- Short Pulse Characterization: Capable of characterizing ultrashort laser pulses down to less than 5 femtoseconds.
- Spectral Coverage: Covers both infrared and visible spectral ranges, with the FC Spider VIS supporting wavelengths down to 450 nm.
- Real-Time Measurement: Provides real-time and single-shot measurement of phase and intensity for precise pulse analysis.
- Automated Software Support: Features a high level of automated software support with internal camera-assisted alignment for ease of use.
- Full Software Suite Included: Comes with a comprehensive software package for enhanced functionality and user experience.
- Ideal Applications: Perfect for broadband Ti:Sa oscillators, hollow-core fiber compressors, and nonlinear optical parametric amplifiers (NOPA).
- Proven Technology: Utilizes patented Spider technology for direct measurement of spectral phase through spectral interferogram analysis.
- Customizable Wavelengths: Offers customized wavelength options on request to suit specific needs.
- Dimensions: Compact design with dimensions of 561 x 244 x 316 mm (W x H x D).
- External Accessories: Includes an external beam splitter and beam routing kit, along with a pre-installed notebook for convenience.
- Fiber Coupling: Available for lasers with low repetition rates (kHz or less).
- Input Specifications: Supports linear horizontal input polarization and requires input power of > 50 mW at 80 MHz, 10 fs or 20 mW at 1 kHz, 20 fs.
- Connection and Trigger: USB connection with TTL input trigger for frequencies below 10 Hz.
- Spectral Bandwidth: Offers spectral bandwidths ranging from 6 to 125 nm, depending on the model and application.
Applications
- Broadband Ti:Sa Oscillator Characterization: Perfect for alignment and monitoring of Ti:Sa laser systems.
- Hollow-Core Fiber Compressor Optimization: Enables precise few-cycle pulse verification.
- NOPA Pulse Analysis: Suitable for visible spectrum parametric amplifiers.
- Ultrashort Pulse Diagnostics: Essential for sub-5 fs laser pulse research in ultrafast optics.
Frequently Asked Questions
The FC Spider is used for spectral and temporal characterization of ultrashort laser pulses down to below 5 fs.
The FC Spider covers both the red and near infrared range, and visible wavelength region with the FC Spider VIS.
The FC Spider VIS supports the visible spectral region down to 450 nm.
The FC Spider uses the proven and patented Spider* technology, using a non-drifting, etalon interferometer and a material dispersion stretcher.
The FC Spider is ideal for aligning and monitoring the performance of broadband Ti:Sa oscillators, hollow-core fiber compressors, and nonlinear optical parametric amplifiers (NOPA).
