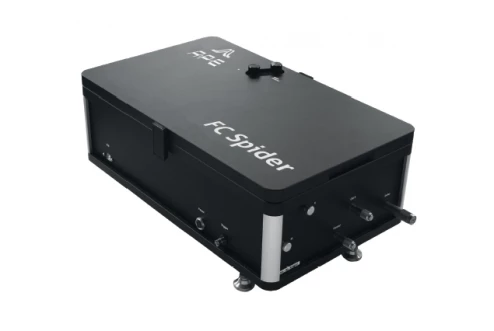

APE FC Spider VIS
Description
The FC Spider (Few Cycle Spider) by APE provides spectral and temporal characterization of ultrashort laser pulses down to below 5 fs. It covers both the red and near infrared range, and visible wavelength region with the FC Spider VIS. This high-precision tool is ideal for aligning and monitoring the performance of broadband Ti:Sa oscillators and amplifier chains with bandwidths starting at 30 nm. The FC Spider VIS supports the visible spectral region down to 450 nm, suitable for characterization of e.g. nonlinear optical parametric amplifiers (NOPA). Based on the proven and patented Spider* technology, using a non-drifting, etalon interferometer and a material dispersion stretcher, the FC Spider directly measures the spectral phase by analyzing a spectral interferogram. In combination with a simultaneously measured power spectrum, real-time calculation and visualization of the spectral and temporal amplitude and phase is accomplished.
APE FC Spider VIS
Specifications |
|
|---|---|
| Device Type: | SPIDER |
| Measurable Pulse Width: | 10 fs-150fs |
| Wavelength Range: | 450 nm-900nm |
| Input Polarization: | Horizontal |
Features
- Short pulse characterization down to < 5 fs
- Spectral coverage in the IR range and VIS range
- Real-time and single-shot measurement of phase and intensity
- High level of automated software support and internal camera-assisted alignment
- Full software suite included
- Ideal for broadband Ti:Sa oscillators, hollow-core fiber compressors, and NOPA
Applications
Ultrafast laser pulse measurement
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The FC Spider VIS provides spectral and temporal characterization of ultrashort laser pulses down to below 5 fs. It is ideal for aligning and monitoring the performance of broadband Ti:Sa oscillators and amplifier chains with bandwidths starting at 30 nm.
The FC Spider VIS covers the visible spectral region down to 450 nm.
The FC Spider uses the proven and patented Spider* technology, which uses a non-drifting, etalon interferometer and a material dispersion stretcher to directly measure the spectral phase by analyzing a spectral interferogram.
Yes, the FC Spider VIS is suitable for characterization of e.g. nonlinear optical parametric amplifiers (NOPA).
The size of the FC Spider VIS is 2561 x 244 x 316 mm (W x H x D).
