APE Carpe Microscopy Autocorrelator

Applied Physics & Electronics, Inc.
REQUEST QUOTE

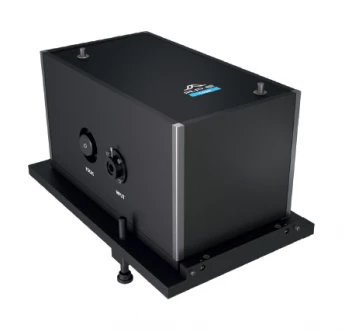

APE Carpe Microscopy Autocorrelator

OVERVIEW

APE's Carpe is a handy option for reviewing the management of short laser pulses in an optical microscope system. The Carpe autocorrelator measures the pulse duration at both the sample location and the input of the microscope. A comparison of the pulse widths obtained at these two spots enables you to calculate the pulse broadening effect. This effect is caused by dispersion of the microscope optics, but also depends to a large extent on the pulse width of the incoming laser beam. Furthermore, power detection at the sample location supports systematic and quantitative studies which explore how laser power affects samples or the fluorescence lifetime of probes. By examining the influence of the laser pulse duration, the power, and the dispersion of the microscope optics, you can fine-tune and optimize microscopy imaging at the relevant spot. These measurements can be also done using large NA (numerical aperture) or immersion lenses.

SPECIFICATION

  • Device Type: Autocorrelator
  • Measurable Pulse Width: 50 fs - 30 fs
  • Wavelength Range: 700 nm - 2000 nm
  • Input Polarization: Horizontal
Download Data Sheet

Applications

Ultrafast laser pulse measurement

KEY FEATURES


  • Study the effect of pulse duration, power, and optics dispersion on microscopy imaging

  • Measure pulse widths at the sample position and point of microscope input

  • Measure average power at sample position

  • Estimate the peak power in conjunction with the pulse width

  • Option Short working distance, e.g. for immersion objective lenses

  • Option: femtoControl for optimizing the duration of femtosecond laser pulses
