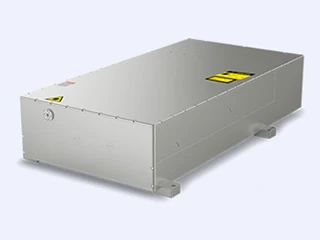

Olive Mid-Power Picosecond Ultrafast Laser Olive-532-15
OVERVIEW
Olive Mid-power Picosecond Laser is a product newly launched specific to micro machining marketby North America Ultra-fast R&D center established by Huaray after purchasing Canadian Attodyne. The product is pushed out by combining advanced of the R&D Center and excellent process optimization and batch delivery capability of Huaray. The laser adopts master oscillator power amplifying design with optical-solid mixed medium, and can provide high-energy laser with single pulse energy higher than 200 μJ and pulse width less than 10 picoseconds. The laser supports PoD triggering and can work in the Brust Mode, thereby being an ideal choice for precision laser machining.
SPECIFICATION
- Center Wavelength: 532 nm
- Repetition Rate: 100 - 500 kHz
- Pulse Energy: 0.05 mJ
- Energy Stability (RMS): 3 %
- Pulse Duration: 10000 fs
- Pointing Stability (RMS): 50 urad
- Polarization: Vertical
- Spatial Mode (M^2): <1.2
- Amplification Scheme: MOPA
Applications
This series of products is widely used in advanced precision laser machining fields and is a good tool for machining hard brittle materials of glass, sapphire, flat panel display and ceramics; meanwhile it can also be used for precision machining of metal, semiconductors, inorganic thin films and high polymer materials.
KEY FEATURES
- <10 picosecond pulses
- Long term power stability <3%rms
- High beam quality with M2≤1.3
- Serial Interface
