Description

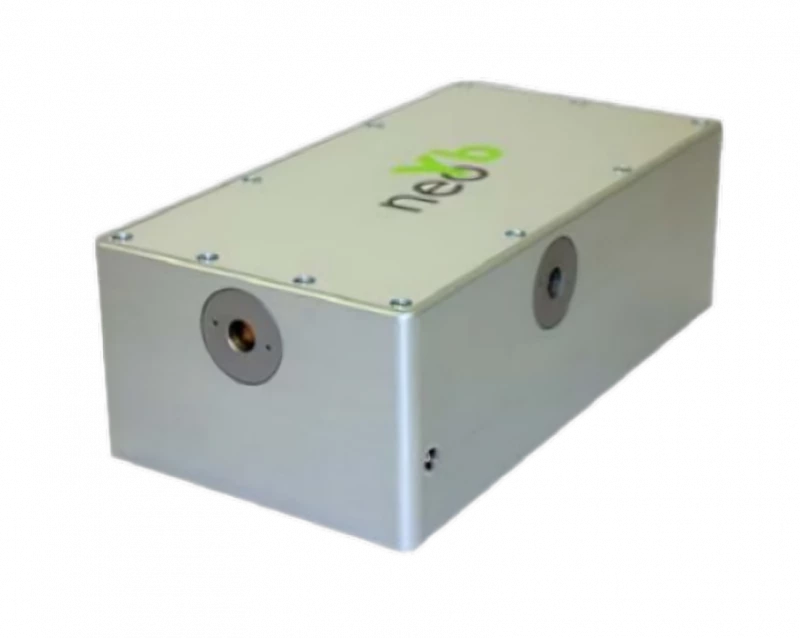

The neoYb Amplifier Module represents a cutting-edge solution in solid-state laser technology, designed to significantly boost pulse energy or average output power across a wide range of laser applications. With its innovative design and advanced features, this amplifier module offers exceptional performance, reliability, and versatility, making it an ideal choice for integration into various laser systems.
At the core of the neoYb Amplifier Module is its highly efficient Ytterbium-doped laser medium, operating at a wavelength of 1030 nm. This wavelength range is particularly well-suited for numerous industrial, scientific, and medical applications, providing optimal performance and versatility.
One of the key advantages of the neoYb Amplifier Module is its compact and lightweight design, which allows for easy integration into existing laser setups or systems. This compact form factor, combined with its high reliability and long operational lifetime, makes it a cost-effective solution for upgrading laser machines or scientific instruments.
The module supports a wide range of operation modes, from continuous wave (cw) to femtosecond (fs) pulses, offering users the flexibility to adapt to various experimental or industrial requirements. Additionally, its exceptional beam quality, with a TEM0,0 / M²<1.3 rating, ensures precise and consistent laser output, critical for demanding applications.
One of the standout features of the neoYb Amplifier Module is its scalability and flexibility. Users can easily scale up the amplifier units to meet specific power or energy requirements, making it suitable for a diverse range of applications, from laser material processing and micromachining to medical procedures and scientific research.
In summary, the neoYb Amplifier Module represents a state-of-the-art solution for boosting pulse energy or average output power in laser systems. With its advanced features, compact design, and exceptional performance, it enables users to achieve precise, reliable, and high-quality laser output for a wide range of applications.
neoYb: Amplifier Module
Specifications
| Center Wavelength: | 1030 nm |
|---|---|
| Pulse Energy: | 0.5 mJ |
| Pulse Duration: | 700 fs |
| Polarization: | Unspecified |
| Spatial Mode (M^2): | <1.3 |
| Amplification Scheme: | Not Specified |
| Output Power: | 5 – 100 W |
| Mode Of Operation: | CW to fs pulses |
| Input Power: | 1 – 40 dBm |
| Dimensions (LxBxH, Mm) |: | 246 x 120 x 75 mm |
| Ampient Temp.: | 15 - 35 °C |
| Laser Controller: | 19'' Rackmount 3 U height |
| Cooling: | Water cooled |
Got questions about specs? Use the inquiry form to ask.
Features
- Output power: 5 to 100 W
- Mode of operation: Continuous wave (cw) to femtosecond (fs) pulses
- Beam quality: TEM0,0 / M²<1.3 |
- Easy and compact energy or power boosting
- Highly flexible and scalable amplifier units
- Proven long-term stability and industrial reliability
Applications
- Femtosecond laser power amplification: Ideal for boosting pulse energy and average output power in ultrafast femtosecond laser systems operating around 1030 nm.
- Picosecond and femtosecond micromachining: Suitable for high-precision laser micromachining of metals, ceramics, glass, polymers, semiconductors, and thin films with minimal heat-affected zones.
- OEM laser system integration: Compact solid-state laser amplifier module for integration into industrial laser machines, scientific laser platforms, and custom ultrafast laser systems.
- Laser marking and engraving: Enables high-quality marking, engraving, and surface structuring on metals, medical devices, electronics, tools, and industrial components.
- Precision cutting and drilling: Supports micro-cutting, micro-drilling, and high-aspect-ratio hole drilling for electronics, aerospace, medical, and automotive manufacturing.
- Thin film ablation and patterning: Used for selective removal, trimming, and patterning of coatings, functional layers, transparent conductive oxides, and semiconductor films.
- Semiconductor and microelectronics processing: Suitable for wafer processing, scribing, dicing, defect repair, micro-via drilling, and advanced packaging applications.
- Medical device manufacturing: Supports precision fabrication of stents, catheters, implants, surgical tools, microfluidic devices, and bio-compatible components.
- Glass and transparent material processing: Applicable for ultrafast laser modification, cutting, drilling, welding, and internal structuring of glass, sapphire, and transparent substrates.
- Scientific ultrafast laser research: Used as a power booster for research-grade Yb-based laser systems in laboratories requiring stable high-power 1030 nm laser amplification.
- Mode-locked oscillator amplification: Designed for direct amplification of mode-locked oscillators and low-power seed lasers requiring higher pulse energy or average power.
- Gain-switched diode amplification: Suitable as a high-gain pre-amplifier or booster stage for gain-switched laser diode sources in compact laser architectures.
- CPA-free ultrafast amplification: Enables amplification of bandwidth-limited short pulses without complex chirped pulse amplification compressor arrangements in suitable system designs.
- High-peak-power laser development: Supports development of compact high-peak-power pico- and femtosecond laser sources for industrial and scientific applications.
- Laser texturing and surface functionalization: Used for creating controlled micro- and nano-scale surface textures to improve adhesion, wettability, friction, optical response, or biocompatibility.
- Additive manufacturing and laser material processing: Applicable for laser-assisted material processing, post-processing, surface finishing, and precision modification of additively manufactured parts.
- Nonlinear optics and frequency conversion: Provides amplified 1030 nm output for second harmonic generation, third harmonic generation, optical parametric generation, and other nonlinear optical experiments.
- Multiphoton microscopy and bioimaging: Can be used as a high-power ultrafast source or amplifier stage for advanced microscopy, multiphoton excitation, and nonlinear imaging systems.
- Terahertz generation: Suitable for pumping THz generation setups based on photoconductive antennas, nonlinear crystals, or plasma-based techniques.
- Pump source for optical parametric amplifiers: Provides high average power and excellent beam quality for pumping OPA, OPCPA, and wavelength-conversion systems.
- Laser-induced breakdown spectroscopy: Applicable for LIBS systems requiring stable, high-quality laser pulses for elemental analysis, materials identification, and process monitoring.
- Time-resolved spectroscopy: Used in pump-probe spectroscopy, ultrafast dynamics studies, transient absorption, and other time-resolved laser experiments.
- Industrial laser upgrade and power boosting: Cost-effective solution for increasing the output power of existing laser machines, scientific lasers, and low-power oscillators.
- High-stability production environments: Suitable for demanding industrial applications requiring long-term reliability, compact design, excellent beam quality, and scalable laser amplification.
Frequently Asked Questions
What is the neoYb Amplifier Module?
What is the wavelength range of the neoYb Amplifier Module?
What are the key features of the neoYb Amplifier Module?
What are the advantages of using the neoYb Amplifier Module? The advantages of the neoYb Amplifier Module include: Easy and compact energy or power boosting Highly flexible and scalable amplifier units Proven long-term stability and reliability
What applications is the neoYb Amplifier Module suitable for?
What is the typical input power range for the neoYb Amplifier Module?
What cooling method does the neoYb Amplifier Module use?
Is the neoYb Amplifier Module customizable for specific applications?
What is the typical ambient temperature range for operating the neoYb Amplifier Module?
What safety precautions should be taken when using the neoYb Amplifier Module?
