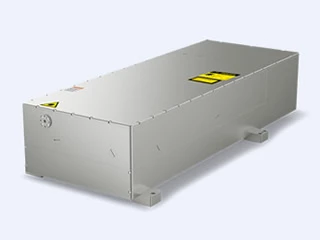

Olive Low-Power Picosecond Ultrafast Laser Olive-1064-10
OVERVIEW
The Huaray-Olive series, Low-power Picosecond Ultra-fast Lasers (4W@532nm, 10W@1064nm), Robust and affordable, it produces high energy pulses with durations below 10 ps. The laser is based on a hybrid optical amplifier architecture that combines the advantages of fiber laser technology with solid state diode pumped multi-pass amplifiers. Compact and water-cooled, this laser is low maintenance and never needs realignment. special specification can be customized, this laser is ideal for fast, high precision material processing at an affordable price.
SPECIFICATION
- Center Wavelength: 1064 nm
- Repetition Rate: 50 - 1000 kHz
- Pulse Energy: 0.02 mJ
- Energy Stability (RMS): 3 %
- Pulse Duration: 10000 fs
- Pointing Stability (RMS): 50 urad
- Polarization: Horizontal
- Spatial Mode (M^2): <1.2
- Amplification Scheme: Multi-Pass
Applications
They are widely used in Micro-machining, Ceramic Processing, Glass Cutting, Medical Plastic Processing, Sapphire Processing, Steel Processing, Laser Deposition, Thin Film Patterning, Hard Materials Machining and so on.
KEY FEATURES
- <10 picosecond pulses
- Long term power stability <3%rms
- High beam quality with M2≤1.3
- Serial Interface
