Description

The SB1-532-15-5 of our Microchip Series is a short nanosecond DPSS pulsed laser, 15uJ, low SWaP, ultra-compact, 5 kHz, passively Q-switched, DPSS laser.  The Microchip series, available at 1064, 946, 532, 473, 355 266, and 236.5nm, is capable of producing single-frequency operation with narrow linewidths, and an M^2 of <1.3 with a pulse to pulse instability of <3%.

The Microchip series DPSS laser comes standard with the MLD-019 laser controller which offers a high degree of monitoring and control as well as real-time feedback. The Microchip laser series can be customized to meet a variety of application requirements. With >3,000 units currently in the field, the Microchip laser series has proven to be a versatile a reliable laser solution for a wide range of applications ranging from space-based LIBS to 3D scanning and laser seeding.

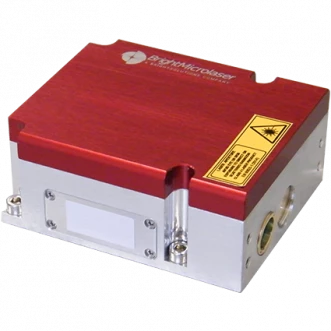

SB1-532-15-5: 532nm Microchip Laser

Specifications

Avg. Power: 0.075 W
Wavelength: 532 nm
Repetition Rate: 0.001 – 5 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 1.3 ns
Cooling: Air
Output Wavelength: 532 nm
Pulse Repetition Rate: 5 kHz
Pulse Energy: > 15 uJ
Pulse Width: < 1.3 ns
Peak Power: > 11 kW
Short Term Output Energy Instability: < 3 %
Long Term Output Power Instability: < 5 %
Beam Quality (M^2): < 1.3
Output Beam Diameter At Exit Aperture: < 0.3 mm
Beam Divergence (half Angle): < 4 mrad
Beam Ellipticity (axes Ratio): > 0.80
Warm Up Time After Cold Start: < 5 min
Power Consumption: < 20 W
Mechanical Package: SB1
Operational Temperature Range: +10°C to +40°C
Storage Temperature Range: -20°C to +60°C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 532 nm
  • <1.3ns
  • >15uJ
  • Single Longitudinal Mode
  • All-In-One Miniature Design

Applications

  • Biophotonics
  • LIBS
  • LiDAR
  • Telemetry
  • Laser manufacturing
  • Micromachining
  • Spectroscopy
  • Raman

Frequently Asked Questions

What is the output wavelength of the SB1-532-15-5 pulsed green DPSS laser?
The output wavelength of the SB1-532-15-5 laser is 532 nm.
What is the pulse repetition rate of the SB1-532-15-5 green pulsed DPSS laser?
The pulse repetition rate of the SB1-532-15-5 laser is 5 kHz.
What is the peak power of the SB1-532-15-5 green pulsed DPSS laser?
The peak power of the SB1-532-15-5 laser is greater than 11 kW.
What is the warm-up time of the SB1-532-15-5 green DPSS laser after a cold start?
The warm-up time of the SB1-532-15-5 laser after a cold start is less than 5 minutes.
What options are available for the SB1-532-15-5 pulsed DPSS laser?
The options available for the SB1-532-15-5 laser include a beam expander and collimator, heat-sink, development kit, and quick start/evaluation kit.

Got more questions? Use the inquiry form to ask the supplier directly.
