Description

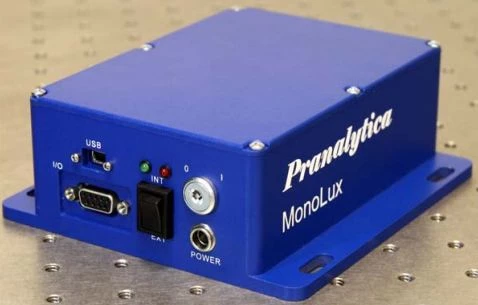

The MonoLux Tunable Quantum Cascade Laser System is a sophisticated laser solution designed for precision and adaptability. At its core, the system features a wavelength tunable external grating cavity quantum cascade laser (QCL), delivering a flexible wavelength coverage of ±5% around the center wavelength. This adaptability can be further enhanced with an optional broader tuning range. The laser head, which houses the QCL and collimating optics, is meticulously sealed to ensure reliable operation even in challenging environments. The MonoLux system is designed for ease of use, arriving as a complete package that includes a laser head and a laptop-based operating system, ready to be deployed at the customer's site.
The MonoLux operates predominantly in a quasi-continuous wave (QCW) mode, utilizing 200-500 ns pulses at a repetition rate of approximately 500 kHz to 2 MHz. This results in a duty cycle of around 50%, allowing the QCL to achieve an average power output exceeding 500 mW at the center of its tuning curve, dependent on the selected center wavelength. For applications requiring continuous wave (CW) operation, the system can be configured to a 100% duty cycle. Notably, the MonoLux is passively cooled, eliminating the need for fans and ensuring a quiet operational environment.
With a focus on precision, the MonoLux system offers user-specified center wavelengths, including options such as 3.8 µm, 4.1 µm, 4.5 µm, 4.8 µm, 6.3 µm, 6.8 µm, 7.3 µm, 8.5 µm, 9.5 µm, and 10.2 µm. The system is capable of tuning over the gain bandwidth of the QCL with a tuning speed of 100 ms for the entire range. It supports continuous and repeated scans, as well as step and scan functionalities, which can be controlled via a laptop computer. The output spectrum is characterized by a linewidth of less than 2 nm when operated in QCW mode, with a nearly diffraction-limited output beam quality. The MonoLux system is compact and lightweight, measuring 12 cm in width, 4.5 cm in height, and 13 cm in depth, with a weight of less than 0.5 kg. It interfaces with computers via USB, requiring at least Windows XP or later.
Tunable Monolux Quantum Cascade Laser at 4.5um
Specifications |
|
|---|---|
| Output Power (avg): | 0.5 W |
| Wavelength: | 4.5 um |
| Pulse Duration: | 50 – 500 ns |
| Tuning Range Around Center Wavelength: | >= 300nm |
| Wavelength Range: | um |
| Rep Rate Range: | MHz |
Features
- Tunable Quantum Cascade Laser System: The MonoLux is a wavelength tunable external grating cavity quantum cascade laser system, providing wavelength coverage of ±5% around the center wavelength, with broader tuning ranges available optionally.
- Compact and Sealed Design: The laser head is sealed for trouble-free operation in real environments, ensuring durability and reliability.
- Operation Modes:
- Operates in quasi-CW mode with 200-500 ns pulses at a repetition rate of ~500 kHz - 2 MHz, achieving a duty cycle of ~50%.
- Optional CW operation available by selecting 100% duty cycle.
- Power Output: Average power output exceeds 500 mW at the center of its tuning curve, depending on the center wavelength chosen.
- Quiet Operation: Passively cooled with no fans, ensuring very quiet operation.
Applications
- Environmental Monitoring: Utilize the tunable quantum cascade laser system for precise monitoring of atmospheric gases and pollutants.
- Medical Diagnostics: Employ the system in spectroscopic applications for non-invasive medical diagnostics, such as breath analysis.
- Industrial Process Control: Integrate the MonoLux system into manufacturing processes for real-time monitoring and quality control.
- Scientific Research: Use the laser's tunable capabilities for advanced research in fields such as chemistry and physics, enabling detailed molecular analysis.
- Security and Defense: Apply the system in security settings for the detection of hazardous substances and explosives through spectroscopic analysis.
- Material Analysis: Analyze materials with high precision to determine composition and properties, useful in both academic and industrial settings.
- Remote Sensing: Leverage the system for remote sensing applications, including geological and environmental studies.
Frequently Asked Questions
The MonoLux Quantum Cascade Laser system is a wavelength tunable external grating cavity quantum cascade laser system consisting of one QCL.
The MonoLux Quantum Cascade Laser system provides wavelength coverage of ±5% around the center wavelength.
The average power output of the MonoLux Quantum Cascade Laser system exceeds 500 mW at the center of its tuning curve depending on the choice of center wavelength.
The MonoLux Quantum Cascade Laser system is passively cooled with no fans, which makes for very quiet operation.
The computer interface of the MonoLux Quantum Cascade Laser system is USB.
