Description
Introducing OSI Laser Diode, Inc.'s 850nm Laser Modules OSI Laser Diode, Inc. presents its state-of-the-art 850nm laser modules, meticulously engineered for fiber optic instruments that demand high optical power coupled with low power consumption. These modules are housed in hermetic packages that ensure durability and reliability, making them an excellent choice for various high-performance applications. Each module is equipped with OSI's high reliability laser chips, offering users peace of mind in terms of performance and longevity.

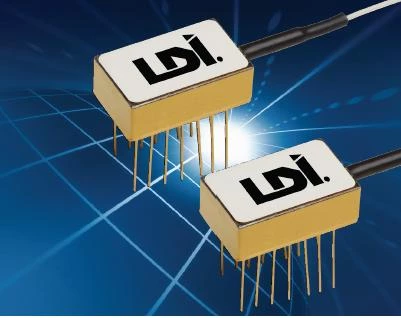

The laser modules are available in different package styles, including a 14-PIN dual in-line and a 3-pin coaxial package, providing flexibility for integration into diverse systems. The low-profile style package is specifically designed for use with narrow high current pulses, making it ideal for applications that require precise control and efficiency. Additionally, these modules can be custom-tailored to meet specific application requirements, ensuring that your unique needs are met with precision.
With a commitment to quality and compliance, these laser modules are RoHS compliant and ISO 9001:2008 certified, underlining OSI Laser Diode, Inc.'s dedication to maintaining the highest standards in manufacturing and environmental responsibility. Whether you're looking for a solution with a 50um or 62.5um fiber core, OSI Laser Diode, Inc. offers a range of options to suit your specific needs. Handle with care, as these devices are Class 3R lasers, and ensure all safety precautions are followed to prevent harm from laser emissions.
PULSED 850nm Instrument Laser Modules
Specifications |
|
|---|---|
| Output Power (avg): | 1 W |
| Wavelength: | 0.85 um |
| Pulse Duration: | 50 – 50 ns |
| Tuning Range Around Center Wavelength: | <= 200nm |
| Threshold Current (typ): | .1-.25 A |
| Peak Forward Current (typ): | 1.2-4.5 A |
| Peak Wavelength: | 850±20 nm |
| Spectral Width (FWHM): | 10 nm |
| Repetition Rate: | 10 KHz |
| Operating Temperature: | °C |
| Laser Forward Current: | 6 A |
| Laser Reverse Current: | 10 A |
| Fiber Bend Radius: | 50 mm |
Features
- Output Powers up to 1 Watt: Achieve high optical power for demanding applications.
- Low Inductance: Designed for efficient performance with minimal inductance.
- Low Power Consumption: Optimized for energy efficiency, reducing operational costs.
- Hermetic Package: Ensures reliability and longevity by protecting the laser diode from environmental factors.
- Package Options: Available in 14-PIN Dual In-Line or 3-Pin Coaxial Package for versatile application needs.
- Fiber Compatibility: Compatible with 50 and 62.5 um fiber, providing flexibility in fiber optic applications.
- Connector Options Available: Customizable connector options to suit specific requirements.
- RoHS Compliant: Environmentally friendly design adhering to RoHS standards.
- ISO 9001:2008 Certified: Manufactured under strict quality management systems for consistent product quality.
- Custom Tailoring Available: Devices can be customized to meet specific application requirements.
Applications
- Fiber Optic Instrumentation: Ideal for measurement systems requiring high-speed optical pulses
- Medical Diagnostics: Suitable for analytical and imaging systems requiring 850 nm illumination
- Laser-Based Sensing: Used in short-pulse detection and response applications
- Industrial Alignment Systems: High precision in beam delivery and targeting
- Optical Communication Devices: Supports short-range, high-bandwidth links
Frequently Asked Questions
The PULSED 850nm Instrument Laser Modules have a peak wavelength of 850±20 nm.
The PULSED 850nm Instrument Laser Modules have output powers up to 1 Watt.
The PULSED 850nm Instrument Laser Modules are compatible with 50 and 62.5 um fiber.
The PULSED 850nm Instrument Laser Modules should be handled with normal care, avoiding stretch, tension, kink or bend abuse. ESD precautions apply. Class 3R Laser. Laser light emitted from any diode laser may be harmful to the human eye. Avoid looking directly into the diode laser aperture when device is in operation.
The warranty for the PULSED 850nm Instrument Laser Modules is specified in the product purchase agreement or can be checked with the OSI Laser Diode sales representative.
