PW9401000HSTK1A: PowerMir 9.4um High Power Pulsed Quantum Turnkey System 1000mW

Name: PW9401000HSTK1A: PowerMir 9.4um High Power Pulsed Quantum Turnkey System 1000mW
Brand: RPMC Lasers, Inc.

Description

The PowerMir 9.4um High-Power Pulsed Quantum Cascade Laser by mirSense represents cutting-edge technology tailored for demanding industrial and scientific applications. This versatile quantum cascade laser (QCL) module is engineered to deliver exceptional performance, precision, and stability. Designed for seamless integration, it comes in a standalone packaged version, making it easy to incorporate into existing systems.

The HHL package features integrated temperature control mechanisms, including a Peltier TEC cooler and a thermistor, ensuring precise chip temperature regulation for consistent performance. Additionally, this QCL is equipped with an integrated collimating lens, guaranteeing high beam quality with a Gaussian profile. Its hermetically sealed design, filled with dry N2 air, enhances long-term stability and reliability.

With optional customization available upon request, including different package configurations, the PowerMir 9.4um QCL laser offers flexibility to meet specific project requirements. Whether used for gas sensing, spectroscopy, environmental monitoring, or industrial process control, this laser module delivers unparalleled performance, making it an indispensable tool for researchers, engineers, and integrators alike.

Specifications

Output Power (avg):	2 W
Wavelength:	9.4 um
Pulse Duration:	1 – 1 ns
Tuning Range Around Center Wavelength:	Not Applicable
Operational Temperature Range:	+10 to +30 °C

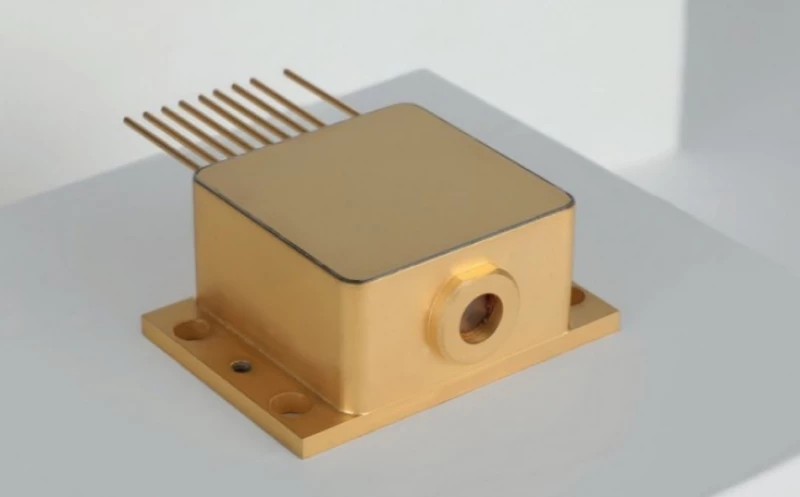

Package Type:	HHL (Hermetically-sealed package)
Temperature Control:	Integrated Peltier TEC cooler and thermistor for precise chip temperature control
Beam Divergence:	Optional circular beam with 2.5mrad divergence
Beam Quality:	Enhanced by collimating lens inside the package
Manufacturing Process:	Burned-in during manufacturing to ensure long-term power and wavelength stability
Environmental Protection:	Hermetically sealed with dry N2 air inside
Pulse Frequency:	> 500 kHz
Mode Of Operation:	Quasi-CW, high duty cycled pulsed
Polarization:	Linear vertically polarized (>98%)
Reliability:	> 3500 hours

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Available in standalone packaged version for easy integration
HHL package with built-in TEC and thermistor for temperature control
Integrated collimating lens ensures high beam quality (M²<1.5)
Custom package options available upon request
Hermetically sealed packages with dry N2 air for enhanced stability

Applications

Gas sensing and analysis
Spectroscopy and chemical detection
Environmental monitoring
Industrial process control
Research and development

Request Quote

To: RPMC Lasers, Inc.
Re: PW9401000HSTK1A: PowerMir 9.4um High Power Pulsed Quantum Turnkey System 1000mW

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: United States
Sold by:: RPMC Lasers, Inc. ✓ Verified Supplier
On FindLight:: since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the maximum power output of the PowerMir 9.4um quantum cascade laser?

The PowerMir 9.4um QCL can deliver a maximum power output of 2000mW.

What is the mode of operation for this QCL laser?

The laser operates in a Quasi-Continuous Wave (QCW) mode with high duty-cycled pulses.

Can the pulse frequency be adjusted?

Yes, the laser has a pulse frequency greater than 500 kHz, offering flexibility in pulse modulation.

What is the central wavelength of the laser?

The central wavelength of the laser is 9.4 µm, with a tolerance of +/- 0.1 µm.

Is the laser ITAR free?

Yes, the PowerMir 9.4µm laser is ITAR-free, ensuring ease of export and compliance with regulations.

What are the key features of the PowerMir 9.4µm laser?

Key features include high power output, QCW operation mode, reproducible manufacturing, and ITAR-free technology.

What applications is this laser suitable for?

The PowerMir 9.4µm laser is ideal for a wide range of applications, including gas sensing, spectroscopy, environmental monitoring, and industrial process control.

Can the laser be integrated into existing systems?

Yes, the laser is designed for easy integration, with standalone packaged versions available for seamless incorporation into various systems.

What temperature range can the laser operate in?

The laser can operate in ambient temperatures ranging from +10°C to +30°C, ensuring versatility in different operating environments.

Does the laser come with software for control and modulation?

Yes, the laser comes with user-friendly Windows software for temperature and current control, as well as modulation via external TTL signals or software.
