Description
QC8x1x6x series is a picosecond pulsed seed laser box integrated with 14-pin butterfly DFB laser module of QLD1x6x and QLA1x6x series. 50 ps optical pulse with stable single longitudinal mode can be obtained. Flexible and easy operation can be achieved with both external and internal trigger from single shot to 250MHz high repetition rate. All operation parameters including pulse peak current and laser diode temperature can be controlled by PC software via USB interface.

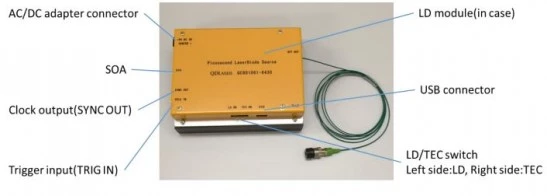

Picosecond pulsed seeder laser box
Specifications
| Output Power (avg): | 0.03 W |
|---|---|
| Wavelength: | 1.18 um |
| Pulse Duration: | 0.05 – 0.05 ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- 1 30-1180 nm DFB-LD/DFB-SOA LD integrated
- 5 ps gain-switched pulse generation
- > 30 mW peak power
- Internal / External clock operation
- Single shot to 250 MHz repetition rate
- Flexible parameter control via USB
- Plug and Play
Applications
- Pulsed seeder for fiber lasers
- Time resolved measurement
Frequently Asked Questions
What accessories come with the QC8x1x6x series?
The accessories that come with the QC8x1x6x series include an AC/DC adapter, USB cable, SMA-SMB conversion cable, and a document CD-ROM with the manual and application software.
What are the applications of the QC8x1x6x series?
The QC8x1x6x series can be used as a pulsed seeder for fiber lasers and for time-resolved measurement.
What are the features of the QC8x1x6x series?
The features of the QC8x1x6x series include DFB-LD/DFB-SOA LD integration, 50 ps gain-switched pulse generation, >30 mW peak power, internal/external clock operation, single shot to 250 MHz repetition rate, flexible parameter control via USB, and plug and play.
What are the optical and electrical characteristics of the QC8x1x6x series?
The optical characteristics of the QC8x1x6x series include a 50 ps adjustable pulse width, 30-50 mW peak output power, and a pulsed side-mode suppression ratio of 30 dB. The electrical characteristics include a pulse peak current tuning range of 0-200 mA and a repetition rate tuning range of 0.012-250 MHz with internal clock mode.
What is the QC8x1x6x series?
The QC8x1x6x series is a picosecond pulsed seed laser box integrated with a 14-pin butterfly DFB laser module of QLD1x6x and QLA1x6x series. It can obtain a 50 ps optical pulse with stable single longitudinal mode.
Got more questions? Use the inquiry form to ask the supplier directly.
