Description
QC9D1x6x series is a nanosecond high power pulsed seed laser board integrated with 14-pin butterfly DFB laser module of QLD1x61 and QLD1x6P series. Electrical pulse width can be tuned from 5ns to 132.5ns, and maximum current as driver ability is 2A. Flexible and easy operation can be achieved with both external and internal trigger. All operation parameters including pulse peak current and laser diode temperature can be controlled by PC software via USB interface. Only single +5V power supply is required for the board operation.

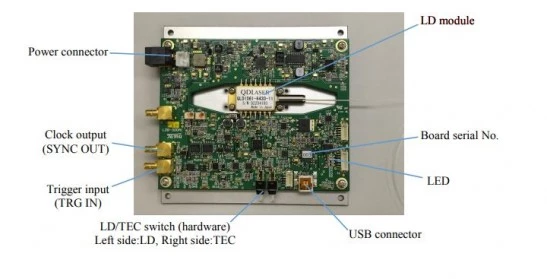

Nanosecond high power pulsed seeder laser board
Specifications
| Output Power (avg): | 0.1 W |
|---|---|
| Wavelength: | 1.18 um |
| Pulse Duration: | 5 – 132.5 ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
Download Data Sheet
Features
- QlD x61 or QLD1x6P series with wavelength of 1024-1180 nm integrated
- 5 to 132.5 ns electrical pulse generation
- High output power under pulse operation
- Internal / External clock operation
- 1 5 KHz to 2 MHz repetition rate with internal clock operations
- Flexible parameter control via USB
- Plug and Play
Applications
- Pulsed seeder for fiber lasers
- Time resolved measurement
Frequently Asked Questions
How can the operation parameters of the laser board be controlled?
All operation parameters including pulse peak current and laser diode temperature can be controlled by PC software via USB interface.
What are some applications of the QC9D1x6x series laser board?
The QC9D1x6x series laser board can be used as a pulsed seeder for fiber lasers and for time resolved measurement.
What is the electrical pulse width range of the QC9D1x6x series laser board?
The electrical pulse width can be tuned from 5ns to 132.5ns.
What is the maximum current driver ability of the laser board?
The maximum current driver ability is 2A.
What is the wavelength range of the QLD1x61 and QLD1x6P series integrated into the laser board?
The QLD1x61 and QLD1x6P series integrated into the laser board have a wavelength range of 1024-1180 nm.
