LASER DIODE SYSTEM LS453
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2019
Description
At AMTRON, we bring you a powerful portfolio of high-performance power supplies and fully integrated plug-and-play solutions designed for laser control. Our extensive manufacturing experience allows us to tailor the features and functions of our products to meet your exact specifications, ensuring the best solution for your unique application needs. Whether you're looking for compact power supply modules or sophisticated laser diode systems, AMTRON provides the innovation and reliability you require.
Our CM100 Power Supply Modules are engineered for system integration, offering a remarkable balance between size and power. These ultra-compact devices, smaller than a paperback book, deliver power up to 18 kW. Designed to power laser diode bars with currents up to 350A CW or 800A in pulse mode, they are also capable of supplying high-resolution currents for single emitter laser diodes at up to 80V. The modules are highly adaptable, allowing for tailor-made and OEM versions to be configured effortlessly, making them a versatile choice for various applications.
The FE400/FE100 Power Frontends are trusted for their safe and reliable AC/DC power supply capabilities. These units deliver DC output power up to 10 kW, featuring an integrated auxiliary supply and redundant enable lines, making them ideal for feeding DC/DC supplies like the AMTRON CM100 series. Available in both 19-inch tabletop and compact housing variants, these power frontends are designed to accommodate up to six parallel outputs, with options for air or water cooling based on output power requirements.
The CS400 Laser Diode Controllers are a testament to AMTRON's commitment to precision and control in laser processing. These devices provide constant current up to 300A and pulsed current up to 2000A, with pulse widths starting from 10 μs. Equipped with innovative features like broken fiber detection and power regulation, the CS400 series ensures comprehensive monitoring and protection throughout the processing procedure for both CW and pulse lasers, making them an indispensable tool for high-precision applications.
Our LS400 Laser Diode Systems offer a seamless plug'n'play solution for laser processing, integrating laser diodes from leading manufacturers into user-friendly systems. These systems are designed for direct material machining or as intelligent pumps for solid-state lasers. With Thermo Electric Cooling (TEC) air cooling, the LS series provides precise temperature regulation, ensuring maintenance-free operation and optimal performance. Experience the ease and efficiency of AMTRON's laser systems, designed to elevate your laser processing capabilities.

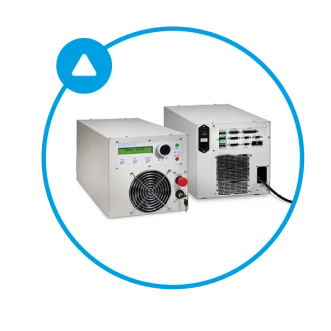

LASER DIODE SYSTEM LS453
Specifications |
|
|---|---|
| Output Power (avg): | 90 W |
| Wavelength: | 1.94 um |
| Pulse Duration: | 10000 – 10000 ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
Features
- Ultra-Compact Housing: The CM100 power supply modules feature a design smaller than a paperback book, making them ideal for space-constrained applications.
- Flexible Configuration: Offers multiple voltage or current ranges to suit various applications.
- High Efficiency: Achieves efficiency levels of up to 97%, ensuring energy-saving performance.
- Industry 4.0 Ready: Designed to meet the demands of the digital age with advanced connectivity options.
- Versatile Cooling Options: Includes air, water, or conductive cooling to accommodate different operational requirements.
- Safety Standards Compliance: Conforms to Performance Level "e" (PL e) according to safety standard EN ISO 13849.
- FE400/FE100 Power Frontends: Provides safe and reliable AC/DC power supplies with DC output power up to 10 kW.
- Integrated Auxiliary Supply: Includes a 24V auxiliary supply and redundant enable lines for enhanced reliability.
- Parallel Outputs: Supports a maximum of six parallel outputs for flexible power distribution.
- Cooling Options: Available with air or water cooling depending on the output power requirements.
- CS400 Laser Diode Controllers: Supplies constant current up to 300A and pulsed current up to 2000A with pulse widths as short as 10 μs.
- Advanced Monitoring: Features broken fiber detection and power regulation for comprehensive process control.
- Regulation Capabilities: Provides current, power, and temperature regulation for diode lasers.
- Fast Current Rise Time: Offers current rise times between 5 µs and 100 µs.
- Low-Noise Output: Ensures ultra low-noise output power for sensitive applications.
- TEC Control: Includes TEC control with polarity reversal for precise temperature management.
- LS400 Laser Diode Systems: Plug'n'play solutions for laser processing, integrating laser diodes in user-friendly systems.
- TEC Air Cooling: Features maintenance-free Thermo Electric Cooling (TEC) for precise laser temperature regulation.
Applications
- Laser System Integration: Ideal for powering single-emitter and bar laser diodes.
- Industrial Laser Processing: Supports precision machining and material processing tasks.
- OEM Custom Solutions: Easily configured for custom or high-volume applications.
- Laboratory Research: High-resolution current control for experimental setups.
- Solid-State Laser Pumping: Provides precise and reliable energy for laser pumping.
Frequently Asked Questions
TEC air cooling is Thermo Electric Cooling, which enables the laser temperature to be regulated precisely and is maintenance free.
The FE400 power frontend is a 19-inch table top variant, while the FE100 power frontend is a compact housing variant. Both deliver DC output power within a range up to 10 kW.
The LS453 laser diode system is used for direct machining of plastics and metals or as intelligent pumps for solid-state lasers.
The LS453 laser diode system has a power range of up to 300 W, with pulse duration ranging from 10 μs to cw.
The LS453 laser diode system has wavelengths ranging from 450nm to 1940nm.
