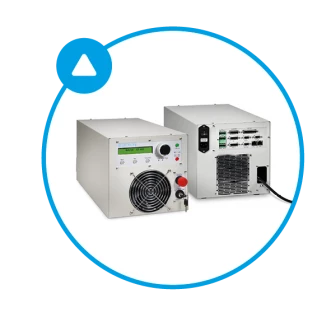

LASER DIODE SYSTEM LS444
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2019
Description
At AMTRON, we take pride in offering a unique portfolio that includes high-performance power supplies and fully integrated plug-and-play solutions for laser control. Our expertise in manufacturing allows us to adapt the features and functions of our products to meet your precise needs, ensuring the best solution for your specific applications. Our commitment to quality and innovation is evident in every product we develop, making us a trusted partner in your technological endeavors.
Our CM100 Power Supply Modules are designed for system integration with an ultra-compact housing that is smaller than a paperback book. Despite their size, these modules deliver impressive power, ranging up to 18 kW. They are capable of powering laser diode bars with currents up to 350A in continuous wave (CW) mode or 800A in pulse mode. For single emitter laser diodes, they provide high-resolution currents up to 80V. Tailor-made and OEM versions are available to suit your specific requirements, offering flexibility and efficiency for various voltage or current ranges. These modules are a perfect fit for the digital age of Industry 4.0, with cooling options including air, water, or conductive methods.
The FE400/FE100 series of power frontends delivers DC output power up to 10 kW, making them ideal for feeding DC/DC supplies like the AMTRON CM100 power supply modules. These devices feature an integrated auxiliary supply and redundant enable lines, ensuring safety and reliability. Available in a 19-inch tabletop (FE400) or compact housing variants (FE100), they offer flexibility with up to six parallel outputs and cooling options tailored to the output power, including air or water cooling.
The CS400 series of laser diode controllers are engineered to supply constant current up to 300A and pulsed current up to 2000A with pulse widths starting at 10 μs. These devices incorporate innovative features such as broken fiber detection and power regulation, providing comprehensive monitoring and protection for the complete processing procedure of continuous wave (CW) and pulse lasers. With options for current, power, and temperature regulation, the CS400 series ensures optimal performance for both bars and single emitter lasers.
The LS400 series offers a plug-and-play solution for laser processing, integrating laser diodes from renowned manufacturers into user-friendly systems. These systems are suitable for direct machining of materials or as intelligent pumps for solid-state lasers. The inclusion of Thermo Electric Cooling (TEC) air cooling allows for precise temperature regulation, ensuring maintenance-free operation and reliable performance.
LASER DIODE SYSTEM LS444
Specifications |
|
|---|---|
| Output Power (avg): | 80 W |
| Wavelength: | 1.94 um |
| Pulse Duration: | 10000 – 10000 ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
Features
- Ultra-Compact Housing: The CM100 power supply modules feature a housing smaller than a paperback book, making them ideal for space-constrained applications.
- Flexible Configuration: Offers multiple voltage or current ranges to suit diverse needs.
- High Efficiency: Achieves up to 97% efficiency, ensuring minimal power loss.
- Industry 4.0 Ready: Designed to meet the demands of the digital age with advanced connectivity options.
- Cooling Options: Available with air, water, or conductive cooling to match specific thermal management requirements.
- Safety Compliance: Meets Performance Level "e" (PL e) according to safety standard EN ISO 13849, ensuring high safety standards.
- Versatile Power Frontends: The FE400/FE100 series offers safe and reliable AC/DC power supplies with DC output power up to 10 kW.
- Integrated Auxiliary Supply: Includes a 24V auxiliary supply and redundant enable lines for enhanced reliability.
- Parallel Output Capability: Supports a maximum of 6 parallel outputs for expanded power delivery.
- Cooling Flexibility: Choose between air or water cooling based on output power requirements.
- Advanced Laser Diode Controllers: The CS400 series provides process control with constant current up to 300A and pulsed current up to 2000A.
- Innovative Monitoring Features: Includes broken fiber detection and power regulation to protect laser processing procedures.
- Current Regulation: Current, power, and temperature regulation for diode lasers ensures optimal performance.
- Low-Noise Output: Delivers ultra low-noise output power for sensitive applications.
- TEC Control: Features TEC control with polarity reversal for precise temperature management.
- Plug’n’Play Laser Systems: The LS400 series provides user-friendly systems integrating laser diodes for direct material machining or as intelligent pumps for solid-state lasers.
- Maintenance-Free Cooling: TEC air cooling allows precise laser temperature regulation without maintenance.
Applications
- Industrial Laser Processing: Ideal for cutting, welding, and marking applications.
- Research & Development: Provides stable and precise laser control for experiments.
- System Integration: Easily incorporated into complex OEM laser systems.
- Laser Pumping: Supports intelligent pumping for solid-state and fiber lasers.
- OEM Laser Solutions: Flexible customization for specific industrial requirements.
Frequently Asked Questions
The LS444 Laser Diode System features direct machining of plastics and metals, intelligent pumps for solid-state lasers, water cooling, TEC control with polarity reversal, wavelengths from 450nm to 1940nm, power up to 300 W, and pulse duration 10 μs to cw.
TEC air cooling is a type of cooling system that uses Thermo Electric Cooling to regulate the laser temperature precisely and is maintenance-free.
The CS400 Laser Diode Controller is a power supply with process control that supplies constant current at up to 300A and pulsed current at up to 2000A with a pulse width as of 10 μs. It has innovative functions such as broken fiber detection and power regulation to monitor and protect the complete processing procedure of CW and pulse lasers.
The FE400/FE100 Power Frontend is a safe and reliable AC/DC power supply that delivers DC output power within a range up to 10 kW. It has an integrated auxiliary supply and redundant enable lines that make it well-suited to feed DC/DC supplies like the AMTRON CM100 power supply modules series.
The LS444 Laser Diode System is a user-friendly system that integrates laser diodes from renowned manufacturers for direct machining of materials or as intelligent pumps for solid-state lasers.
