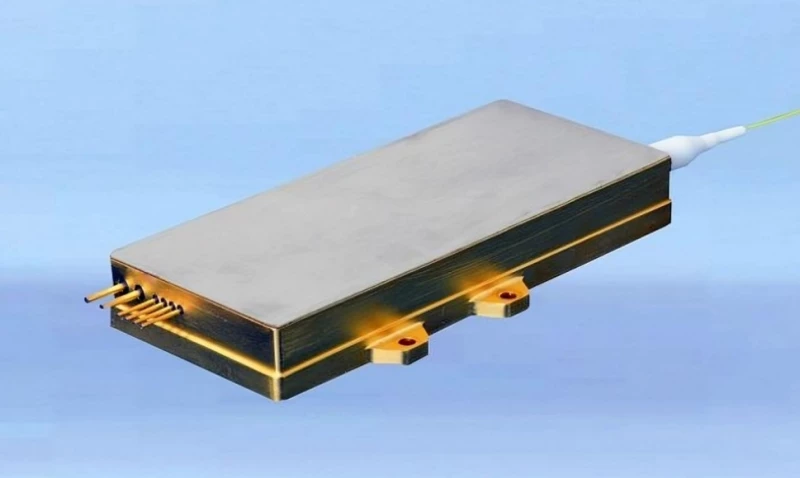

915nm 150W High Brightness Fiber-coupled Diode Laser
Description
The Fiber-Coupled Diode Laser System by PhotonTec Berlin GmbH offers reliable and efficient laser output coupled into a fiber optic cable. With its compact design and high performance, it is suitable for various applications in research, medical, and industrial fields.
915nm 150W High Brightness Fiber-coupled Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 915 nm |
| Output Power: | 150000 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | N/A um |
| Alternative Wavelength: | 976 nm |
| Numerical Aperture: | 0.22 |
| Wavelength Tolerance: | ± 10 nm |
| Spectral Width (90% Power: | <3.0 nm |
| Wavelength Temp. Coefficient: | 0.3 nm/°C |
| Bare Fiber Length: | 1/2 m |
| Threshold Current (typical): | 0.6 A |
| Operating Current (typical): | 9.8 A |
| Operating Voltage (typical): | 31.5 V |
| Slope Efficiency (typical): | 16.3 W/A |
| Power Conversion Efficiency (typical): | 48 % |
| Attenuatio: | >40 dB |
| Operating Temperature: | 10-40 °C |
| Storage Temperature: | -20 to +80 °C |
| Operating Humidity: | <75 % |
| Soldering Temperature (10s): | 250 °C |
Features
- Compact and robust design
- High-quality fiber coupling
- Wide range of wavelengths available
- Stable output power
- Easy integration into existing systems
Applications
- Fiber laser pumping
- Material processing
- Medical treatment
- Spectroscopy
- Scientific research
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
External Vendor
Claim PhotonTech Berlin Page to edit and add data
Frequently Asked Questions
The High Brightness Fiber-coupled Diode Laser has a CW output power of 150W.
The High Brightness Fiber-coupled Diode Laser has a fiber core diameter of 105µm.
The High Brightness Fiber-coupled Diode Laser can be used for laser pumping, material processing, and medical treatment.
The wavelength tolerance of the High Brightness Fiber-coupled Diode Laser is ±10nm.
The storage temperature range for the High Brightness Fiber-coupled Diode Laser is -20°C to +80°C.
