Description

LDX Optronics' fiber-coupled laser diodes deliver outstanding performance across a broad wavelength range from 445 nm to 690 nm. Designed for versatility and reliability, these diodes are available in a variety of free-space and fiber-coupled package options including 9mm FC, 8-pin HHL, HHL FC, and 2-pin FC packages. Offering typical output powers up to 1.4 W with stable beam quality, they are ideal for demanding industrial, medical, and research applications.

Each diode features narrow spectral width, precise wavelength tolerance, and polarization-maintained outputs in selected models. Integrated with thermoelectric cooling (TE) options and optimized for operating temperatures from 15°C to 25°C, LDX lasers ensure high efficiency and consistent long-term operation.

Whether you require precision material processing, biomedical imaging, spectroscopy, or display technologies, LDX Optronics provides a fiber-coupled diode solution tailored to your exact requirements. The rugged design and proven performance make these laser diodes a reliable choice for critical applications demanding consistent optical power and stability.

LDX-2405-680: 680nm 320mW Fiber Coupled Multimode Laser Diode

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 680 nm
Output Power: 320 mW
Fiber Core Diamater: 100 um
Fiber Cladding Diameter: 125 um
Operating Current: 900 mA
Threshold Current (Typical): 100 mA
Operating Temperature: +15 TO +25 °C
Operating Voltage (Typical): 2.1 v
Polarization: TE

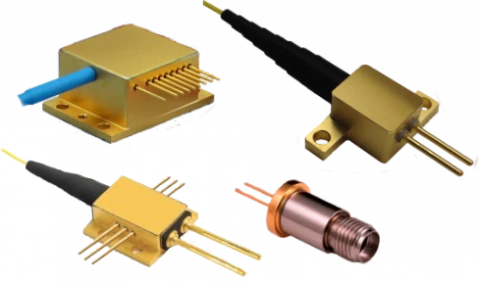

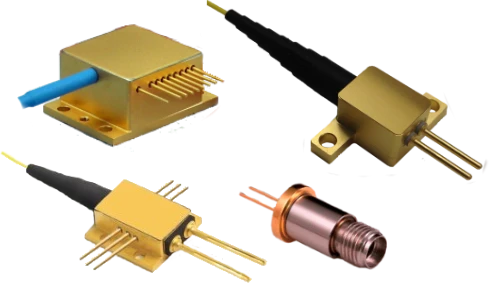

Package Options: 9mm FC, 8-pin HHL, HHL FC, 2-pin FC
Cooling: Thermoelectric cooling (TE)
Spectral Width FWHM: 1

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wide Wavelength Range: 445 nm to 690 nm available
  • High Output Power: Up to 1.4 W from fiber
  • Multiple Package Options: 9mm FC, 8-pin HHL, HHL FC, and 2-pin FC
  • Narrow Spectral Width: As low as ±3 nm FWHM
  • Fiber-Coupled Output: Standard fiber sizes for high beam quality
  • Polarization Options: TE and TM polarization depending on model
  • Long-Term Reliability: Robust performance for industrial and medical use

Applications

  • Biomedical Imaging: Accurate and stable illumination sources
  • Material Processing: Precise cutting, welding, and marking
  • Spectroscopy: High-resolution optical analysis
  • Display Technologies: Bright, stable light sources for projection systems
  • Research and Development: Laboratory-grade optical performance
  • Medical Devices: Laser therapy and surgical instrumentation

Frequently Asked Questions

What is the wavelength range of the LDX Series laser diodes?
The LDX Series provides wavelengths from 400nm – 1900nm.
What is the output power of the LDX-2405-680 laser diode?
The output power of the LDX-2405-680 laser diode is 400mW free space, 320mW from the fiber.
Can the LDX Series laser diodes be customized?
Yes, the LDX Series laser diodes are customizable from wafers & packaging to options & qualification.
Where are the LDX Series laser diodes made?
The LDX Series laser diodes are made in the US.
What is the delivery guarantee for the LDX Series laser diodes?
The LDX Series laser diodes have dependable delivery with just-in-time deliveries and buffer stock, and there are no discontinued products, so the supply is guaranteed for the life of your program.

Got more questions? Use the inquiry form to ask the supplier directly.
