Description
The LDX-3110-1850 from RPMC Lasers Inc. is a powerful 1850 nm multimode laser diode designed for precision applications in a wide range of industries. With an output power range of 800 mW to 1000 mW, this laser diode offers a reliable and stable performance, making it ideal for fiber-coupled and free-space systems. The LDX-3110-1850 operates in Continuous Wave (CW) mode, ensuring consistent light output for long durations.
This laser diode features a spectral width of 8 nm (FWHM), delivering high-quality infrared light with minimal dispersion. Its beam divergence of 6° (parallel) and 40° (perpendicular) provides excellent flexibility for various system designs.
The LDX-3110-1850 laser diode comes with a threshold current of 400 mA and an operating current of 5200 mA, allowing for efficient energy usage. Additionally, its compact emitter size of 100 µm and robust package options (C-Mount, B-Mount, TO-Can, HHL) make it adaptable for different applications. This laser diode is suitable for use in industrial, scientific, and medical applications where precise wavelength control is required.
LDX-3110-1850: 1850nm 800mW Fiber Coupled Multimode Laser Diode
Specifications
| Laser Type: | Continuous Wave (CW) |
|---|---|
| Fiber Type: | Multi-Mode |
| Wavelength: | 1850 nm |
| Output Power: | 1000 mW |
| Fiber Core Diamater: | 100 um |
| Fiber Cladding Diameter: | 250 um |
| Package Types: | Chip on Carrier, C-Mount, B-Mount, Q-Mount, 9mm, TO-3 no TEC, HHL, 9mm SMA, 2-Pin FC, 8-pin HHL, 9-pin HHL |
| Operating Temperature: | 15 °C |
| Threshold Current: | 400 mA |
| Operating Current: | 5200 mA |
| Operating Voltage: | 1.3 V |
| Beam Divergenc E (FWHM): | 6 θ// (°) |
| Spectral Width: | 8.0 nm |
| Transverse Mode: | TE |
Got questions about specs? Use the inquiry form to ask.
Features
- 1850 nm High‑Power Laser Diode – Center wavelength of 1850 ± 30 nm optimized for applications in the near‑infrared, including medical, industrial, sensing, and defense systems.
- Up to 1 W Free‑Space Output – Delivers up to 1,000 mW optical output power in free space and up to 800 mW when fiber‑coupled, enabling high‑brightness performance in compact systems.
- High Efficiency & Brightness – Typical slope efficiency of 0.25 W/A with a forward voltage of only ~1.1 V for reduced electrical power consumption and simplified thermal design.
- Low Beam Divergence – Engineered for low divergence and high brightness with typical fast axis divergence ~40° (FWHM) and slow axis divergence ~6° (FWHM), ideal for efficient collimation or tight focusing.
- Narrow Spectral Width – Typical 8 nm spectral width supports efficient coupling into optical systems, filters, and fibers, and is suitable for spectroscopy and sensing around 1.85 µm.
- TE‑Polarized Output – TE polarization (transverse electric) for stable, well‑defined polarization, beneficial for polarization‑sensitive optics and fiber coupling.
- Proven Long‑Term Reliability – Expected lifetime of >15,000 hours (EOL) when properly mounted and thermally managed; LDX Optronics devices are widely deployed in medical, industrial, research, and military environments.
- Optimized for 20 °C Operation – Specifications given at 20 °C on a C‑mount, simplifying integration with standard thermoelectric coolers and laboratory drivers.

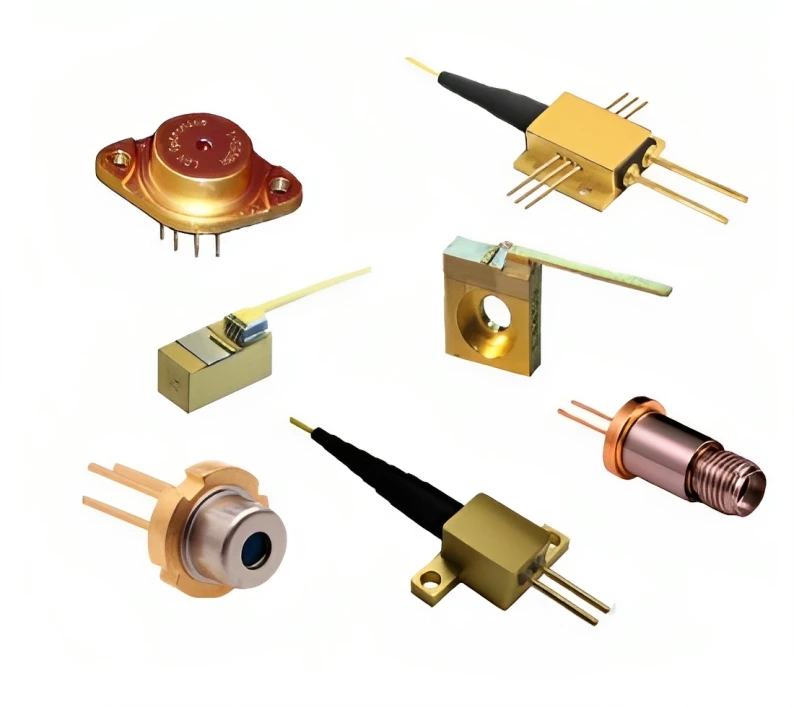

- Multiple High‑Performance Package Options – Available in a comprehensive range of free‑space and fiber‑coupled formats, including:
- C‑mount, B‑mount, Chip‑on‑Submount (COS) – Compact, high‑power chip‑level integration.
- 9 mm can, 9 mm Special, 9 mm SMA FC – Standard industry footprints for OEM designs.
- TO‑3 – Robust package with TEC, thermistor, and photodiode options.
- HHL, HHL‑FC – High‑heat‑load packages with or without integrated fiber coupling.
- FCP, HHLFC, 8‑pin BFC, 2‑pin FCP – Fiber‑coupled and board‑mountable variants for turnkey integration.
- Fast‑Axis Collimation Options – Many packages are available with fast‑axis lensing (FAC), including:
- C‑mount, B‑mount, COS, 9 mm, TO‑3, HHL – Factory‑aligned FAC for improved beam quality and easier external collimation.
- Best Collimation L1 / Squared Beam FAC L2 – Optional beam‑shaping optics for optimized collimation or more symmetric beam profiles.
- Fiber‑Coupled Versions – High‑brightness fiber‑coupled delivery with:
- Standard core sizes: 105 µm, 200 µm, and 250 µm (other diameters available on request).
- 9 mm SMA and pigtail with SMA connector options for plug‑and‑play system integration.
- Compatible with high‑power SMA connectors when minimum fiber size is used.
- Integrated Monitoring & Thermal Control (Package‑Dependent) – Options for:
- Internal photodiode for real‑time optical power monitoring and feedback control.
- Integrated TEC and thermistor (e.g., TO‑3, HHL) for precise temperature stabilization and wavelength control.
- Isolated packages improving electrical safety and reducing noise in sensitive setups.
- Compact Copper Header Construction – Copper header for excellent thermal conductivity and small footprint, supporting high power density and stable operation.
- Custom Wavelengths & Designs – Custom wavelengths, fiber types, and laser chip designs can be provided for OEM applications requiring specific spectral ranges or packaging configurations.
Applications
- Medical laser therapies and surgery
Ideal for tissue cutting, coagulation, and ablation in ENT, dermatology, urology, and gynecology where 1.8–2.0 µm wavelengths provide strong water absorption and precise thermal interaction with soft tissue. The high 1000 mW free-space / 800 mW fiber-coupled output supports both CW and modulated operation for contact and non-contact procedures. - Minimally invasive endoscopic and laparoscopic procedures
Compact C‑mount, B‑mount, chip-on-submount, and 9 mm/TO‑3/HHL packages enable integration into small endoscope and laparoscope handpieces. The 1850 nm band is well-suited for controlled cutting and hemostasis in confined spaces via 105–200 µm fiber delivery. - Dental and oral surgery applications
Suitable for soft-tissue dental procedures (gingivectomy, frenectomy, periodontal pocket debridement, lesion removal) where precise cutting and coagulation with reduced bleeding are required. High-brightness emission and compatible SMA-terminated fibers simplify integration into dental laser systems. - Ophthalmic and ENT therapeutic systems
Can be used as a source in specialized ENT and ophthalmic instruments for controlled tissue vaporization or shrinkage, particularly where water-rich tissues must be targeted with high selectivity and minimal collateral damage. - Industrial plastic and polymer processing
Effective for cutting, scoring, and selective heating of plastics, thin films, and polymer composites that absorb strongly around 1.8–2.0 µm. The combination of high output power and low divergence supports delivery through fibers for robotic and automated workstations. - Precision materials processing and micromachining
Suitable for fine drilling, trimming, and micro-structuring of materials with tailored absorption in the 1850 nm region. The low fast/slow-axis divergence and TE polarization enable efficient beam shaping and focusing for high-brightness processing heads. - Fiber laser seeding and pumping
Can serve as a pump or seed source for thulium- or holmium-doped fiber lasers and other 2 µm-class solid-state or fiber systems. The narrow 8 nm spectral width and robust output power make it appropriate for integration into high-performance fiber laser architectures. - Spectroscopy and gas sensing around 1.8–2.0 µm
Well-suited for tunable diode laser absorption spectroscopy (TDLAS) and general near-IR spectroscopy targeting gases with absorption lines near 1850 nm (e.g., water vapor and related atmospheric species). High stability and proven reliability support long-term sensing deployments. - Environmental and atmospheric monitoring instruments
Applicable in path-integrated or in-situ sensors for humidity, exhaust monitoring, and atmospheric research where robust 2 µm-class sources are required. Fiber-coupled variants (HHL-FC, 9 mm SMA, FCP) simplify remote or distributed sensing setups. - Optical coherence tomography and imaging at 2 µm
Can be used in custom OCT-like or scattering-based imaging systems where longer wavelengths are desired for deeper penetration in scattering media or for specialty industrial and biomedical imaging at ~1.85 µm. - Scientific research in photonics and nonlinear optics
Provides a stable, high-power 1850 nm source for laboratory research in nonlinear frequency conversion, supercontinuum generation in specialty fibers, waveguide characterization, and photonic device testing in the 1.7–2.1 µm band. - Development of 2 µm optical components and systems
Useful as a characterization and burn-in source for testing lenses, mirrors, filters, coatings, isolators, and fiber components designed for the 2 µm region. The availability of multiple package styles (C-mount, B-mount, TO‑3, HHL, HHL-FC, 9 mm special, custom) supports both benchtop and OEM integration. - Free-space communication and LIDAR prototyping
Applicable as a transmitter source in experimental 2 µm free-space optical links and proof-of-concept LIDAR or range-finding systems, leveraging eye-safer operation at long wavelengths and good atmospheric transmission windows in specific conditions. - Defense and military IR source applications
Appropriate for military-grade IR illumination modules, target designation, countermeasures R&D, and range-finding subsystems operating near 2 µm. The >15,000-hour expected lifetime (EOL) and rugged packaging options are beneficial in demanding environments.
