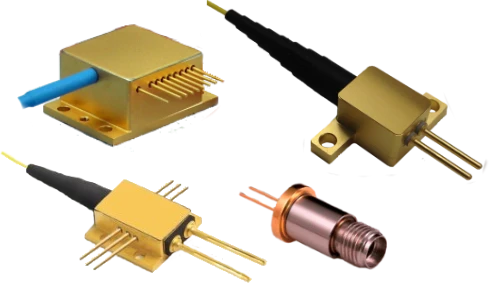

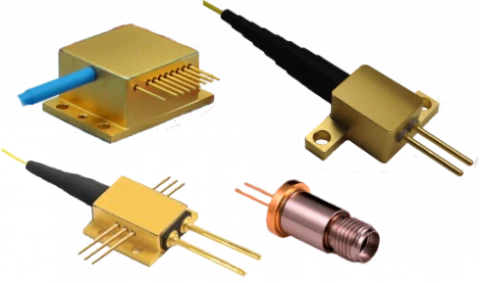

LDX-2410-635: 635nm 320mW Fiber Coupled Multimode Laser Diode
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The LDX-2410-635 from RPMC Lasers Inc. is a high-performance 635 nm multimode laser diode designed to deliver exceptional power and reliability for a wide range of industrial, scientific, and commercial applications. Operating in Continuous Wave (CW) mode, this laser diode provides a stable output power range of 320 mW to 400 mW, making it highly suitable for applications that require consistent, high-quality red light. With a spectral width of just 0.6 nm, the LDX-2410-635 produces a clean and narrow output, ensuring precise and focused beam characteristics.
The laser diode is configured in a single-emitter setup, and its beam divergence of 7° parallel and 40° perpendicular provides flexibility in beam shaping, making it ideal for integration into various optical systems. The operating current of 850 mA ensures efficient energy consumption, while the threshold current is set at 450 mA, enabling the laser to operate at a broad range of current levels.
This laser diode is available in multiple mounting configurations such as C-Mount, B-Mount, and Q-Mount, offering versatility for different system designs. Additionally, the LDX-2410-635 can be used in both free-space and fiber-coupled applications, expanding its usability across different fields. Its operating voltage of 2.1 V and an emitter size of 100 µm allow for compact and energy-efficient designs, ensuring seamless integration into high-performance systems. This product is ideal for use in biomedical research, optical testing, laser projection systems, and sensor applications, offering a reliable solution for critical precision tasks.
LDX-2410-635: 635nm 320mW Fiber Coupled Multimode Laser Diode
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 635 nm |
| Output Power: | 320 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | 125 um |
| Spectral Width (FWHM): | 0.6 nm |
| Beam Divergence (Parallel): | 7° |
| Beam Divergence (Perpendicular): | 40° |
| Threshold Current: | 450 mA |
| Operating Current: | 850 mA |
| Operating Voltage: | 2.1 V |
| Transverse Mode: | TM |
| Operating Temperature: | 20 °C |
| Emitter Size: | 100 µm |
| Mounting Options: | C-Mount, B-Mount, Q-Mount, etc. |
Features
- Wavelength: 635 nm for precise red laser applications
- Output Power: Ranges from 320 mW to 400 mW for a wide range of applications
- Spectral Width: Narrow at 0.6 nm, ideal for applications requiring fine spectral resolution
- Beam Divergence: 7° parallel, 40° perpendicular for flexible beam shaping
- Operation Mode: Continuous Wave (CW) mode for stable output
- Mounting Options: Available in C-Mount, B-Mount, Q-Mount, and others for versatile system integration
- Transverse Mode: TM for higher beam quality
- Operating Current: 850 mA for efficient energy use
- Operating Voltage: 2.1 V, providing low-voltage operation
Applications
- Biomedical Research: Ideal for applications requiring high precision in medical diagnostics or therapy
- Optical Testing: Useful for calibration and testing of optical systems
- Laser Projection Systems: Provides bright and consistent red light for displays
- Imaging Systems: Can be integrated into imaging applications requiring a narrow wavelength
- Sensor Applications: Used in sensors that detect specific wavelengths in industrial settings
Frequently Asked Questions
The LDX Series provides wavelengths from 400nm – 1900nm.
The LDX-2410-635 laser diode has an output power of 400mW free space, 320mW from the fiber.
Yes, the LDX Series is customizable from wafers & packaging to options & qualification.
The LDX Series being made in the US means there are no tariffs or international shipping issues.
There are no discontinued products and a guaranteed supply for the life of your program.
