Description

The LDX-3310-1120-TO3 is a high-performance semiconductor laser diode designed for a variety of industrial and scientific applications. Operating at a wavelength of 1120 ± 10 nm with a 3500 mW output power, this multimode laser diode is packaged in a robust TO-3 housing, ensuring both durability and reliability. The LDX series of laser diodes, made in the USA, are known for their high efficiency, long operational lifespan, and exceptional performance.

Customizable options for packaging, wavelength, and other specifications make this laser diode versatile for a wide range of uses, including material processing, medical applications, and scientific research.

Additionally, the diode's low threshold current and high slope efficiency contribute to its enhanced reliability and energy efficiency. This product offers an outstanding balance of high output power and operational stability, making it an ideal choice for demanding applications.

LDX-3310-1120: 1120nm 2400mW Fiber Coupled Multimode Laser Diode

Specifications

Laser Type: Continuous Wave (CW)
Fiber Type: Multi-Mode
Wavelength: 1120 nm
Output Power: 2400 mW
Fiber Core Diamater: 100 um
Fiber Cladding Diameter: 250 um
Operating Temperature: 20 °C
Threshold Current: 250 mA
Operating Current: 5800 mA
Operating Voltage: 1.7 V
Beam Divergence (FWHM): 7 θ// (°)
Spectral Width (FWHM): 3.6 nm
Package: TO-3
Thermal Management: Custom options available
Customizations: Available for packaging, wavelength, thermal management

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 1120 nm (± 10 nm)
  • Output Power: 3500 mW (Free space)
  • Mode: Multimode, suitable for high-power applications

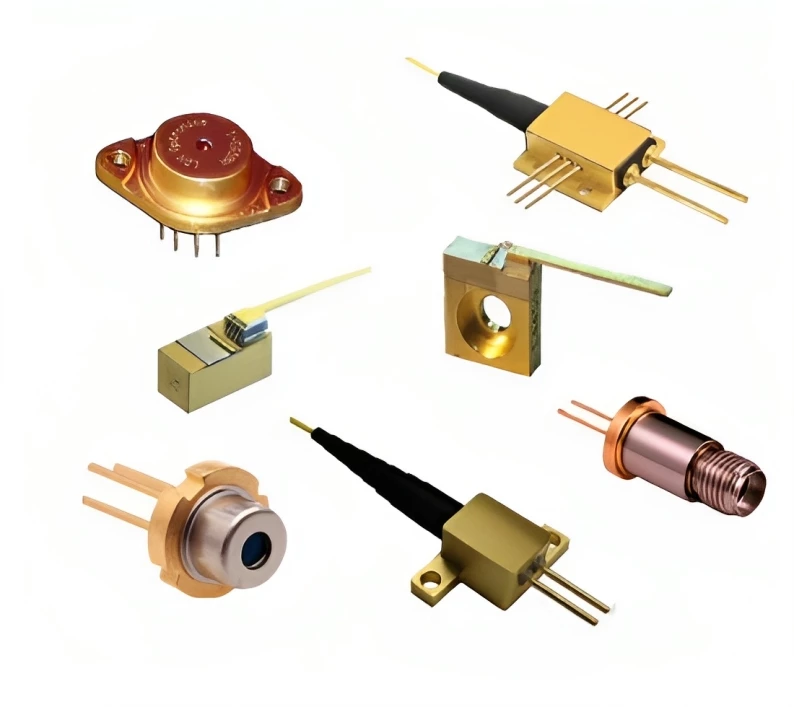

  • Packaging: Available in TO-3 with optional configurations (Chip on Carrier, C-Mount, B-Mount, etc.)
  • High Efficiency: Low threshold current and high slope efficiency enhance reliability
  • Customizable: Tailored options for packaging, wavelengths, and thermal management
  • Made in the USA: Avoids tariffs and international shipping issues
  • Dependable Delivery: Just-in-time stock with guaranteed supply

Applications

  • Industrial Processing: Ideal for laser cutting, welding, and engraving applications
  • Biomedical Research: Used in various medical and research procedures, including fluorescence microscopy and DNA sequencing
  • Material Analysis: Enables precise material characterization and analysis in scientific research
  • Telecommunications: Supports optical communication systems for data transmission.
  • Scientific Research: Essential for laboratory experiments and scientific investigations across disciplines
  • Defense and Aerospace: Used in applications such as LIDAR systems and targeting

Frequently Asked Questions

What is the wavelength of the LDX-3310-1120 laser diode?
The wavelength of the LDX-3310-1120 laser diode is 1120nm.
What is the output power of the LDX-3310-1120 laser diode?
The output power of the LDX-3310-1120 laser diode is 3500mW in free space packages and 2800mW from the fiber in fiber coupled packages.
What are the applications of the LDX-3310-1120 laser diode?
The applications of the LDX-3310-1120 laser diode include diode laser solutions, scientific and industrial applications, and OEM applications.
Can custom packaging and laser designs be made available for the LDX-3310-1120 laser diode?
Yes, custom packaging and laser designs are available for the LDX-3310-1120 laser diode.
What is the operating temperature range of the LDX-3310-1120 laser diode?
The operating temperature range of the LDX-3310-1120 laser diode is not provided in the given product description.
