Description
Affected by the development trend of fiber lasers in the direction of high power, semiconductor lasers are also developing toward high power and high brightness.
High brightness semiconductor lasers have higher optical power density, and they also become high power fiber lasers by combining beams. Ideal pump source. So Brandnew Technology released a new product, we can provide high power 700W 915nm Fiber Coupled Diode Laser.
Brandnew supplies high power pump modules to deliver the pump power for industrial, military, medical, telecommunication and R&D applications. Customers can easily build lasers with their own configurations using pump modules.

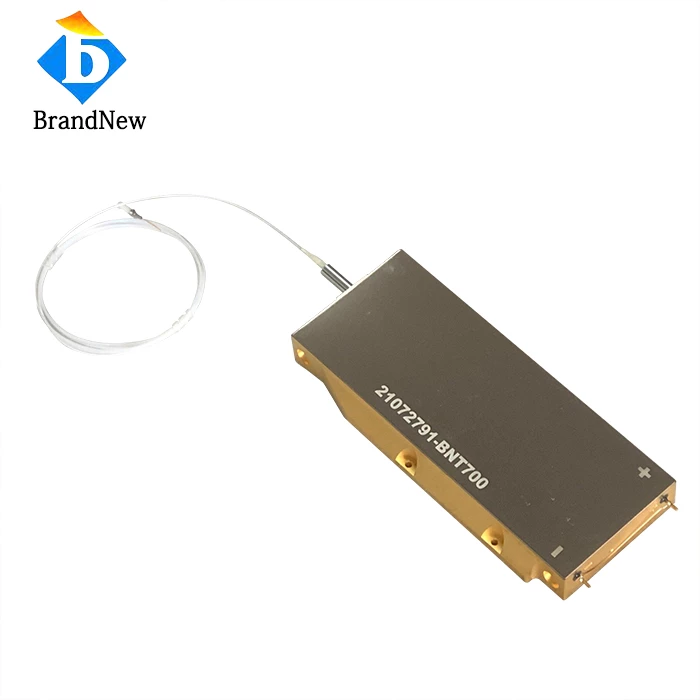

700W 915nm Fiber Coupled Diode Laser
Specifications
| Laser Type: | Continuous Wave (CW) |
|---|---|
| Fiber Type: | Multi-Mode |
| Wavelength: | 915 nm |
| Output Power: | 700000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | Not Specified |
| Fiber Numerical Aperture: | 0.22 NA |
| Fiber Length: | 1.5 M |
| Fiber Connector: | Bare end |
| Threshold Current Ith: | 1.1 A |
| Operating Current Lop: | 27 A |
| Operating Voltage Vop: | 62 V |
| Operating Temperature: | 15~45 ℃ |
| Storage Temperature: | -30~70 ℃ |
Download Data Sheet
Features
- High power 700W
- 915nm central wavelength
- Bare end connector
- 0.22NA
- Shock and vibration resistant
- High brightness and high reliability
Applications
- Picosecond Lasers
- YAG Fiber Laser
- CO2 optical fiber marking machine
- Fiber Laser Pumping Source
Frequently Asked Questions
What is the power output of the 700W 915nm Fiber Coupled Diode Laser?
The power output of the 700W 915nm Fiber Coupled Diode Laser is 700W.
What is the central wavelength of the laser?
The central wavelength of the laser is 915nm.
What is the fiber core size of the laser?
The fiber core size of the laser is 200um.
What is the numerical aperture of the fiber?
The numerical aperture of the fiber is 0.22NA.
What is the operating temperature range for the laser?
The operating temperature range for the laser is 15~45℃.
