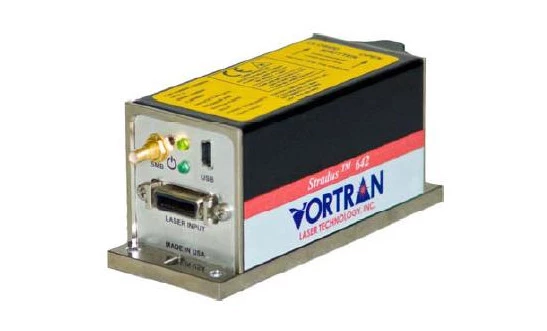

Stradus® 642‐110 Diode Laser Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
The Stradus® 642-110 laser module from Vortran Laser Technology, Inc. is a cutting-edge, fully integrated solution designed for seamless operation in a variety of environments. This self-contained, plug-and-play module is engineered with a patented sealed optical cavity, ensuring exceptional power stability and beam pointing precision. The advanced electronics within the Stradus® laser deliver unparalleled performance with low noise across varying temperatures and durations, making it a reliable choice for demanding applications.
One of the standout features of the Stradus® 642-110 is its excellent beam quality, characterized by a highly circular beam and precise alignment. With a wavelength of 642 ± 5 nm and a power output of 110 mW, this laser module is designed to meet the rigorous standards of medical, biomedical, and industrial applications. The module's compact design and self-contained nature make it an ideal choice for OEM heads or end-user systems.
The Stradus® laser module is equipped with both analog and digital modulation capabilities, providing flexibility and control for various operational needs. Users can easily manage and monitor the laser's performance through Vortran's intuitive Graphical User Interface (GUI) software, accessible via USB or RS-232 connections. This remote control capability enhances the user experience, allowing for precise adjustments and monitoring in real-time.
Designed to comply with stringent safety and environmental standards, the Stradus® 642-110 is CE Mark Certified and RoHS compliant in both the EU and China. With robust ESD protection and a Class IIIb CDRH classification, this laser module is engineered for safety and reliability. Vortran Laser Technology, Inc. is committed to continuous improvement, ensuring that their products meet evolving industry standards and customer needs.
Stradus® 642‐110 Diode Laser Module
Specifications |
|
---|---|
Center Wavelength: | 0.642 um |
Output Power: | 110 mW |
Spatial Mode: | TEM 00 |
Small Beam: | ~1.0 mm, ~1.0 mrad |
Standard Beam: | ~1.3 mm, ~0.7 mrad |
M² (typical): | < 1.25 |
Pointing Stability: | < 5 µrad/⁰C |
Power Stability: | < 0.5% (over 24 hours) |
Polarization Orientation: | Vertical ±5⁰ |
Polarization Extinction Ratio: | >100:1 |
Input Power (Head): | 12V DC, 1.5A (max) |
Input Power (Control Box): | 90‐250 VAC, 50/60Hz |
Storage Temperature: | -10⁰C to +60⁰C |
Operating Temperature: | +10⁰C to +45⁰C |
Laser Head Weight: | 210g |
Communication: | Mini‐USB and RS‐232 |
CDRH Class: | Class IIIb |
ESD Protection: | Class 4 |
EU Compliance: | CE Mark Certified with control box |
RoHS Compliance: | EU and China |
Features
- Wavelength 642 nm: Provides bright deep red emission ideal for optical and biomedical applications
- High Power Output: 110 mW with excellent long-term stability and precision
- Exceptional Beam Quality: TEM00 mode with M² < 1.25 ensures precise focusability
- Ultra Low Noise: RMS noise <0.1% (10Hz–10MHz) for clean, stable output
- Outstanding Power Stability: <0.5% variation over 24 hours ensures reliable performance
- Fast Modulation Response: Digital up to 200 MHz with <2 ns rise time, analog up to 500 kHz
- Compact & Self-Contained: Integrated design with patented sealed optical cavity
- User-Friendly Interface: Mini-USB and RS-232 control with GUI software
- Global Compliance: CE Mark certified and RoHS compliant for EU and China markets
Applications
- Biomedical Research: Ideal for fluorescence excitation and cellular imaging systems
- Medical Diagnostics: Suitable for precision laser-based diagnostic equipment
- Industrial Measurement: Reliable for alignment, inspection, and quality control
- OEM System Integration: Compact and robust for seamless integration into devices
- Scientific Instrumentation: Ensures stable performance for spectroscopy and advanced R&D
Frequently Asked Questions
The Stradus diode laser module is a fully integrated, plug and play, and self-contained laser module.
The Stradus diode laser module can be used in medical, biomedical, and industrial applications.
The power output of the Stradus diode laser module is 110 mW (‐0%, +10%).
The Stradus diode laser module has a USB or RS‐232 interface with GUI.
The weight of the Stradus diode laser module is 210g.
