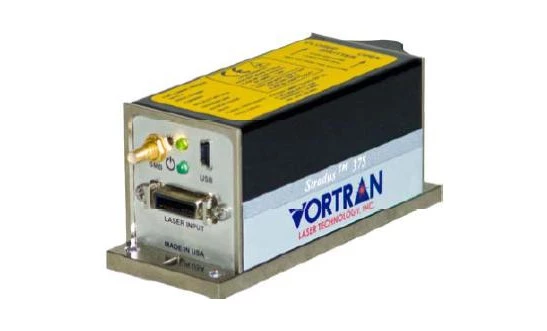

Stradus® 395‐100 Diode Laser Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
The Stradus® 395-100 from Vortran Laser Technology, Inc. is a state-of-the-art diode laser module designed to meet the rigorous demands of various applications. This fully integrated, plug-and-play laser module offers exceptional performance through its patented sealed optical cavity, ensuring unparalleled power stability and beam pointing accuracy. The innovative electronics incorporated into the design further enhance its reliability, offering low noise operation over time and across varying temperatures.
One of the standout features of the Stradus® 395-100 is its compact and self-contained design, which makes it an ideal choice for both OEM and end-user systems. The module's beam quality is exceptional, providing a high degree of beam circularity and alignment precision. This ensures that the laser output is of the highest quality, making it suitable for a wide range of applications.
The Stradus® 395-100 is equipped with advanced modulation capabilities, featuring both analog and digital modulation options. With a digital modulation rate of up to 200MHz and an analog modulation capability of 500kHz, this laser module offers flexibility and precision. Users can easily control and monitor the laser remotely via USB or RS-232 interfaces, thanks to the intuitive Graphical User Interface (GUI) software provided by Vortran.
Designed for reliability and ease of use, the Stradus® 395-100 complies with international standards, including CE Mark and RoHS compliance for both EU and China. Its robust construction and ESD protection class 4 ensure that the module can withstand demanding environments while maintaining optimal performance. Whether for medical, biomedical, or industrial applications, the Stradus® 395-100 represents a superior choice in laser technology.
Stradus® 395‐100 Diode Laser Module
Specifications |
|
|---|---|
| Center Wavelength: | 0.395 um |
| Output Power: | 100 mW |
Features
- Wavelength: 395 ± 5 nm
- Power Output: 100 mW (‐0%, +10%)
- Spatial Mode: TEM 00
- Beam Diameter: ~1.3 mm (1/e2)
- Beam Divergence: ~0.5 mrad
- M² (typical): < 1.25
- Beam Circularity: > 90%
- Beam Centration: < 0.5 mm
- Beam Alignment: < 5 mrad
- Pointing Stability: < 5 µrad/⁰C
- Power Stability (over 24 hours): < 0.5%
- Polarization Orientation: Vertical ±2⁰
- Polarization Extinction Ratio: >100:1
Applications
- Medical, Biomedical & Industrial Applications: The Stradus® diode laser module is ideal for medical, biomedical, and industrial uses due to its precision and reliability.
- Patented Sealed Optical Cavity: Ensures unparalleled power stability and beam pointing stability, making it suitable for high-precision applications.
- Self-contained & Compact Design: Offers ease of integration into various systems with minimal space requirements.
- Excellent Beam Quality: Provides a high-quality beam with low noise, essential for sensitive applications.
- Low Noise Operation: Delivers stable performance with minimal interference, ideal for environments where noise must be minimized.
- USB or RS-232 Interface with GUI: Allows for remote control and monitoring via Vortran’s Graphical User Interface software, enhancing user convenience and flexibility.
- Analog & Digital Modulation: Supports both analog and digital modulation, offering versatility for different operational needs.
- OEM Head or End-user Systems: Available for original equipment manufacturers or as a complete system for end-users, providing tailored solutions for various applications.
Frequently Asked Questions
The Stradus diode laser module is a fully integrated, plug and play, and self-contained laser module with unparalleled power stability, beam pointing stability, and low noise over time and temperature.
The Stradus diode laser module has excellent beam quality with a spatial mode of TEM 00, beam diameter of ~1.3mm, beam divergence of ~0.5mrad, and M² of <1.25.
The Stradus diode laser module has a USB or RS-232 interface with GUI software that allows the user to control and monitor the module remotely.
The Stradus diode laser module can be used in medical, biomedical, and industrial applications.
The laser head of the Stradus diode laser module weighs 210g.
