Description
Welcome to SemiNex Corporation, a leader in delivering high-performance infrared laser solutions. Situated in Peabody, MA, our mission is to provide cutting-edge laser technology, specifically designed to meet the demanding requirements of various industries. Our lasers operate at infrared wavelengths ranging from 13xx to 17xx nm, offering unparalleled power and efficiency.
We excel in customizing our InP laser chips to conform to the unique optical and electrical specifications of our clients, ensuring optimal performance and satisfaction. Our product range includes diodes, bars, and packages that undergo rigorous testing to align with both customer and market performance standards. This guarantees that our products not only meet but often exceed expectations in terms of reliability and efficiency.
The versatility of our lasers is evident in their adaptability to specific requirements, making them ideal for a diverse array of applications. Whether you need a standard product or a customized solution, our team is ready to collaborate with you to achieve the best results. At SemiNex, we are committed to innovation and excellence. Our high power multimode and singlemode lasers are capable of delivering up to 2.5 Watts CW, with standard wavelengths of 1310, 1450, 1550, 1635, and 1670 nm. We also offer the flexibility of custom wavelengths to suit specific needs.
Our products are meticulously designed to ensure high output power, dynamic power range, and efficiency, all while being housed in a standard low-cost package. For more detailed information or to discuss your specific requirements, please contact us directly.

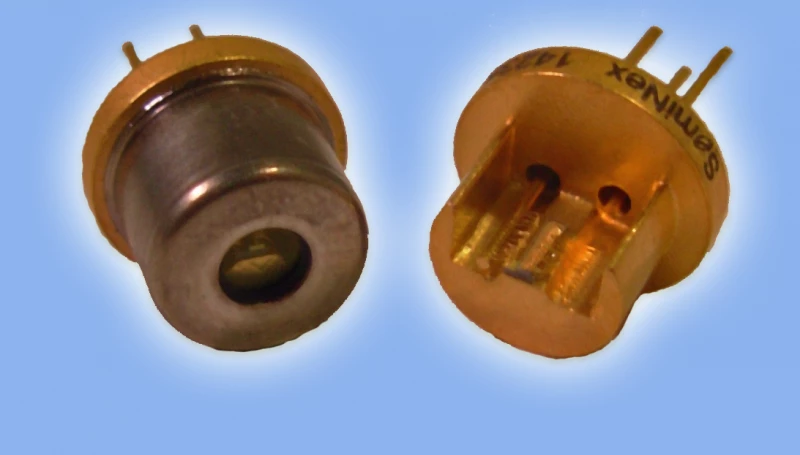

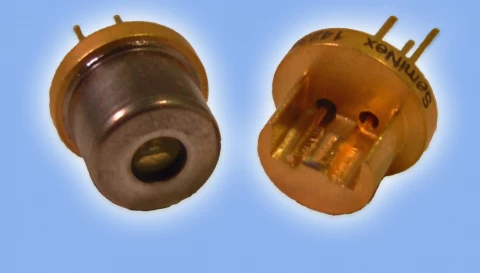

TO-9 Packaged Laser
Specifications |
|
|---|---|
| Center Wavelength: | 1.55 um |
| Output Power: | 2500 mW |
| Wavelength λc: | 1465 nm (±20) |
| Slope Efficiency ηo: | 0.30 W/A |
| Fast Axis Divergence θ_X: | 28 deg FWHM |
| Slow Axis Divergence θ_Y: | 9 deg FWHM |
| Threshold Current Ith: | 0.5 A |
| Operating Current Iop: | 7 A |
| Operating Voltage Vop: | 1.4 V |
| Weight: | 1.9 g |
| Operating Temperature: | 10 to 30 °C |
| Storage Temperature: | -20 to 80 °C |
Features
- High Power Output: Delivers up to 2.5 Watts CW, providing exceptional performance for demanding applications.
- Infrared Wavelength Range: Operates between 1310 nm and 1670 nm, with standard wavelengths at 1310, 1450, 1550, 1635, and 1670 nm.
- Customizable Wavelengths: Tailored solutions available to meet specific optical and electrical performance requirements.
- High Dynamic Power Range: Ensures flexibility and adaptability across various applications.
- High Efficiency: Optimized for superior power conversion efficiency, reducing energy consumption.
- Standard Low-Cost Package: Offers cost-effective solutions without compromising on quality or performance.
Applications
- Medical Laser Equipment: Ideal for medical laser equipment, providing precise and reliable performance.
- LIDAR: Suitable for LIDAR systems, enhancing detection and ranging capabilities.
- Free Space Optical Communication: Supports free space optical communication, ensuring robust data transmission.
- DPSS Pump Lasers: Effective as DPSS pump lasers, offering high efficiency and reliability.
- Military / Aerospace: Applicable in military and aerospace sectors, meeting stringent performance standards.
Frequently Asked Questions
The SemiNex TO-9 Packaged Laser can output up to 2.5 Watts CW power.
The standard wavelengths of the SemiNex TO-9 Packaged Laser are 1310, 1450, 1550, 1635, and 1670nm.
The applications of the SemiNex TO-9 Packaged Laser include medical, LiDAR, free space optical communication, DPSS pump lasers, military, and aerospace.
The features of the SemiNex TO-9 Packaged Laser include high output power, high dynamic power range, high efficiency, and standard low cost package.
The operating temperature range of the SemiNex TO-9 Packaged Laser is 10 to 30°C.
