B-Mounted Laser Diode
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
SemiNex Corporation, located in Peabody, MA, is renowned for delivering the highest power available at infrared wavelengths ranging from 13xx to 17xx nm. Our commitment to excellence ensures that when necessary, we can further optimize the design of our InP laser chips to meet specific optical and electrical performance needs of our customers. Each diode, bar, and package is rigorously tested to align with customer and market performance demands, ensuring the highest quality and reliability.
Our high-power multi-mode and single-mode lasers offer an impressive 6.2 Watts of continuous wave (CW) power, available in standard wavelengths such as 1310, 1450, 1470, 1532, 1550, and 1625 nm. Additionally, we provide custom wavelengths to cater to unique requirements, along with lensed options to enhance performance. These lasers are designed to deliver high output power, a broad dynamic power range, and superior efficiency, all encapsulated within a standard low-cost package.

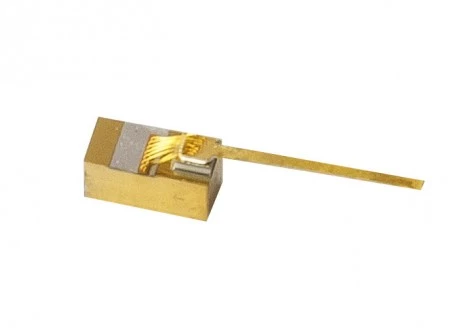

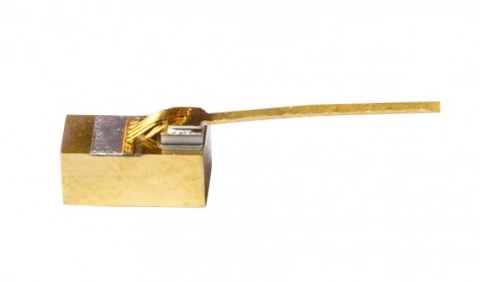

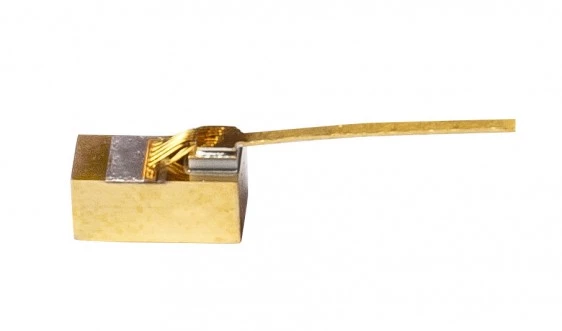

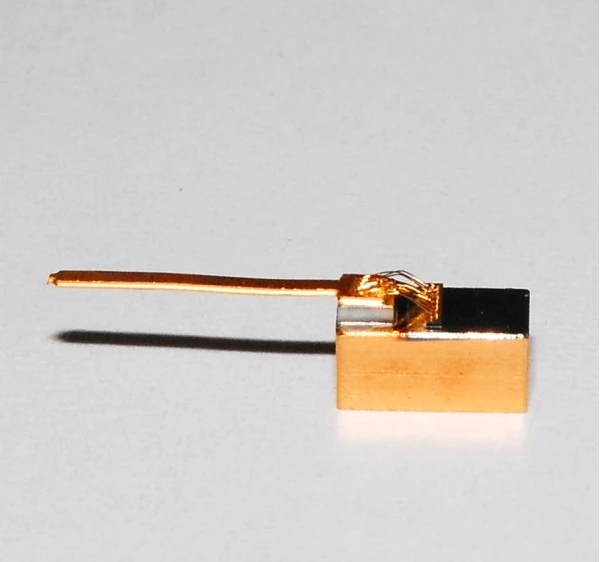

The B-Mount configuration is a standout offering from SemiNex, featuring lensed versions that often reduce the fast axis to match a slow axis divergence of 9 degrees. This versatility allows for multiple custom options to be explored and implemented based on specific application needs. Our B-Mount lasers are built to perform, with typical optical wavelengths ranging from 1310 nm to 1650 nm and output power levels tailored to each wavelength's unique specifications.
SemiNex Corporation stands ready to discuss your specific requirements and provide additional details to ensure that our laser solutions meet and exceed your expectations. For further inquiries, please contact our sales team who are eager to assist you with tailored solutions that match your precise needs.
B-Mounted Laser Diode
Specifications |
|
|---|---|
| Center Wavelength: | 1.47 um |
| Output Power: | 5700 mW |
| Optical Wavelength λ: | 1310 - 1650 nm |
| Chip Cavity Length CL: | 2500 µm |
| Emitter Width W: | 95 µm |
| Emitter Height H: | 1 µm |
| Spectral Width Δλ: | 10 - 15 nm 3dB |
| Slope Efficiency η: | 0.22 - 0.5 W/A |
| Fast Axis Div. θ_perp: | 28 deg FWHM |
| Slow Axis Div. θ_parallel: | 9 deg FWHM |
| Threshold Current I_th: | 0.5 A |
| Operating Current I_op: | 13 - 14 A |
| Operating Voltage V_op: | 1.7 - 1.8 V |
| Weight: | 0.5 g |
| Operating Temp.: | 10 to 30 °C |
| Storage Temp.: | -20 to 80 °C |
Features
- High Power Output: Delivers up to 6.2 Watts of continuous wave (CW) power for demanding applications.
- Wide Wavelength Range: Available at wavelengths of 1310, 1450, 1470, 1532, 1550, and 1625 nm with custom wavelengths available upon request.
- Customizable Options: Lensed options are available, allowing for tailored divergence to meet specific requirements.
- High Dynamic Power Range: Ensures adaptability for various operational needs.
- High Efficiency: Designed for optimal power conversion efficiency, enhancing performance and reducing energy consumption.
- Cost-Effective Packaging: Standard low-cost package options available to suit budget constraints.
- Robust Mechanical Design: Features a durable build with a weight of 0.5 g and operational temperature range of 10°C to 30°C.
- Reliable Performance: Tested to meet customer and market performance demands, ensuring consistent and reliable operation.
- Custom Solutions: SemiNex offers further optimization of InP laser chips to meet specific optical and electrical performance needs.
Applications
- Medical Laser Equipment: Delivers high power for advanced therapeutic and surgical laser systems.
- LIDAR Systems: Ideal for long-range and high-resolution light detection and ranging applications.
- Free Space Optical Communication: Supports high-speed data transmission with minimal signal loss.
- DPSS Pump Lasers: Functions as an efficient pump source for diode-pumped solid-state lasers.
- Military and Aerospace Systems: Suitable for targeting, illumination, and advanced sensing applications.
Frequently Asked Questions
SemiNex B-Mounted Laser Diodes come in a variety of power configurations, with multi-mode or single-mode up to 6.2 Watts CW power.
SemiNex B-Mounted Laser Diodes are provided across the InP wavelength range of 12xx to 19xx, with standard wavelengths of 1310, 1450, 1470, 1532, 1550, and 1625nm.
SemiNex B-Mounted Laser Diodes are suitable for a variety of applications, including medical laser equipment, LiDAR, free space optical communication, DPSS pump lasers, military, and aerospace.
Yes, custom wavelengths are available for SemiNex B-Mounted Laser Diodes.
SemiNex also offers lensed versions of B-Mount lasers, with the fast axis often reduced to match the slow axis divergence of 9 degrees. Multiple custom options are also available.
