SCW 1731F-D40R Pulsed DFB Laser Diode Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The SCW 1731F-D40R laser diode module is a sophisticated device engineered for precision and high performance in optical test equipment applications. Encased in a robust 14-pin DIL package, this 1650 nm Al RWG DFB laser diode is designed to meet the demanding requirements of modern optical systems. The integration of a thermoelectric cooler and an electrically isolated temperature sensing thermistor ensures optimal functionality and reliability, even in challenging environments.
This laser diode module is optically coupled to an SMF fiber pigtail, providing seamless connectivity and superior optical output. The SCW 1731F-D40R is specifically crafted to deliver high peak pulsed optical power, making it an ideal choice for applications where precision and power are paramount. Furthermore, its compliance with RoHS standards underscores its commitment to environmental responsibility and safety.
The SCW 1731F-D40R is manufactured by OSI Laser Diode, Inc., a reputable company located in Edison, NJ, USA, known for its dedication to quality and innovation. The module is backed by the company's ISO 9001:2008 certification, ensuring that it meets the highest standards of manufacturing excellence. With a focus on providing reliable and efficient solutions, OSI Laser Diode, Inc. continues to lead the industry in laser diode technology.
SCW 1731F-D40R Pulsed DFB Laser Diode Module
Specifications |
|
|---|---|
| Center Wavelength: | 1.65 um |
| Output Power: | 40 mW |
| Operating Temp. Range: | oC |
| Threshold Current: | 40 mA |
| Spectral Width (RMS): | 0.5 nm |
| Cooling Capacity: | 45 oC |
| Fiber Length: | 1 METER |
Features
- Wavelength: The SCW 1731F-D40R laser diode module operates at a center wavelength of 1650 nm, making it ideal for optical test equipment applications.
- High Peak Pulsed Optical Power: Delivers an optical power of 40 mW when pulsed, suitable for demanding applications such as OSA/OTDR.
- Package Type: Packaged in a 14-pin DIL package, ensuring compatibility with a wide range of systems.
- Thermoelectric Cooler and Thermistor: Equipped with a thermoelectric cooler and an electrically isolated temperature sensing thermistor for precise temperature control.
- Operating Temperature Range: Can operate in temperatures ranging from -30°C to 70°C, ensuring reliability in various environments.
- RoHS Compliant: Environmentally friendly and adheres to RoHS standards.
- Fiber Coupling: Optically coupled to an SMF fiber pigtail with a standard fiber length of 1 meter.
Applications
- Optical Test Equipment: Designed for applications where high peak pulsed optical power is required.
- OSA/OTDR Applications: Suitable for Optical Spectrum Analyzer and Optical Time-Domain Reflectometer applications.
- Temperature Control: Includes a thermoelectric cooler and a temperature sensing thermistor for precise temperature management.
- RoHS Compliant: Environmentally friendly design adhering to the Restriction of Hazardous Substances Directive.
- High Performance: Offers a center wavelength of 1650 nm with a spectral width of 0.5 nm.
- Durable and Reliable: Operates effectively within a temperature range of -30°C to 70°C, with a storage range of -40°C to 85°C.
- Safety Features: IEC Class 1 laser product with standard ESD precautions and normal aversion reactions for eye protection.
- Customization: Detailed package drawings available upon request for specific application needs.
Frequently Asked Questions
The wavelength of the SCW 1731F-D40R laser diode module is 1650 nm.
The SCW 1731F-D40R laser diode module is specifically designed for optical test equipment applications where high peak pulsed optical power is desired.
Yes, the SCW 1731F-D40R laser diode module is RoHS compliant.
The warranty details for the SCW 1731F-D40R laser diode module can be found in the product purchase agreement or by contacting the LDI sales representative.

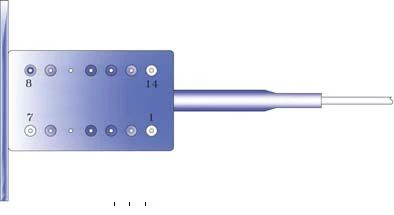

The pin assignments for the SCW 1731F-D40R laser diode module are as follows: Pin 1 - Cooler Anode (+), Pins 2, 3, 4, 6, 7, 8, 13 - No Connection, Pin 5 - Laser Anode (+), Ground, Pin 9 - Laser Cathode (-), Pin 10 - Ground, Pins 11, 12 - Thermistor, Pin 14 - Cooler Anode (-).
