RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser (20mw)

Name: RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser (20mw)
Brand: RIO (OptaSense, Inc)
Availability: InStock

Description

The RIO019x Series devices are high-performance cost effective External Cavity Laser (ECL). The design is based on RIO’s proprietary planar technology (PLANEX™) and consists of a gain chip and a planar lightwave circuit including waveguides with Bragg gratings, forming a laser cavity with significant advantages.

PLANEX™ laser combines high performance, comparable with long cavity fiber lasers, with the low cost, simplicity, small size and reliability of semiconductor lasers.

PLANEX™ laser is an ideal source for multiple commercial and military fiber optic sensors applications, including interferometric and Brillouin DTSS systems for oil & gas, security and smart infrastructures monitoring, coherent Doppler LIDAR for wind measurements, coherent and heterodyne metrology, photonic velocimetry and vibrometry, and coherent communications. Laser is available with various wavelength, phase noise and output power options.

Specifications

Center Wavelength:	1.55 um
Output Power:	20 mW
Side Mode Suppression Ratio:	40 dB
Center Wavelength (ITU Grid):	nm
Relative Intensity Noise (>/= 1kHz):	-140 dB/Hz
Polarization Extinction Ratio:	20 dB
Wavelength Tunability:	30 dB

Download Data Sheet

Features

Single Longitudinal Mode: Ensures precise and stable laser operation

Center Wavelength: 1530nm-1565nm, ITU-T DWDM 100 GHz C-band or custom options available

Very Narrow Linewidth: Provides long coherence length for high-resolution applications

Very Low Phase Noise: Ideal for applications requiring high signal fidelity

Wavelength Tunability: Offers flexibility for various applications

Ultra Low RIN (Relative Intensity Noise): Enhances signal quality and performance

Excellent SMSR (Side Mode Suppression Ratio): Ensures clean signal output

Excellent Wavelength Stability: Maintains performance over life and temperature variations

Low Sensitivity to Vibration and Acoustic Noise: Ensures reliable operation in dynamic environments

CW, Modulated, and Pulsed Operations: Versatile for different application needs

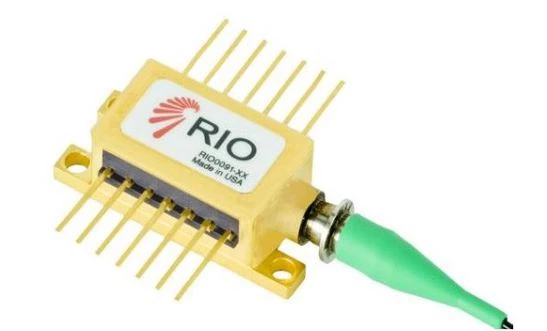

Small Form Factor: Compact 14-pin butterfly package

Low Power Dissipation: Energy-efficient design

SMF and PM Fiber Pigtail Options: Provides connectivity flexibility

Telcordia GR-468 Qualified: Meets industry standards for reliability

RoHS Compliant: Environmentally friendly design

Applications

Acoustic & seismic interferometric fiber optic sensing

Defense and security

Oil & Gas – exploration and production

LIDAR

Metrology

RF and microwave photonics

Coherent Communications

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

RIO (OptaSense, Inc)

On FindLight:

since 2015

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser?

The RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser is a high-performance cost-effective External Cavity Laser (ECL) that combines high performance with the low cost, simplicity, small size, and reliability of semiconductor lasers.

What are the features of the RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser?

The features of the RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser include single longitudinal mode, center wavelength of 1530nm-1565nm, ITU-T DWDM 100 GHz C-band or custom, very narrow linewidth, long coherence length, very low phase noise, wavelength tunability, ultra-low RIN, excellent SMSR, excellent wavelength stability over life and temperature, low sensitivity to vibration and acoustic noise, CW, modulated and pulsed operations, small form factor, 14 pin butterfly, low power dissipation, SMF and PM fiber pigtail options, Telcordia GR-468 qualified, and RoHS compliant.

What are the applications of the RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser?

The applications of the RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser include acoustic & seismic interferometric fiber optic sensing, defense and security, oil & gas – exploration and production, LIDAR, metrology, RF and microwave photonics, and coherent communications.

Is the RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser wavelength tunable?

Yes, the RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser is wavelength tunable.

What are the wavelength, phase noise, and output power options available for the RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser?

The RIO PLANEX™ Series 1550nm Low Phase Noise Narrow Linewidth External Cavity Laser is available with various wavelength, phase noise, and output power options.
