RIO ORION™ Series 1550nm Low Phase Noise Narrow Linewidth Laser Module (10mW)
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
RIO (OptaSense, Inc) -
On FindLight:
since 2015
Description
The ORION™ devices are compact laser modules employing the RIO high-performance External Cavity Laser (ECL). This laser design is based on RIO’s proprietary planar technology (PLANEX™) and consists of a gain chip and a planar lightwave circuit including waveguides with Bragg gratings, forming a laser cavity with significant advantages.
The ORION™ modules provide a stable, self-contained, easy-touse alternative to complicated, sensitive to the ambient environment and expensive fiber laser sources, or other narrow linewidth laser alternatives.
The ORION™ module uses reliable, Telcordia qualified and industry proven components, and employs low noise, digital laser bias current and temperature control circuitry to set and monitor laser performance. External monitoring and control can be accomplished via a standard interfaces, using RIO-supplied software. The ORION™ module is an ideal source for commercial and other fiber optic sensing applications, such as interferometric and Brillouin DTSS systems for oil & gas, security and smart infrastructures monitoring, coherent Doppler LIDAR for wind measurements, coherent and heterodyne metrology, photonic velocimetry and vibrometry, and coherent communications.

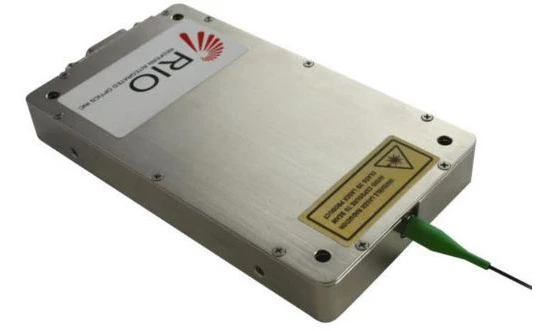

RIO ORION™ Series 1550nm Low Phase Noise Narrow Linewidth Laser Module (10mW)
Specifications |
|
|---|---|
| Center Wavelength: | 1.55 um |
| Output Power: | 10 mW |
| Power Stability: | +/-0.3 % |
| Center Wavelength (ITU Grid): | 1530 - 1565 nm |
| Wavelength Tuning Range: | 30 pm |
| Relative Intensity Noise (>1kHz): | -140 dB/Hz |
| Side Mode Suppression Ratio: | 40 dB |
| Optical S/N Ratio: | 60 dB |
| Polarization Extinction Ratio: | 20 dB |
| Optical Isolation: | 40 dB |
Features
- Single Longitudinal Mode: Ensures stable and precise laser output.
- Center Wavelength: 1530nm-1565nm, ITU-T DWDM 100 GHz C-band or custom options available.
- Very Low Phase Noise: Ideal for high-precision applications.
- Very Narrow Linewidth: Provides long coherence length for enhanced performance.
- Ultra Low RIN: Reduces noise for cleaner signal output.
- Excellent SMSR: Superior side mode suppression ratio.
- Unmatched Wavelength Stability: Reliable performance over lifespan and varying temperatures.
- Wavelength Tunability: Flexibility in applications requiring different wavelengths.
- Direct Power Modulation: Enables dynamic control of laser output.
- Low Sensitivity to Vibration and Acoustic Noise: Maintains performance in challenging environments.
- SMF and PM Fiber Pigtail Options: Versatile connectivity options.
- Compact Size, Low Power Dissipation: Efficient design for space and energy savings.
- Easy to Set-up and Use: User-friendly design for quick deployment.
- Digital Controller and Firmware: Multiple interface options including SPI, RS-232, RS-485.
- Telcordia GR-468 Qualified: Meets industry standards for reliability.
- RoHS Compliant: Environmentally friendly manufacturing.
Applications
- Acoustic & Seismic Interferometric Fiber Optic Sensing
- Defense and Security
- Oil & Gas – Exploration and Production
- Smart Infrastructure Monitoring
- Coherent Doppler LIDAR for Wind Measurements
- Coherent and Heterodyne Metrology
- Photonic Velocimetry and Vibrometry
- Coherent Communications
Frequently Asked Questions
The center wavelength range is 1530nm-1565nm, ITU-T DWDM 100 GHz C-band or custom.
The ORION™ module is an ideal source for commercial and other fiber optic sensing applications, such as interferometric and Brillouin DTSS systems for oil & gas, security and smart infrastructures monitoring, coherent Doppler LIDAR for wind measurements, coherent and heterodyne metrology, photonic velocimetry and vibrometry, and coherent communications.
The output power of the ORION™ module is 10mW.
The ORION™ module has very low phase noise and ultra low RIN.
The ORION™ module uses low noise, digital laser bias current and temperature control circuitry to set and monitor laser performance. External monitoring and control can be accomplished via standard interfaces, using RIO-supplied software. The digital controller and firmware have multiple interface options (SPI, RS-232, RS-485).
