Description
The MultiLux™-20-40-46-CW-SYST is a cutting-edge laser system designed to deliver high brightness and power across multiple wavelengths, making it an exceptional choice for those seeking advanced infrared laser solutions. This turn-key system offers multiwatt continuous wave power output at room temperature for short wavelength infrared (SWIR) and two midwave infrared (MWIR) wavelengths. The laser outputs are meticulously engineered to be collinear and collimated, ensuring optimal beam quality with a remarkably low M² value. This superior beam quality is crucial for applications requiring precision and long-distance projection.
This advanced system is capable of providing over 3 watts of continuous wave power at wavelengths ranging from 4.4 µm to 4.8 µm, over 2 watts at 3.7 µm to 4.2 µm, and over 3 watts at 1.9 µm to 2.1 µm. The precision alignment ensures that the collinearity between the laser outputs is better than 1 milliradian, allowing for seamless integration into various applications. Each laser wavelength's power output can be independently controlled and modulated with arbitrary pulse sequences, offering unmatched flexibility. Additionally, the system can be customized with other combinations of SWIR, MWIR, and long wave infrared (LWIR) wavelengths to meet specific requirements.

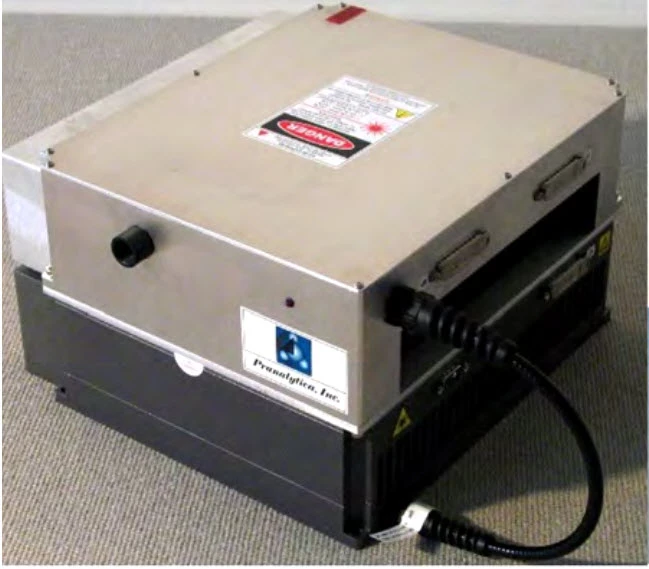

The MultiLux™-20-40-46-CW-SYST is not just about power; it is about precision and adaptability. The laser head features a SWIR fiber laser and two hermetically encapsulated MWIR lasers, each with its own thermoelectric cooler and collimating lens. The beam combining optics ensure a single collimated beam containing all three wavelengths, with the beams aligned to be nearly identical in diameter and collinear. The system is air-cooled and includes a comprehensive laser protection system, making it robust and reliable for various environments. With its compact design and lightweight construction, it is easy to integrate into existing setups, providing a versatile solution for advanced laser applications.
MultiLux Series QCL System
Specifications |
|
|---|---|
| Center Wavelength: | 2 um |
| Output Power: | 3000 mW |
| Model: | MultiLux™-20-40-46-CW-SYST |
| MWIR 1 Power Output: | Up to 2 W |
| MWIR 2 Power Output: | Up to 3 W |
| SWIR Wavelength: | 2.0 ± 0.1 µm |
| MWIR 1 Wavelength: | ~4.0 ± 0.15 µm |
| MWIR 2 Wavelength: | ~4.6 ± 0.15 µm |
| Beam Quality (M^2): | < 1.2 |
| Physical Dimensions: | 10” x 10” x 6.5” |
| Weight: | 20 lbs |
| Collinearity: | < 1 milliradian |
| Communication Interfaces: | RS 422/485; RS232/485/422 |
Features
- High Brightness, Multiple Wavelength Laser System: The MultiLux™-20-40-46-CW-SYST offers a powerful combination of SWIR, MWIR, and LWIR laser outputs, providing multiwatt continuous wave power at room temperature.
- Collinear and Collimated Laser Outputs: All three laser outputs are collinear and collimated, ensuring excellent beam quality with very low M2, ideal for long-distance projection in defense and homeland security applications.
- Configurable Power Output: The system can be configured to provide:
- > 3 W of CW/RT power at 4.4 µm to 4.8 µm
- > 2 W of CW/RT power at 3.7 µm to 4.2 µm
- > 3 W of CW/RT power at 1.9 µm to 2.1 µm
- Precision Beam Alignment: The collinearity between laser outputs is better than 1 milliradian, ensuring precise alignment and projection over long distances.
- Individual Power Control: Power output at each wavelength can be individually controlled and modulated with arbitrary pulse sequences.
Applications
- Defense and Homeland Security Applications: The MultiLux™-20-40-46-CW-SYST provides high brightness and power with excellent beam quality, suitable for various defense and homeland security purposes.
- Long Distance Projection: The collinearity and beam quality allow for effective projection over long distances, making it ideal for applications requiring precision and range.
- Customizable Wavelengths: The system can be configured to provide specific wavelengths with precise power outputs, allowing for tailored solutions in different scenarios.
- Arbitrary Pulse Sequences: Power output at each wavelength can be modulated with arbitrary pulse sequences, offering flexibility in operation.
- Beam Combining Optics: Provides a single collimated beam containing all three wavelengths, ensuring uniformity and alignment for efficient use.
- Air Cooled Operation: The system is designed for air-cooled operation, simplifying installation and maintenance.
- Laser Protection System: Features a built-in laser protection system to ensure safe operation.
- Compact and Lightweight Design: With dimensions of approximately 10” x 10” x 6.5” and a weight of 20 lbs, the system is portable and easy to integrate into existing setups.
Frequently Asked Questions
The MultiLux Series QCL System is a high brightness, high power multiple wavelength laser system that provides multiwatt of continuous wave room temperature power output at one short wavelength infrared (SWIR) and two midwave infrared (MWIR) wavelengths.
The collinearity between the combined laser outputs at the three wavelengths is better than 1 milliradian, which coupled with the excellent beam quality of all three lasers allows projection over long distances.
The MultiLux Series QCL System is suitable for military and scientific applications.
The Laser Head of the MultiLux Series QCL System weighs approximately 20 lbs.
The maximum square wave pulse modulation frequency of the MultiLux Series QCL System is MWIR lasers: 100 kHz, 3 dB rollover point; SWIR laser: 5 kHz, 3 dB rollover point.
