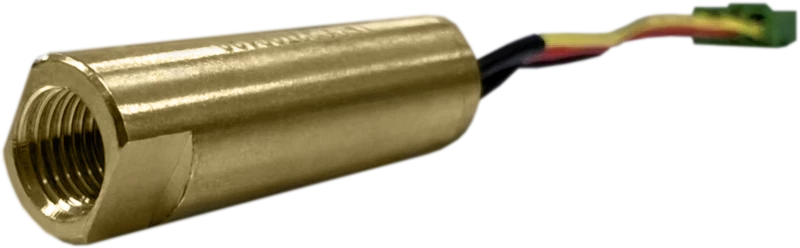

The EEL M6.5 AD79040003 is a compact 793 nm, 4 mW laser diode module engineered for OEMs and system integrators who require high stability, precise beam geometry, and long service life in a standard mechanical format. Built around a glass-lens collimation system and housed in an M6.5 industry-standard package, this module offers a reliable, ready-to-integrate light source for sensing, positioning, and navigation applications where consistent performance over time is critical.

Operating in the near‑infrared spectrum with a peak emission wavelength centered at 793 nm (775–800 nm range), the EEL M6.5 delivers stable continuous‑wave optical output of 4 mW. The device is designed for low power consumption, with a maximum operating current of 28 mA and operating voltage up to 2.3 V, making it easy to drive from compact, battery‑powered electronics. Thanks to its carefully controlled optical axis deviation and collimated beam, the module maintains a spot size of less than 15 mm at 6 m, which supports accurate distance measurement, object detection, and alignment tasks.

This laser module is engineered with high shock and vibration resistance, giving it a high seismic coefficient compared with many standard emitter‑lens assemblies used in mobile and industrial systems. The robust optomechanical design and high‑quality glass lens help preserve beam alignment and focus even under continuous motion, impacts, and mechanical stress. With a mean time to failure (MTTF) of more than 20,000 hours under specified operating conditions, the EEL M6.5 enables long maintenance intervals and reduces downtime in high‑duty‑cycle environments.

The operating temperature range of −10 °C to +60 °C and storage range of −40 °C to +85 °C provide ample headroom for integration in field‑deployed instruments and mobile platforms. Compared with many generic diode‑plus‑lens solutions, the EEL M6.5 module is pre‑aligned and thermally managed at the design level, helping minimize output drift and beam wander across the specified temperature range. This level of stability is particularly beneficial in applications such as SLAM (simultaneous localization and mapping), where sensor fusion algorithms depend on consistent optical references.

Mechanically, the M6.5 format is a common, standardized cylindrical size widely adopted across sensors, industrial equipment, and embedded robotics. Using this standard footprint allows design teams to shorten development cycles and reduce mechanical engineering overhead, since existing mounts, brackets, and housings can often be reused. The small size and low mass further simplify integration into compact sensor heads, gimbals, and mobile platforms where weight and space budgets are tight.

The EEL M6.5 AD79040003 is especially well suited for use in infrared sensors, sweeper and service robots, barcode scanning heads, and SLAM‑based navigation modules. In these use cases, its tightly controlled optical axis deviation improves measurement accuracy and repeatability, while the stable 4 mW output supports reliable detection on a wide range of surfaces and at varying working distances. Its glass lens delivers better long‑term optical stability and resistance to scratching and environmental effects than typical plastic optics, which helps maintain calibration over the life of the device.

The module is intended for integration by experienced OEMs who can implement appropriate drive electronics, surge protection, and electrostatic discharge (ESD) safeguards around the diode. To fully leverage its rated lifetime and stability, it should be driven within the specified current and voltage limits using a low‑noise, constant‑current driver that avoids current spikes during power‑up and power‑down. When basic handling precautions and recommended soldering profiles are followed, the EEL M6.5 AD79040003 provides a durable, accurate, and efficient near‑infrared laser source for a broad range of sensing and positioning applications.
