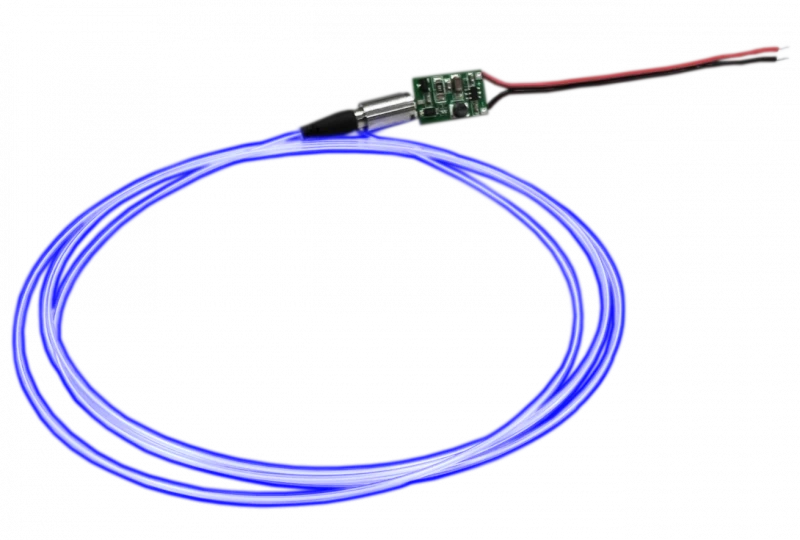

M6.5 450 nm 85 mW EEL Laser Module – Compact, High Stability

Description

The EEL M6.5 is a premier 450nm diode laser module known for its unmatched optical quality and clarity. Designed for precision, this module guarantees high stability and delivers a consistently robust optical output power, making it a leader in the 650nm category. One of its standout features is its remarkable shock resistance coefficient, ensuring it remains unfazed by external disruptions.

With a Mean Time To Failure (MTTF) that exceeds 20,000 hours, this 450nm diode laser module promises both durability and extended operational life. Its compact and lightweight design not only ensures easy integration but also underlines its advanced engineering. The meticulous design also ensures minimal optical axis deviation, which, in turn, results in heightened measurement accuracy for users.

The universally recognized M6.5 dimension is especially tailored for businesses keen on leveraging the benefits of a standard 450nm diode laser module size. Perfect for initial product development stages, the EEL M6.5 accelerates the production process, ensuring your product achieves market readiness swiftly.

Specifications

Center Wavelength:	0.45 um
Output Power:	85 mW
CW Optical Power:	85 mW
Operating Current:	84 mA
Operating Voltage:	5.1 V
Wavelength At Peak Emission:	450 nm
Operating Temp. Range:	-10 to 70 °C

Download Data Sheet

Features

Common public version, saving development costs
High stability
High seismic coefficient

Applications

Sensing Devices: Perfect for sensors of various kinds.
Robotics: Appropriate for use in sweeper robots.
Scanning: Ideal for barcode scanning applications.
Mapping: Suitable for SLAM (Simultaneous Localization and Mapping).

Add to Watchlist (My Watchlist)

Ships from:

Taiwan

Sold by:

LECC Technology Co., Ltd.

On FindLight:

since 2023

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the blue diode laser module EEL M6.5 used for?

The EEL M6.5 is used in applications such as sensors, sweeper robots, barcode scanning, and SLAM (Simultaneous Localization and Mapping).

What are the key features of the EEL M6.5 blue laser diode?

The key features of the EEL M6.5 include good optical quality, high stability, stable optical output power, high shock resistance, and a small size and light weight.

What is the typical optical power output of the EEL M6.5 blue diode laser?

The typical continuous wave (CW) optical power output of the EEL M6.5 is 85 mW.

What precautions should be taken when handling the EEL M6.5?

Precautions include grounding the device and circuits, wearing anti-static clothing and wrist straps, using anti-static containers for transport and storage, and designing circuits to avoid excessive current spikes.

What is the wavelength range of the EEL M6.5?

The wavelength at peak emission for the EEL M6.5 ranges from 440 nm to 460 nm, with a typical value of 450 nm.

What are the operating temperature limits for the EEL M6.5 blue laser?

The operating temperature range for the EEL M6.5 is from -10°C to 70°C.

What safety measures should be taken when using the EEL M6.5?

When the laser diode is in operation, avoid looking directly into the laser beam with naked eyes or through lenses. It is recommended to use safety goggles to prevent eye damage.
