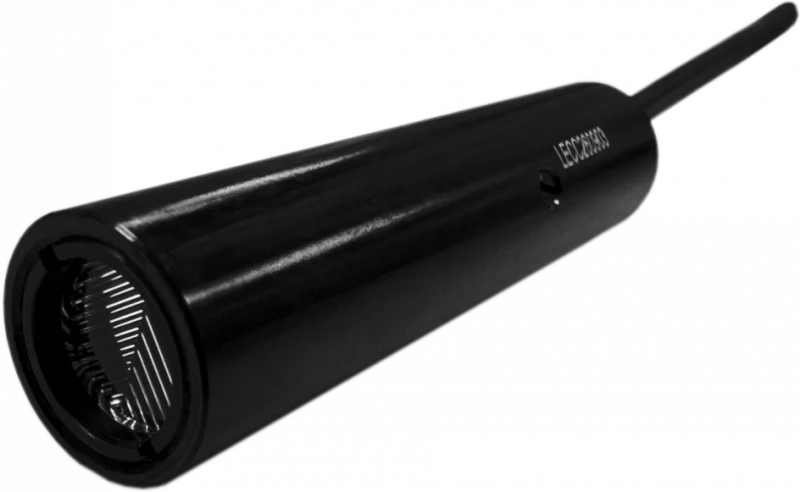

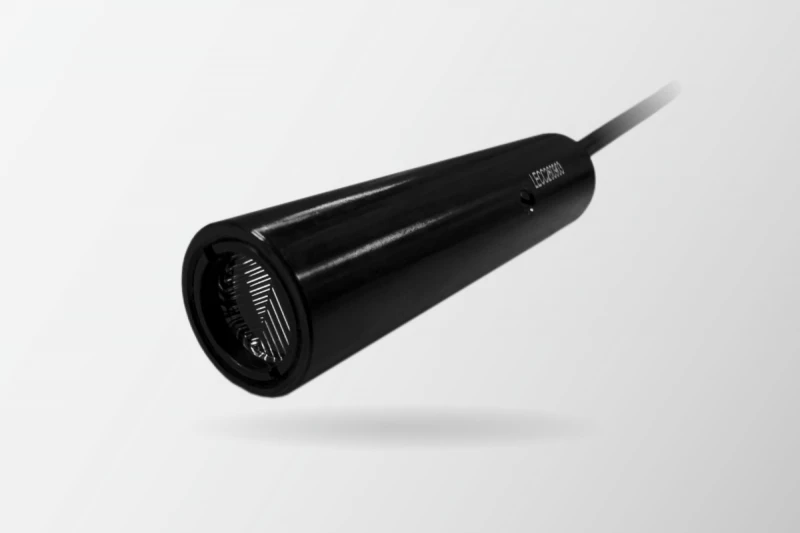

EEL M12 AL52010001 650nm 1–2mW Laser Module – Compact Red Line Laser for Precision Targeting and Sensing

The EEL M12 AL52010001 is a compact, industrial‑grade 650 nm red laser module designed for applications that demand stable output, excellent thermal performance, and a rugged mechanical structure. Housed in a common M12 cylindrical form factor, this diode module delivers a continuous‑wave optical power of up to 1–2 mW, making it ideal for precision positioning, alignment, and targeting in both consumer and professional systems. Its Class 2M compliant output supports use in environments where visible guidance and eye‑safe power levels are required when operated under proper conditions and safety practices.

Engineered with an integrated APC (Auto Power Control) driving circuit, the EEL M12 AL52010001 offers highly stable optical power across its operating temperature range of −10 °C to 40 °C. This internal regulation protects the laser diode from power fluctuations and helps minimize output drift over time, improving reliability in continuous or duty‑cycled operation. The specified operating voltage of 3–5 V and maximum operating current of 200 mA allow the module to interface easily with common low‑voltage power systems, embedded controllers, and portable electronics without the need for complex external driver designs.

The module’s robust aluminum housing undergoes an anode surface treatment that enhances mechanical strength, corrosion resistance, and long‑term stability in industrial and medical environments. This construction ensures superior heat dissipation from the laser diode to the ambient environment, supporting consistent performance and extended lifetime. The exterior appearance color of the housing can be customized on request, enabling integration with brand‑specific designs or color‑coded systems. A glass lens at the optical output delivers high transmission, low distortion, and excellent resistance to temperature and environmental changes compared with plastic optics.

Designed around one of the most widely adopted public M12 form factors, the EEL M12 AL52010001 dramatically reduces early‑stage development costs. Because the mechanical footprint aligns with common industry standards, developers can avoid custom mold tooling and proprietary housings that are often required for non‑standard modules. This compatibility streamlines mechanical design, simplifies upgrades from lower‑performance modules, and ensures that manufacturing can move quickly from prototyping to mass production. The ability to order in volume without lengthy re‑qualification steps makes this laser module particularly attractive for OEMs planning scalable deployments.

Optically, the module is optimized to produce a sharp, well‑defined line at typical working distances. At 1150 mm, the line width is approximately 1.5 mm, providing a fine, high‑visibility reference for alignment, measurement, and user guidance. A fan angle of about 110 degrees delivers a wide field of coverage, suitable for large‑area indication in AR/VR/MR systems, heads‑up displays, and user‑interactive interfaces. The visible 650 nm red output is easily detected by both the human eye and many camera sensors, supporting optical tracking, gesture systems, and position feedback loops.

In medical and biomedical equipment, the EEL M12 AL52010001 is well suited for measurement positioning, reference markers, and device aiming where a fine, stable line and compact footprint are critical. In AR, VR, and MR platforms, it can serve as a visible alignment aid, calibration source, or optical marker integrated into headsets, controllers, or environmental sensors. The module also functions effectively as a low‑power aiming device in targeting and sighting systems, where repeatable beam geometry and minimal drift over time improve user accuracy and system calibration.

From an integration standpoint, this laser module is designed for straightforward mechanical and electrical incorporation into existing platforms. The M12 cylindrical format allows intuitive mounting into threaded holders, brackets, and adjustable focus assemblies frequently used in industrial automation, machine vision alignment, and laboratory setups. The combination of APC drive circuitry, robust aluminum housing, and glass optics provides a balanced solution of performance, cost, and reliability for OEM designers who need a ready‑to‑deploy, low‑maintenance red line laser engine.
