SMD | Laser Module (638nm | 100mW)
Description

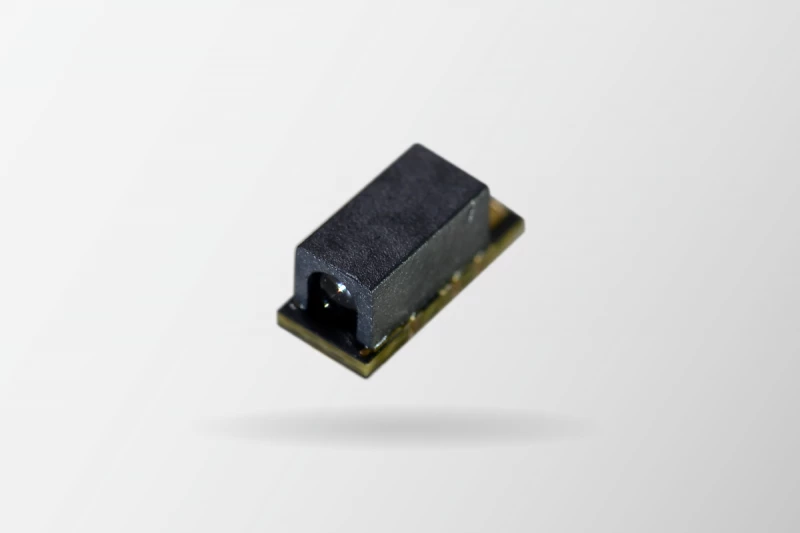

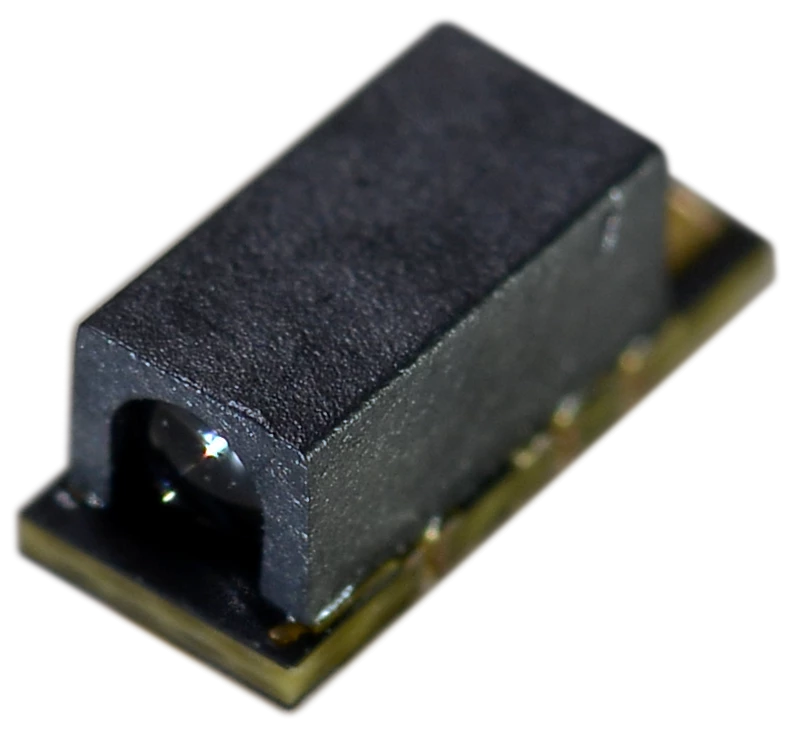

The LECC AD65040009 SMD Laser Module redefines miniaturization in laser technology, offering the industry's smallest laser module with a compact 2.5×2.65×6.15 mm package. Utilizing advanced Edge Emitting Laser (EEL) technology and a high-temperature-resistant aspherical glass lens, this module delivers superior optical performance and reliability.
Designed with versatility in mind, the AD65040009 supports both SMD and DIP welding methods, facilitating automated, efficient production. Integrated with an NTC temperature detection mechanism, it ensures stable operation across a wide temperature range, making it ideal for miniaturized applications such as high-end PM2.5 air particle sensors.
Operating at 650 nm with an output power up to 4 mW, this laser module offers excellent spot control and energy efficiency. Its compact design, combined with temperature adaptation features, enables seamless integration into modern sensor systems and automated production lines, saving manpower and production time.
Perfect for air quality monitoring and precision optical sensing, the LECC AD65040009 sets a new standard in compact laser module performance, reliability, and ease of integration.
SMD | Laser Module (638nm | 100mW)
Specifications |
|
|---|---|
| Center Wavelength: | 0.65 um |
| Output Power: | 4 mW |
| CW Optical Power: | 2.5 mW |
| Operating Current: | 17 mA |
| Operating Voltage: | 2.2 V |
| Wavelength At Peak Emission: | 650 nm |
| Operating Temp. Range: | -10 to 70 °C |
| Storage Temp. Range: | -40 to 85 °C |
| Spot Size At 5mm: | 200 um |
| Lens Material: | Glass Lens |
| Package Dimensions (L×W×H): | 2.5×2.65×6.15 mm |
Features
- Edge Emitting Laser (EEL) Technology: Delivers high optical quality and reliability
- Ultra-Compact Package: Industry-leading small size of 2.5×2.65×6.15 mm
- Temperature Detection Mechanism: Integrated NTC for thermal control and enhanced stability
- High-Quality Glass Lens: Aspherical design improves optical precision and durability
- Dual SMD and DIP Capability: Supports flexible soldering methods for easier manufacturing
- Supports Automated Production: Designed for efficient high-volume manufacturing
Applications
- Air Particle Sensors: Perfect for integration into PM2.5 air quality monitoring devices
- Optical Sensing Systems: Ideal for compact, high-precision sensor designs
- Industrial Automation: Suitable for use in automated inspection and measurement systems
- Medical Devices: Integration into miniaturized diagnostic and monitoring equipment
