Description

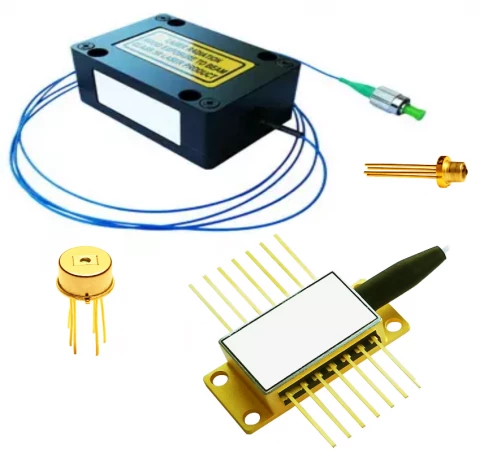

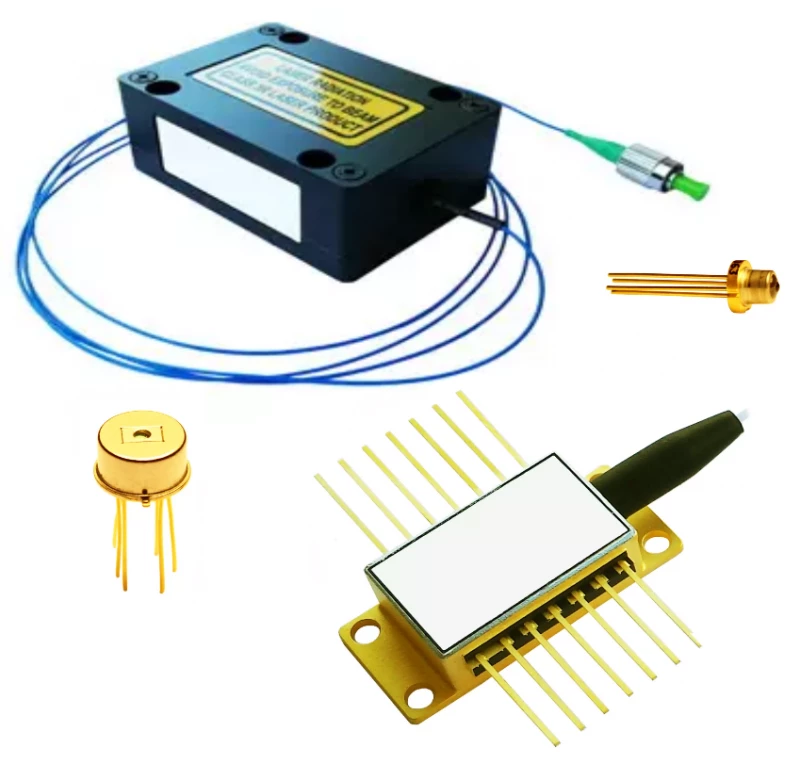

The REP series includes high-performance, tunable, single-frequency (DFB-like) diode lasers and Fabry-Perot laser diodes in wavelengths from 1270nm thru 2350nm, designed to address challenges in Gas Sensing, LIDAR, Spectroscopy, and Telecom. The REP series includes high-power and narrow linewidth options, covering various product ranges at the most popular wavelengths, and providing customizable units with multiple packaging options, including the Fiber coupled 14-pin butterfly, TO39 (w/TEC), and TO56.


Benefits:

  • Discrete-Mode manufacturing technology provides industry-leading performance and fully scalable, consistent production and integration capability.
  • Highly customizable units with several package options enable customers to choose the right product for their specific needs.
  • High-power and narrow linewidth options allow customers to optimize performance for their particular applications.
  • Various product ranges at the most popular wavelengths provide customers with a wide range of options to choose from.

REP1854-DM-B: Stabilized Narrow-Linewidth Laser Diode 1845-1920nm

Specifications

Center Wavelength: 1.854 um
Output Power: 3 mW
Forward Current: 140 mA
Forward Voltage: 1.6 V
TEC Current: 1 A
Reverse Voltage LD: 2.0 V
Case Temperature: 65 °C
Chip Submount Temperature: 50 °C
Storage Temperature: 85 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Integral TEC
  • PM/SMF Coupled with FC/APC
  • Built-in Optical Isolator

Applications

  • Telecommunications: Ideal for use in fiber optic communication systems due to its precision and reliability.
  • Spectroscopy: Suitable for various spectroscopic applications, providing accurate and stable light sources.
  • Biomedical Imaging: Can be used in medical imaging devices for enhanced imaging quality.
  • Industrial Sensing: Effective in industrial environments for monitoring and sensing applications.
  • Research and Development: A valuable tool for R&D in photonics and laser technology fields.
  • Metrology: Useful in precision measurement applications, ensuring high accuracy and repeatability.

Frequently Asked Questions

What is the REP1854-DM-B laser diode used for?
The REP1854-DM-B laser diode is designed for Gas Sensing, LIDAR, Spectroscopy, and Telecom applications.
What are the benefits of the REP1854-DM-B laser diode?
The benefits of the REP1854-DM-B laser diode include industry-leading performance, customizable units with several package options, high-power and narrow linewidth options, and a wide range of product options at popular wavelengths.
What are the features of the REP1854-DM-B laser diode?
The features of the REP1854-DM-B laser diode include integral TEC, PM/SMF coupled with FC/APC, built-in optical isolator, and a 14-pin butterfly package.
What is the maximum forward current for the REP1854-DM-B laser diode?
The maximum forward current for the REP1854-DM-B laser diode is 140 mA.
What is the laser safety rating for the REP1854-DM-B laser diode?
The REP1854-DM-B laser diode is a Class 3R Laser Product as defined by International Standard IEC 60825-1, Edition 3.

Got more questions? Use the inquiry form to ask the supplier directly.
