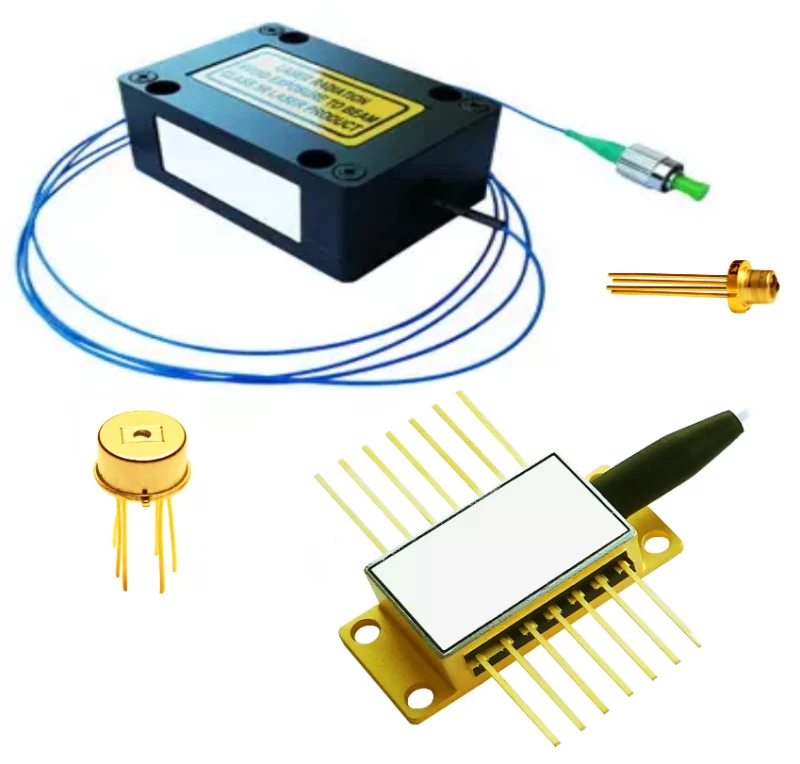

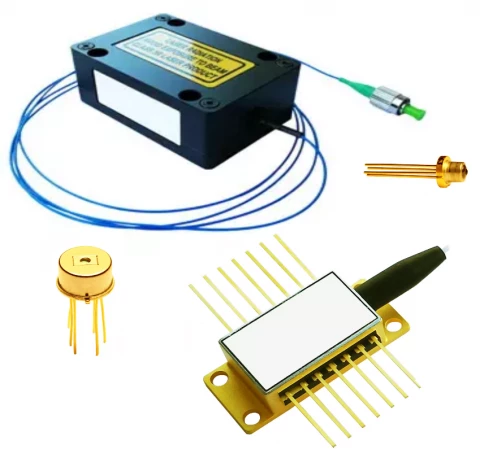

Thumbnail of REP1742-DM-B: Stabilized Narrow-Linewidth Laser Diode 1735-1770nm photo 1

Description

The REP series includes high-performance, tunable, single-frequency (DFB-like) diode lasers and Fabry-Perot laser diodes in wavelengths from 1270nm thru 2350nm, designed to address challenges in Gas Sensing, LIDAR, Spectroscopy, and Telecom. The REP series includes high-power and narrow linewidth options, covering various product ranges at the most popular wavelengths, and providing customizable units with multiple packaging options, including the Fiber coupled 14-pin butterfly, TO39 (w/TEC), and TO56.


Benefits:

  • Discrete-Mode manufacturing technology provides industry-leading performance and fully scalable, consistent production and integration capability.
  • Highly customizable units with several package options enable customers to choose the right product for their specific needs.
  • High-power and narrow linewidth options allow customers to optimize performance for their particular applications.
  • Various product ranges at the most popular wavelengths provide customers with a wide range of options to choose from.

REP1742-DM-B: Stabilized Narrow-Linewidth Laser Diode 1735-1770nm

Visit the RPMC Lasers, Inc. Store

Specifications

Center Wavelength: 1.742 um
Output Power: 8 mW
Forward Current: 140 mA
Forward Voltage: 2 V
TEC Current: 1.2 A
Reverse Voltage LD: 2 V
Case Temperature: -20 to 65 °C
Chip Submount Temperature: 0 to 50 °C
Storage Temperature: -40 to 85 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Integral TEC
  • PM/SMF Coupled with FC/APC
  • Built-in Optical Isolator

Applications

  • Telecommunications: Ideal for use in fiber optic communication systems due to its precision and reliability.
  • Sensing Applications: Suitable for various sensing technologies, including environmental and industrial monitoring.
  • Research and Development: Perfect for laboratory settings where precise wavelength control is necessary.
  • Medical Diagnostics: Can be used in medical equipment for diagnostics and therapeutic applications.
  • Metrology: Useful in precision measurement systems requiring stable and accurate laser sources.
  • Defense and Aerospace: Applicable in defense systems and aerospace technologies for communication and targeting.

Frequently Asked Questions

What is the REP1742-DM-B 1742nm laser used for?
The REP1742-DM-B laser is used for Hydrogen Chloride (HCl) detection and is ideal for tunable diode laser absorption spectroscopy (TDLAS) in harsh environments.
What is the wavelength range of the REP1742-DM-B IR laser?
The REP1742-DM-B laser is continuously tunable from 1735 nm to 1770 nm.
What technology does the REP1742-DM-B laser use?
The REP1742-DM-B laser takes advantage of Eblana's proprietary discrete-mode (DM) technology which produces a tunable single frequency output with excellent SMSR.
What is the packaging of the REP1742-DM-B laser?
The REP1742-DM-B laser is offered in a 14-pin Butterfly package, but other packaging options are available upon inquiry.
What is the laser safety classification of the REP1742-DM-B laser?
The REP1742-DM-B laser is classified as a Class 3R Laser Product as defined by International Standard IEC 60825-1, Edition 3.

Got more questions? Use the inquiry form to ask the supplier directly.
