REP1570-DM-B: 1570nm Stabilized Narrow-Linewidth Laser Diode 1560-1573nm

Name: REP1570-DM-B: 1570nm Stabilized Narrow-Linewidth Laser Diode 1560-1573nm
Brand: RPMC Lasers, Inc.
Availability: InStock

Description

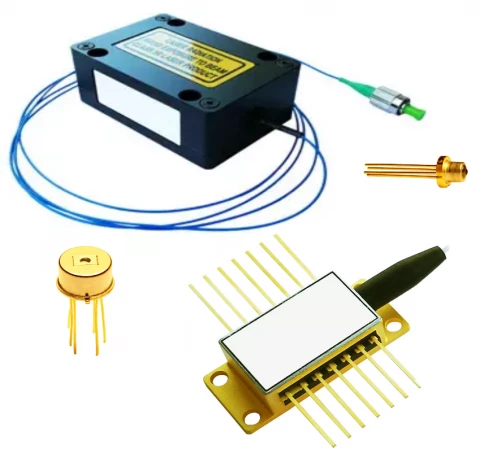

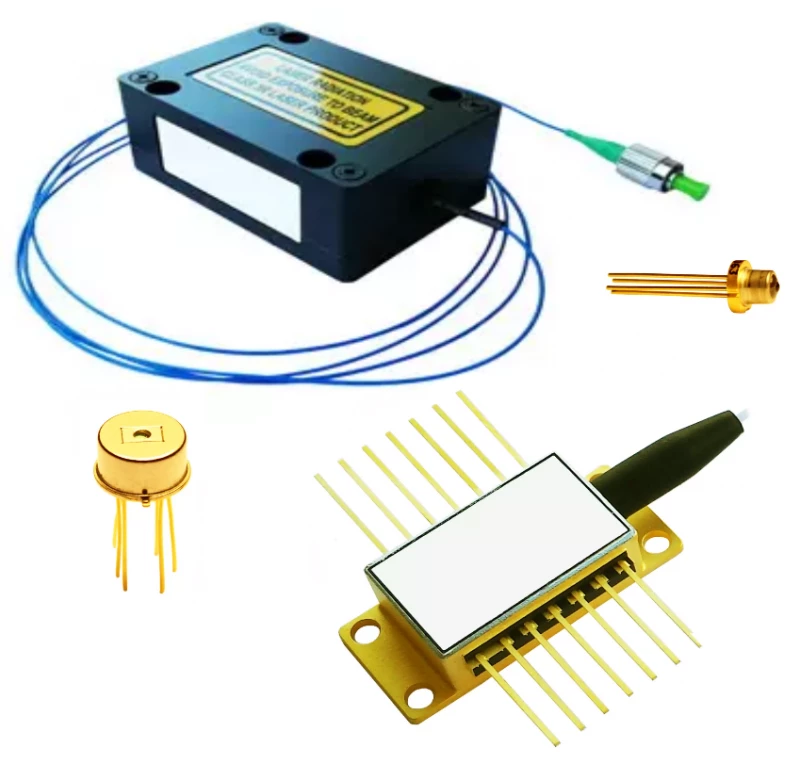

The REP series includes high-performance, tunable, single-frequency (DFB-like) diode lasers and Fabry-Perot laser diodes in wavelengths from 1270nm thru 2350nm, designed to address challenges in Gas Sensing, LIDAR, Spectroscopy, and Telecom. The REP series includes high-power and narrow linewidth options, covering various product ranges at the most popular wavelengths, and providing customizable units with multiple packaging options, including the Fiber coupled 14-pin butterfly, TO39 (w/TEC), and TO56.

Benefits:

Discrete-Mode manufacturing technology provides industry-leading performance and fully scalable, consistent production and integration capability.
Highly customizable units with several package options enable customers to choose the right product for their specific needs.
High-power and narrow linewidth options allow customers to optimize performance for their particular applications.
Various product ranges at the most popular wavelengths provide customers with a wide range of options to choose from.

Specifications

Center Wavelength:	1.57 um
Output Power:	7 mW
Forward Current:	70 - 120 mA
Forward Voltage:	1.3 - 1.6 V
TEC Current:	1.2 A
Reverse Voltage LD:	2.0 V
Reverse Voltage PD:	20 V
Case Temperature:	-20 - 65 °C
Chip Submount Temperature:	0 - 50 °C
Storage Temperature:	-40 - 85 °C

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Integral TEC
PM/SMF Coupled with FC/APC
Built-in Optical Isolator

Applications

Telecommunications: Ideal for use in fiber optic communication systems due to its precise wavelength control and stability.
Spectroscopy: Suitable for high-resolution spectroscopic applications, providing accurate and reliable measurements.
Medical Diagnostics: Can be used in various medical diagnostic equipment for precise laser-based measurements.
Industrial Sensing: Effective in industrial environments for sensing applications, including distance measurement and material analysis.
Research and Development: Useful in R&D settings for developing new laser technologies and applications.
Metrology: Applicable in metrology for precise measurement and calibration tasks.
Environmental Monitoring: Can be employed in environmental monitoring systems to detect and analyze various atmospheric conditions.

Name

Work Email

Organization (recommended)

Country

Your message to supplier

Ships from:

United States

Sold by:

RPMC Lasers, Inc. ✓ Verified Supplier

On FindLight:

since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the REP1570-DM-B laser diode used for?

The REP1570-DM-B laser diode is designed to address challenges in Gas Sensing, LIDAR, Spectroscopy, and Telecom.

What are the benefits of the REP1570-DM-B laser diode?

The benefits of the REP1570-DM-B laser diode include industry-leading performance, fully scalable, consistent production and integration capability, high customizability, high-power and narrow linewidth options, and a wide range of product options.

What are the features of the REP1570-DM-B laser diode?

The features of the REP1570-DM-B laser diode include integral TEC, PM/SMF coupled with FC/APC, and a built-in optical isolator.

What is the maximum forward current for the REP1570-DM-B laser diode?

The maximum forward current for the REP1570-DM-B laser diode is 120 mA.

Is the REP1570-DM-B laser diode safe to use?

The REP1570-DM-B laser diode is a Class 3R Laser Product as defined by International Standard IEC 60825-1, Edition 2. Invisible Laser radiation is emitted from the end of the fiber or connector. Avoid direct eye exposure to the beam. Laser safety labels are not attached to the module due to space limitations but instead are affixed to the outside of the shipping carton.
