Thumbnail of REP1550-DM-B: 1550nm Stabilized Narrow-Linewidth Laser Diode 1540-1560nm photo 1

Description

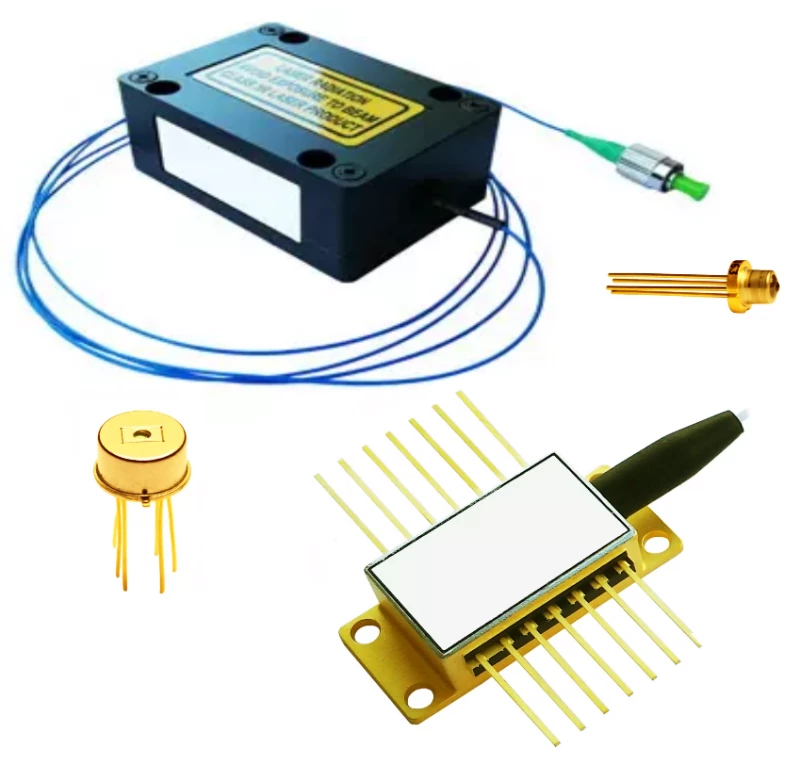

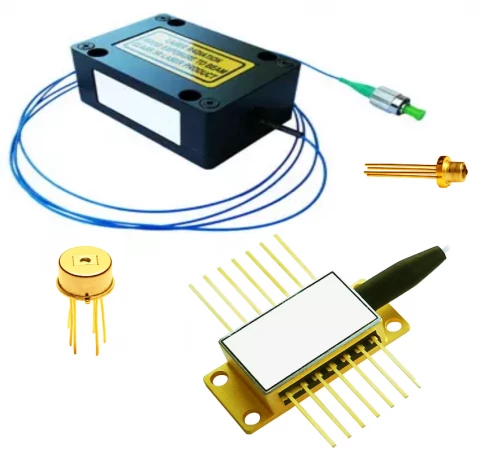

The REP series includes high-performance, tunable, single-frequency (DFB-like) diode lasers and Fabry-Perot laser diodes in wavelengths from 1270nm thru 2350nm, designed to address challenges in Gas Sensing, LIDAR, Spectroscopy, and Telecom. The REP series includes high-power and narrow linewidth options, covering various product ranges at the most popular wavelengths, and providing customizable units with multiple packaging options, including the Fiber coupled 14-pin butterfly, TO39 (w/TEC), and TO56.


Benefits:

  • Discrete-Mode manufacturing technology provides industry-leading performance and fully scalable, consistent production and integration capability.
  • Highly customizable units with several package options enable customers to choose the right product for their specific needs.
  • High-power and narrow linewidth options allow customers to optimize performance for their particular applications.
  • Various product ranges at the most popular wavelengths provide customers with a wide range of options to choose from.

REP1550-DM-B: 1550nm Stabilized Narrow-Linewidth Laser Diode 1540-1560nm

Visit the RPMC Lasers, Inc. Store

Specifications

Center Wavelength: 1.55 um
Output Power: 8 mW
Forward Current: 120 mA
Forward Voltage: 2 V
TEC Current: 1.2 A
Reverse Voltage LD: 2 V
Reverse Voltage PD: 20 V
Case Temperature: -20 to 65 °C
Chip Submount Temperature: 0 to 50 °C
Storage Temperature: -40 to 85 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Integral TEC
  • PM/SMF Coupled with FC/APC
  • Built-in Optical Isolator

Applications

  • Telecommunications: Ideal for use in fiber optic communication systems due to its precise wavelength control and stability.
  • Spectroscopy: Suitable for high-resolution spectroscopic applications, providing accurate and reliable measurements.
  • Metrology: Used in precision measurement systems where stable and narrow linewidth lasers are required.
  • Research and Development: Perfect for R&D environments that require tunable and stable laser sources.
  • Environmental Monitoring: Can be used in systems designed to monitor atmospheric gases and pollutants.
  • Medical Diagnostics: Applicable in medical equipment for diagnostic purposes, benefiting from its precision and reliability.
  • Industrial Applications: Useful in various industrial processes that require precise laser sources.

Frequently Asked Questions

What is the REP1550-DM-B laser diode used for?
The REP1550-DM-B laser diode is designed to address challenges in Gas Sensing, LIDAR, Spectroscopy, and Telecom.
What are the benefits of the REP1550-DM-B laser diode?
The benefits of the REP1550-DM-B laser diode include industry-leading performance, fully scalable and consistent production and integration capability, highly customizable units with several package options, high-power and narrow linewidth options, and various product ranges at the most popular wavelengths.
What are the features of the REP1550-DM-B laser diode?
The features of the REP1550-DM-B laser diode include integral TEC, PM/SMF coupled with FC/APC, built-in optical isolator, and a 14-pin butterfly package.
What is the maximum forward current for the REP1550-DM-B laser diode?
The maximum forward current for the REP1550-DM-B laser diode is 120 mA.
Is the REP1550-DM-B laser diode safe to use?
The REP1550-DM-B laser diode is a Class 3R Laser Product as defined by International Standard IEC 60825-1, Edition 3. Invisible Laser radiation is emitted from the end of the fiber or connector. Avoid direct eye exposure to the beam.

Got more questions? Use the inquiry form to ask the supplier directly.
