REP1392-DM-B: Stabilized Narrow-Linewidth Laser Diode 1378-1400nm

Name: REP1392-DM-B: Stabilized Narrow-Linewidth Laser Diode 1378-1400nm
Brand: RPMC Lasers, Inc.
Availability: InStock

Description

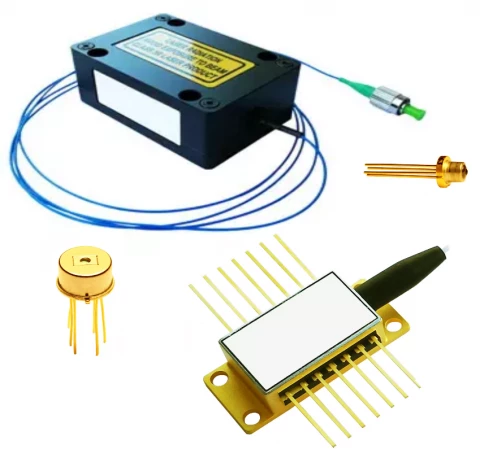

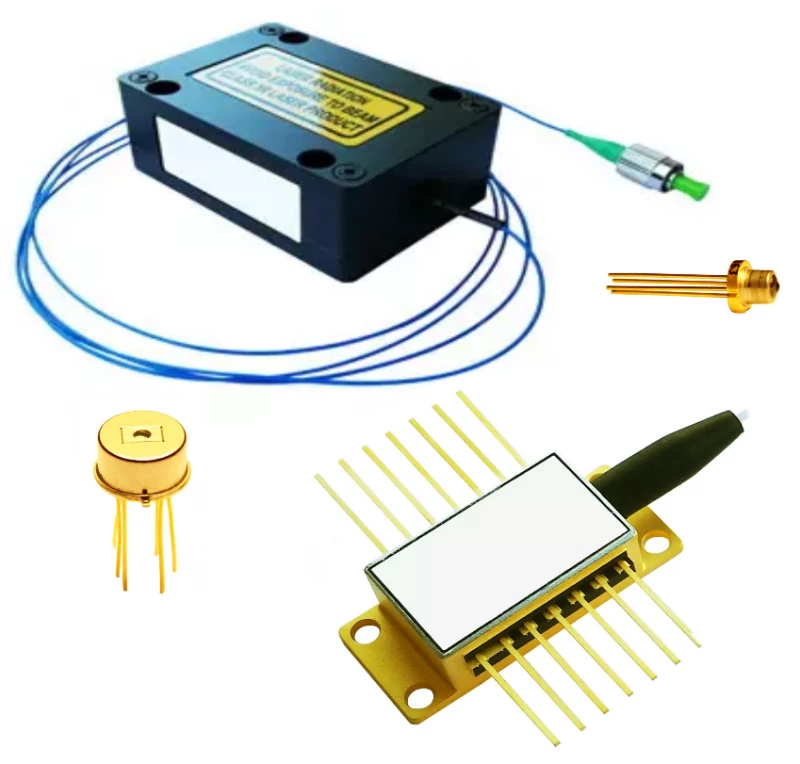

The REP series includes high-performance, tunable, single-frequency (DFB-like) diode lasers and Fabry-Perot laser diodes in wavelengths from 1270nm thru 2350nm, designed to address challenges in Gas Sensing, LIDAR, Spectroscopy, and Telecom. The REP series includes high-power and narrow linewidth options, covering various product ranges at the most popular wavelengths and providing customizable units with multiple packaging options, including the Fiber coupled 14-pin butterfly, TO39 (w/TEC), and TO56.

Benefits:

Discrete-Mode manufacturing technology provides industry-leading performance and fully scalable, consistent production and integration capability.

Highly customizable units with several package options enable customers to choose the right product for their specific needs.

High-power and narrow linewidth options allow customers to optimize performance for their particular applications.

Various product ranges at the most popular wavelengths provide customers with a wide range of options to choose from.

Specifications

Center Wavelength:	1.392 um
Output Power:	8 mW
Forward Current:	120 mA
Forward Voltage:	2 V
TEC Current:	1.2 A
Reverse Voltage LD:	2 V
Reverse Voltage PD:	20 V
Case Temperature:	-20 to 65 °C
Chip Submount Temperature:	0 to 50 °C
Storage Temperature:	-40 to 85 °C

Download Data Sheet

Features

Integral TEC

PM/SMF Coupled with FC/APC

Built-in Optical Isolator

Applications

H2O detection

Name

Work Email

Organization (recommended)

Country

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

RPMC Lasers, Inc.

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the REP1392-DM-B 1392nm laser used for?

The REP1392-DM-B laser is used for water vapor (H2O) detection and is ideal for tunable diode laser absorption spectroscopy (TDLAS), providing a low maintenance solution for real-time trace gas sensing (ppm or ppb levels) in harsh environments.

What is the wavelength range of the REP1392-DM-B laser?

The REP1392-DM-B laser is continuously tunable from 1378 nm to 1400 nm.

What technology does the REP1392-DM-B laser use?

The REP1392-DM-B laser takes advantage of Eblana's proprietary discrete-mode (DM) technology which produces a tunable single frequency output with excellent SMSR, similar to traditional DFB lasers without the mode hops inherent to most DFBs.

What is the packaging of the REP1392-DM-B 1392nm laser?

The REP1392-DM-B product series is offered in a 14-pin Butterfly package. Variations may be requested.

What is the laser safety classification of the REP1392-DM-B laser?

The REP1392-DM-B laser is a Class 3R Laser Product as defined by International Standard IEC 60825-1, Edition 3.
