Description
Introducing the Model 1101-XX-CW-YYYY, a cutting-edge continuous wave, room temperature, high power quantum cascade laser (QCL) system. This advanced laser system is designed for optimal performance in both mid-wave and long-wave infrared spectrums, providing exceptional optical power outputs exceeding 4.0 W. With a wavelength range spanning from 3.7 µm to over 12 µm, this system is engineered to operate efficiently at room temperature, eliminating the need for external chillers and simplifying installation and operation.

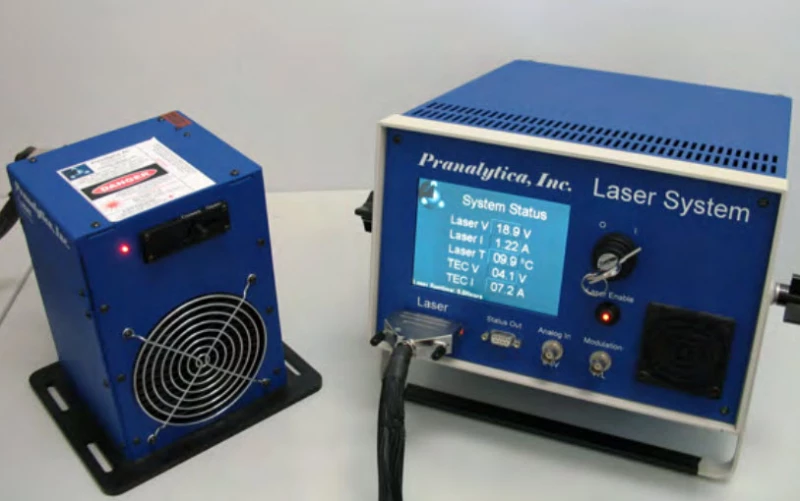

The Model 1101-XX-CW-YYYY is a complete package, featuring an air-cooled laser head and a matched power supply, ready for immediate use upon delivery. The laser's core components, including the quantum cascade laser, thermoelectric cooler, and collimating optics, are housed within a hermetically sealed package. This design ensures reliable performance even in challenging environmental conditions, providing users with peace of mind and consistent results.
At the heart of this innovation is Pranalytica’s proprietary technology, including patented quantum cascade laser structure designs. These innovations enable continuous wave high power and high wall plug efficiency operation at room temperature. The system also benefits from Pranalytica’s patented composite submount materials, which enhance thermal management, and high reflectivity facet coating technology, ensuring high reliability even at elevated continuous wave power levels.
The Model 1101-XX-CW-YYYY is available in various power output configurations to meet diverse application needs. Customers can select from a range of center wavelengths and corresponding power outputs, such as 4.0 µm with power options from 0.5 W to 2.5 W, 4.6 µm with options up to 4.0 W, 7.1 µm up to 1.5 W, and 9.5 µm up to 2.0 W. This flexibility allows users to tailor the system to their specific requirements, ensuring optimal performance for their particular applications.
CW Room Temperature High Power QCL System at 7.1um
Specifications |
|
|---|---|
| Center Wavelength: | 7.1 um |
| Output Power: | 1500 mW |
| Wavelength Range: | um |
Features
- High Power Continuous Wave Operation: The Model 1101-XX-CW-YYYY delivers up to > 4.0 W of continuous wave optical power, operating at room temperature without the need for external chillers.
- Broad Wavelength Range: This laser system supports wavelengths from 3.7 µm to >12 µm, providing versatility for various applications.
- Air-Cooled System: The laser head is air-cooled, eliminating the need for additional cooling equipment and simplifying installation and operation.
- Complete System Package: Includes the laser head and a matched power supply, ready for immediate use at the customer’s location.
- Hermetically Sealed Package: The laser, thermoelectric cooler, and collimating optics are housed in a hermetically sealed package for reliable operation in real-world environments.
- Patented Laser Structure: Features Pranalytica’s unique patented quantum cascade laser structure designs for high power and high wall plug efficiency at room temperature.
Applications
- Infrared Countermeasures: High-power mid-IR laser for defense and security systems
- Spectroscopy: Precise mid-IR and long-IR laser source for gas analysis and chemical detection
- Free-Space Optical Communication: Reliable high-power source for mid-IR optical links
- Industrial & Scientific Research: Ideal for material processing, thermal imaging, and laboratory experiments
Frequently Asked Questions
The Model 1101-XX-CW-YYYY laser system provides wavelengths from 3.7 µm to >12 µm.
The Model 1101-XX-CW-YYYY laser system provides up to >4.0 W of continuous wave, room temperature (CW/RT) optical power depending on wavelengths.
The size of the Quantum cascade laser (laser head) is 147 mm (W), 214 mm (H), 140 mm (D) and the weight is 1.9 kg.
The output beam divergence of the Quantum cascade laser (laser head) is less than 5 mradians.
The Model 1101-XX-CW-YYYY laser system can be modulated at frequencies up to 100 kHz by applying TTL modulation to input connector (front panel).
