Description

Connet's VENUS series 808nm Multi-mode Pump Laser Source leverages Connet's proprietary AWL (Active Wavelength Locking) technology to stabilize the peak wavelength within the range of 808 +/- 3nm, even when the power is reduced to half. This advanced technology significantly enhances the stability and efficiency of the laser source.

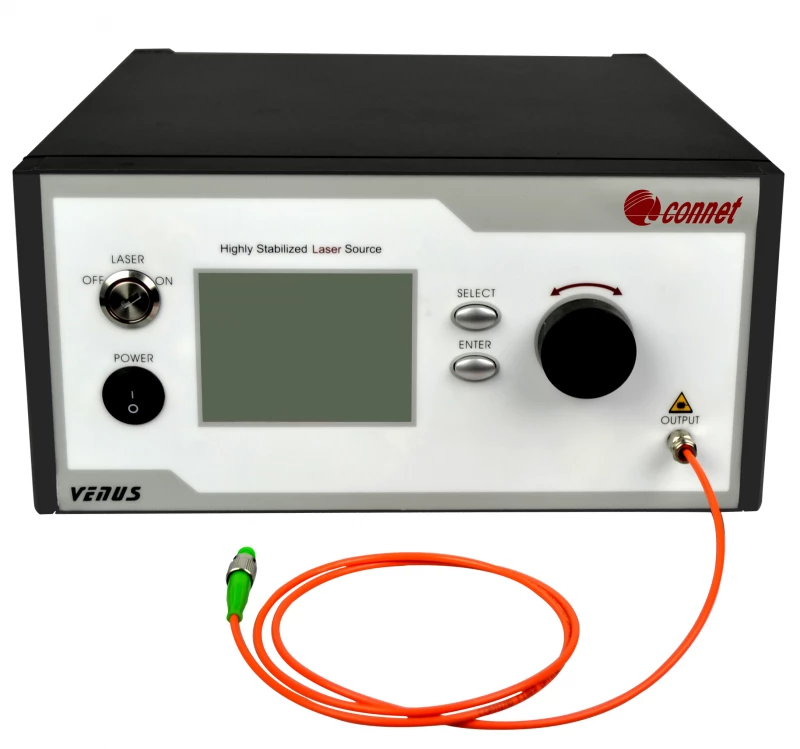

The VENUS 808nm pump laser is a highly integrated system source with a benchtop design featuring a high-definition LCD for synchronized display of current and voltage. It offers continuously adjustable output power, making it ideal for scientific research and manufacturing testing. Additionally, Connet Laser provides compact module packaging for seamless system integration.

Connet VENUS 808nm High Stability Multi-mode Pump Laser Source

Specifications

Center Wavelength: 0.808 um
Output Power: 0.05 mW
Peak Operating Wavelength: 811 nm
Spectral Width (FWHM): 0.5 nm
Stability Of Output Power: ±0.5%
Output Power Tunable Range: 0 to 100%
Output Power Tunable Mode: Coarse / Fine
Output Fiber Type: 400μm/0.22
Length Of Output Fiber: >1 m
Output Fiber Connector: FC/APC (other options available)
Operating Voltage: 100-240 V AC
Power Consumption: 200 W
Operating Temperature: 0 to +30 ℃
Storage Temperature: -40 to +85 ℃
Dimensions: 340(L) x 240(W) x 100(H) mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Output Power
  • Active Wavelength Locking (AWL) Technology
  • High Stability and Reliability
  • LCD Display
  • High Precision ACC and ATC Control Circuit

Applications

  • Neodymium-Doped Fiber Pump Source
  • Solid-State Laser Pump Source
  • Spectral Analysis
  • Test and Measurement
  • Other Laboratory Applications

Frequently Asked Questions

What are the applications of the Connet VENUS series 808nm multi-mode pump laser source?
The applications include neodymium-doped fiber pump source, solid-state laser pump source, spectral analysis, test and measurement, and other lab applications.
What is the output fiber type and length of the Connet VENUS series 808nm multi-mode pump laser source?
The output fiber type is 400μm/0.22 and the output fiber length is greater than 1m.
What is the output power range of the Connet VENUS series 808nm multi-mode pump laser source?
The output power range is from 1W to 50W.
What is the power consumption of the Connet VENUS series 808nm multi-mode pump laser source?
The power consumption ranges from 3W to 200W.
What is the wavelength range of the Connet VENUS series 808nm multi-mode pump laser source?
The peak wavelength is stabilized in the range of 808 +/- 3nm.

Got more questions? Use the inquiry form to ask the supplier directly.
