Description

The SDL-488-LM-XXXT is a compact and reliable blue diode laser, producing high-quality laser output at 488nm wavelength. With single mode LD mode and near TEM00 beam spot outline, it provides stable and accurate performance for a wide range of applications in research, industry, and medical fields. The laser also features a TTL modulation of up to 30KHz, and is available in fiber-coupled and line output versions, with longer operation period output power stability and better power stability available on request.

SDL-488-LM-XXXT: 488nm Blue Diode Laser (1-50mW)

Visit the Shanghai Dream Lasers Technology Co., Ltd. Store

Specifications

Center Wavelength: 0.488 um
Output Power: 1 mW
LD Mode: Single Mode
Operation Mode: CW
Power Stability: < 5 %
Beam Divergence (1/e2, Full Angle): ~ 1.5 mrad
Beam Diameter At The Aperture: ~4.0 mm
Beam Spot Outline: Near TEM00
Warm-up Time: < 10 min
Model: SDL-488-LM-XXXT
Polarization Ratio: > 10:1
Operating Temperature: 10 - 35 ℃

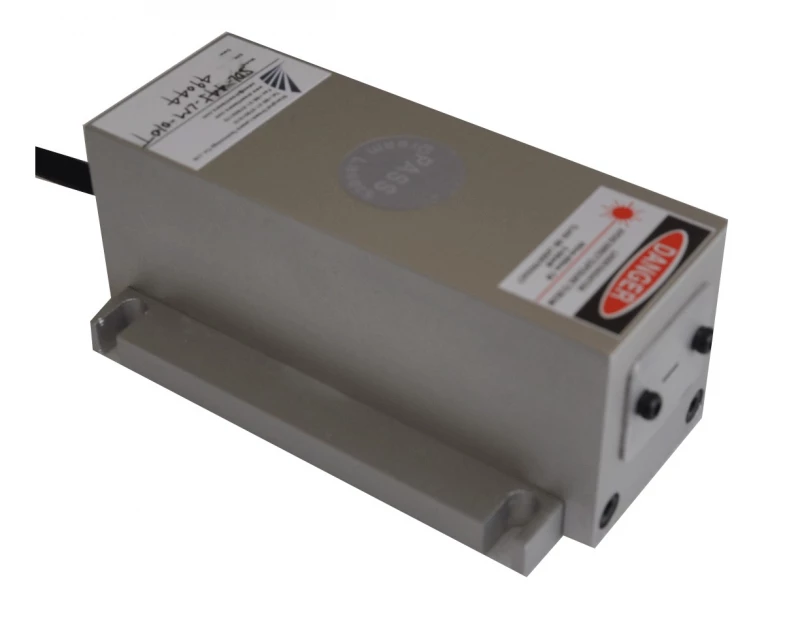

Laser Head: SDL-LH-500

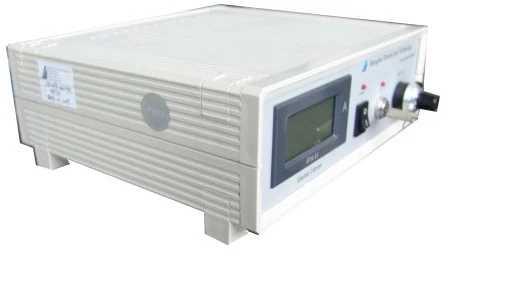

Power Supply: SDL-PS-400
Input Voltage: 90-265VAC 50/60Hz
Modulation: TTL Modulation >5KHz
Expect Life Time: 10,000 hours
Warranty Time: 1 year
Pointing Stability: < 0.05 mrad

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 4 or 8 hours Longer operation period output power stability are available on request.
  • Better (<3%,<1%) power stability are available on request.
  • Other version power supply are available on request: OEM AC or DC input version: SDL-PS-900: 146x76x50mm
  • Analog Modulation >2KHz or higher as option.
  • Up to 30Khz TTL modulation on request.
  • Line output version are available on request.
  • Fiber coupled version are available on request.
  • Longer warranty on request.
  • Other custom-made design is available, please contact us for details.

Applications

  • Flow cytometry and cell sorting in life sciences and medical research
  • Confocal microscopy and imaging for biological and materials sciences
  • Holography and interferometry for research and engineering applications
  • Laser printing and lithography
  • Industrial alignment and positioning in manufacturing processes
  • Laser spectroscopy and fluorescence microscopy

Frequently Asked Questions

What is the wavelength of the SDL-488-LM-XXXT blue diode laser?
The SDL-488-LM-XXXT blue diode laser has a wavelength of 488nm.
What is the output power range of the SDL-488-LM-XXXT blue diode laser?
The SDL-488-LM-XXXT blue diode laser has an output power range of 1-50mW.
What is the modulation capability of the SDL-488-LM-XXXT blue diode laser?
The SDL-488-LM-XXXT blue diode laser has TTL modulation of up to 30KHz.
Are there any other versions or options available for the SDL-488-LM-XXXT blue diode laser?
Yes, there are other versions available, such as the fiber-coupled and line output versions. There are also options for longer operation period output power stability, better power stability, and different power supply versions.
What are some applications of the SDL-488-LM-XXXT blue diode laser?
The SDL-488-LM-XXXT blue diode laser can be used in flow cytometry, confocal microscopy, holography, laser printing, industrial alignment, laser spectroscopy, and more.

Got more questions? Use the inquiry form to ask the supplier directly.
