Description

The SLED Butterfly Device, model SGSLD-1XX0-XX-XX-XX-14, is a cutting-edge product. This device is meticulously designed to deliver exceptional performance in various optical applications. It features a robust construction that ensures reliability and longevity, making it an ideal choice for professionals seeking high-quality optical solutions.

At the core of the SLED Butterfly Device is its high power output capability, which is complemented by a metal-coupled and hermetic package. This design not only enhances the device's durability but also ensures optimal performance under various environmental conditions. The inclusion of a thermoelectric cooler (TEC) further aids in maintaining the device's operational stability, providing users with consistent and reliable results.

Another standout feature of this device is its compatibility with both polarization-maintaining and single-mode optical fibers. This flexibility allows users to integrate the device into a wide range of systems with ease. The 14-pin butterfly package design ensures that the device is compact and easy to install, making it a convenient choice for various applications in the optical field.

Overall, the SLED Butterfly Device is a sophisticated and reliable solution for professionals in need of high-performance optical components. Its advanced design and robust construction make it a valuable addition to any optical system, ensuring superior performance and long-term reliability.

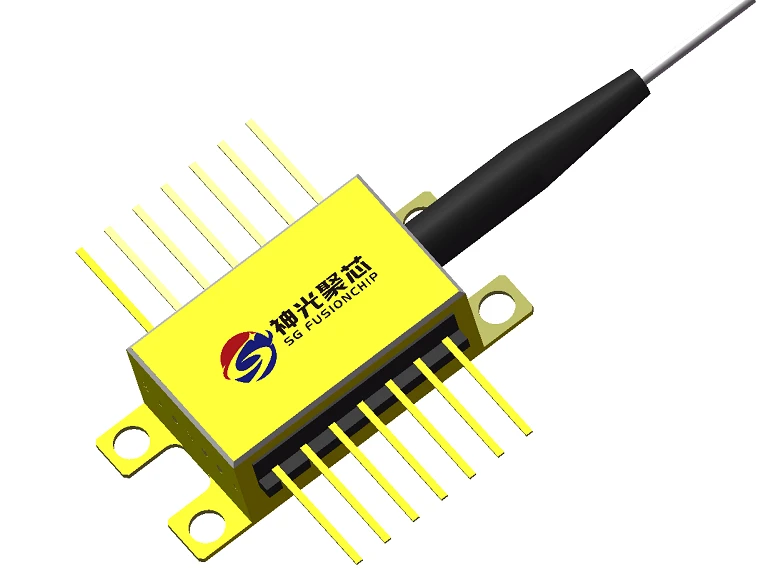

1310 and 1550nm DFB SLED Butterfly Device

Visit the Shanghai Aoshi Control Technology Co.Ltd Store

Specifications

Center Wavelength: 1.55 um
Output Power: 10 mW
Forward Voltage: 2.5 V
Center Wavelength: 1290 - 1575 nm
Bandwidth: 30 - 50 nm
Spectral Ripple: 1 dB
Polarization Extinction Ratio: 15 dB
Thermistor B-Value: 3950 K
Operating Case Temperature: -20 - 70 °C
Storage Temperature: -55 - 85 °C
Thermoelectric Cooler Voltage: 3.0 V
Thermoelectric Cooler Current: 1.5 A
Lead Solder Temperature: 260 °C
Lead Soldering Time: 10 s

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Power Output: Delivers robust performance suitable for demanding applications.
  • Metal-Coupled and Hermetic Package: Ensures durability and reliability in various environments.
  • Integrated TEC: Features a Thermoelectric Cooler for temperature stability.
  • Fiber Options: Available with polarization-maintaining or single-mode optical fiber.
  • 14-Pin Butterfly Package: Standardized packaging for easy integration.

Absolute Maximum Ratings

  • Operating Case Temperature: -20 to 70 °C
  • Storage Temperature: -55 to 85 °C
  • Reverse Voltage: Maximum 3 V
  • Forward Current: Maximum 300 mA
  • Thermoelectric Cooler Voltage: Maximum 3.0 V
  • Thermoelectric Cooler Current: Maximum 1.5 A
  • Lead Solder Temperature: Maximum 260 °C
  • Lead Soldering Time: Maximum 10 seconds

Optical/Electrical Characteristics (T=25℃, unless otherwise stated)

  • Optical Output Power: 1 to 10 mW
  • Forward Voltage: Up to 2.5 V
  • Center Wavelength: 1290 to 1575 nm
  • Bandwidth (FWHM): 30 to 50 nm
  • Spectral Ripple: Maximum 1 dB
  • Polarization Extinction Ratio (PER): Up to 15 dB

Applications

  • Fiber-Optic Gyroscope: Ideal for precision navigation systems.
  • Optic Test: Suitable for various optical testing applications.
  • Optical Fiber Transmission System: Enhances data transmission efficiency.
  • Fiber-Optic Sensor: Supports advanced sensing technologies.
  • Optical Coherence Tomography (OCT): Perfect for medical imaging applications.

Frequently Asked Questions

What is the SG FusionChip SLED Butterfly Device used for?
The SG FusionChip SLED Butterfly Device is used in applications such as fiber-optic gyroscopes, optic tests, optical fiber transmission systems, fiber-optic sensors, and optical coherence tomography (OCT).
What are the key features of the SGSLD-1XX0-XX-XX--XX-14?
Key features include high power output, a metal-coupled and hermetic package, a built-in thermoelectric cooler (TEC), and the option of polarization-maintaining or single-mode optical fiber, all within a 14-pin butterfly package.
What is the operating temperature range for the SGSLD-1XX0-XX-XX--XX-14?
The operating case temperature range for the device is from -20°C to 70°C.
What is the maximum optical output power of the device?
The maximum optical output power is 10 mW when operating under continuous wave (CW) conditions at 25°C.
What precautions should be taken when handling the SGSLD-1XX0-XX-XX--XX-14?
The device is ESD-sensitive, so proper electrostatic discharge (ESD) handling procedures should be followed to prevent damage.
What are the wavelength options available for the SGSLD-1XX0-XX-XX--XX-14?
The device offers center wavelengths ranging from 1290 nm to 1575 nm, with specific options like 1310 nm and 1550 nm for low polarization rate, and 1330 nm and 1575 nm for high polarization rate.
What is the maximum forward current and voltage for the SGSLD-1XX0-XX-XX--XX-14?
The maximum forward current is 300 mA, and the forward voltage should not exceed 2.5 V under continuous wave conditions at 25°C.

Got more questions? Use the inquiry form to ask the supplier directly.
