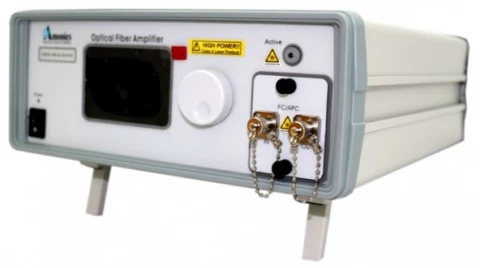

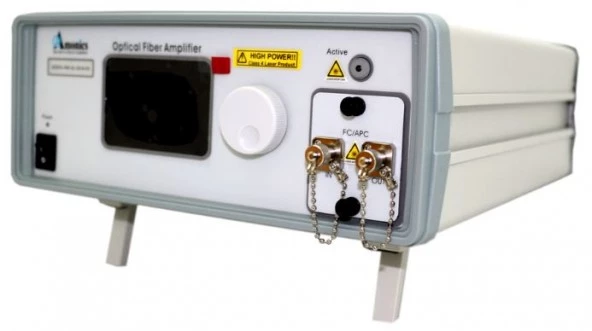

Extended L-Band DWDM EDFA - AEDFA-L-DWDM
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2014
Description
L-Band and Extended L-Band DWDM Erbium-Doped Fiber Amplifiers (EDFA) are part of Amonics' specialized product lineup. These amplifiers are crafted under a HKQAA ISO 9001 certified quality management system, ensuring superior quality and reliability. It is important to note that the ISO 9001:2008 certification is applicable exclusively to the Hong Kong production site.
The L-band and Extended L-band DWDM EDFAs are engineered with high-power pump lasers and high-stability pump combiners, making them renowned for their robustness in high power boosting. These EDFAs deliver high output power and high gain with very low noise levels, and they can be tailored to suit a wide range of input signal levels. This flexibility makes them ideal for various demanding applications, providing reliable performance even in challenging environments.
These EDFAs are designed as turnkey microprocessor-controlled devices, featuring intuitive alarms and status indicators for ease of use. They include an integrated RS232 computer interface, which facilitates easy control, diagnostic functions, and data acquisition. Available in both benchtop and rackmount casings, these amplifiers offer versatile installation options to meet diverse operational needs.
Extended L-Band DWDM EDFA - AEDFA-L-DWDM
Specifications |
|
|---|---|
| Amplifier Type: | EDFA - Erbium-Doped Fiber Amplifier |
| Wavelength Range: | 1570 – 1603 nm |
| Max Output Power: | 22 dBm |
| Nominal Gain: | 30 dB |
| Output Fiber Type: | SMF-28 |
Features
- Turnkey Device: Simplifies operation with a user-friendly design.
- RS232/Ethernet Computer Interface: Facilitates easy control, diagnostics, and data acquisition.
- High Output Power: Ensures robust performance for demanding applications.
- High Gain: Offers enhanced signal amplification with options for customization.
- Low Noise Figure: Maintains signal clarity and quality.
- Highly Reliable and Durable: Built for long-term use with high-stability components.
- Mechanical Safety Control: Includes a key-lock switch and BNC interlock key for enhanced safety.
- Optical Power Monitoring: Provides real-time feedback on output and optional input power.
- Remote Control Port: Features a DB-9 female port with LabView control software and optional RJ-45 (TCP/IP Ethernet).
Applications
- DWDM Applications: Enhances optical signal strength across dense wavelength division multiplexing systems
- SONET/SDH Systems: Supports reliable amplification in SONET and SDH networks
- Optical Communication Networks: Ideal for boosting signals over long-haul and metro networks
- Fiber Optic Sensing: Suitable for distributed sensing requiring high-gain and low-noise performance
Frequently Asked Questions
Amonics' Extended L-Band DWDM EDFA is a high-power, high-gain, low-noise amplifier that is ideal for various demanding applications, such as DWDM applications, SONET/SDH systems, optical communication, fiber optic sensing, and scientific applications.
The key features of Amonics' Extended L-Band DWDM EDFA include turnkey device, RS232/Ethernet computer interface, high output power, high gain, low noise figure, and high reliability and durability.
The applications of Amonics' Extended L-Band DWDM EDFA include DWDM applications, SONET/SDH systems, optical communication, fiber optic sensing, booster, in-line & pre-amp, and scientific applications.
The specifications of Amonics' Extended L-Band DWDM EDFA include gain flattening filtering, APC or AGC control mode, input power monitoring, bench-top or 19” rack-mount housing, operation temperature of 0 to +40 oC, storage temperature of -10 to +70 oC, power supply of VAC 90 – 240, 47 – 63Hz, and dimensions of benchtop: 260(W) x 330(D) x 120(H) and 1U rackmount: 485(W) x 360(D) x 45(H).
The product code for Amonics' Extended L-Band DWDM EDFA is AEDFA-L-DWDM.
