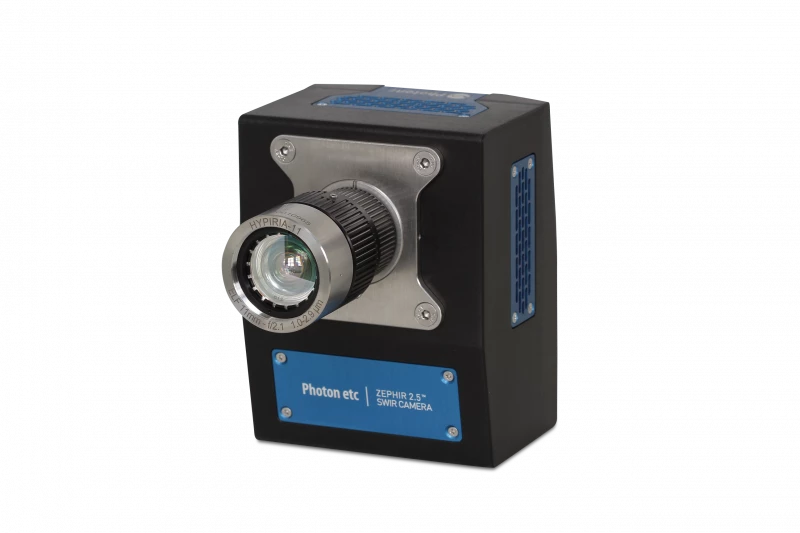

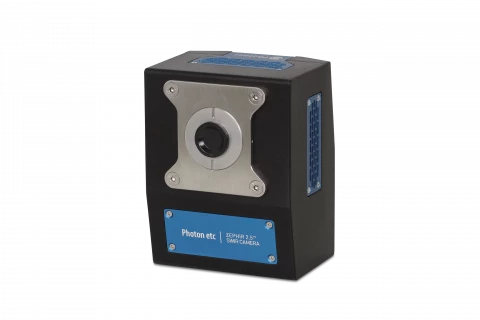

ZEPHIR 2.5 - High Speed, Deep-Cooled, SWIR Imaging 850-2500 nm

Specifications

Camera Type: Industrial, Scientific
Array Type: Mercury Cadmium Telluride (MCT, HgCdTe)
Spectral Band: 0.85 – 2.5 um
# Pixels (Height): 320
# Pixels (Width): 256
Pixel Pitch: 30 um
Array Cooling: Cooled
Quantum Efficiency: 85 %
Cooling: 4 stages TEC
Operating Temperature: -80 °C
Frame Rate: 340 FPS
Dark Current: 20 Mē/px/s
Readout Noise: 150 (high gain) ē
Digitization: 14 bits
Computer Interface: CameraLink™ or USB 3.0
Physical Dimensions: 169 x 130 x 97.25 mm
Weight: 2.9 kg
Document icon Download Data Sheet Download icon

Features

The SWIR camera hardware includes coded region-of-interest (ROI), which allows the operator to select between a full-frame rate of 340 frames per second (fps) and a windowed rate of up to 3000 fps.


Additionally, it comes with Photon etc’s PHySpec camera control software or an extensive software development kit (SDK) for developing your own custom software.

Applications

The ZEPHIR 2.5 SWIR camera is ideal for :



  • quality control,

  • industrial sorting,

  • sciences,

  • astronomy, and

  • spectroscopy.
